Adeo Multiformat Tab White / Grey 16:9/2.0:1/2.35:1/2.40:1 Custom Size

SKU: PRMOMULTIFORMA-169

64 999,-78 997,- inkl. mva

Send meg en epost når denne er på lager

Produktnr: PRMOMULTIFORMA-169 Kategori: Brand: ADEO

Din konfigurasjon

Bestillingsvare

Send meg en epost når denne er på lager

Beskrivelse

NB! Husk at lerreter som produseres på ordre er regnet som en tilvirkningsvare og har ingen angrerett.

Adeos lerreter produseres på fabrikken i Polen etter din ønskede konfigurasjon. Produksjonstid er rundt 1 uke, og normalt er lerretet klar for enten henting hos oss eller sending til deg innen 2 uker.

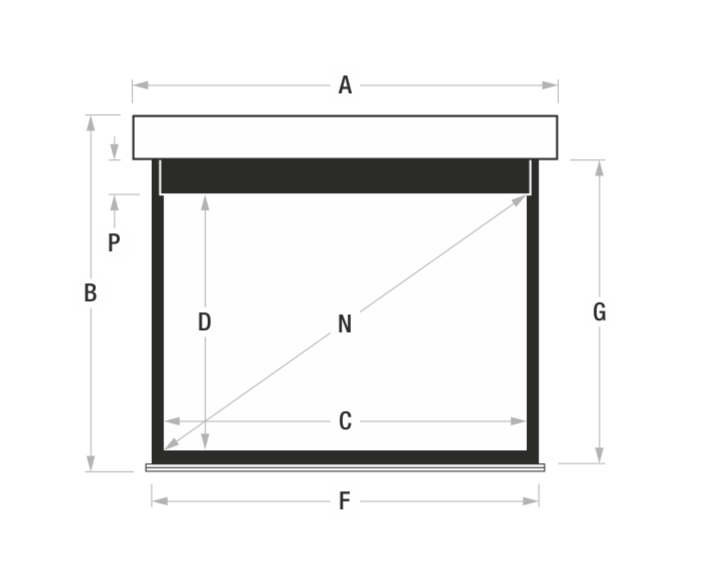

Hvis du ønsker en custom størrelse velger du alltid størrelsen rett over den standard størrelsen du ønsker, for eksempel 279cm om du ønsker en custom bildebredde på 265cm. Din ønskede størrelse angir du på slutten av denne konfiguratoren i ønsket bildebredde i cm. Husk at maskering (7cm x 2) og selve kassetten kommer i tillegg, som på denne modellen utgjør 46cm. En bildebredde på f.eks. 265cm har en total bredde på 311cm.

Multiformat-lerretet inkluderer en ILT4 remote-unit fra Somfy som lar deg styre lerretets ulike formater. Leveres kun med hvit kassett, motor på høyre side (sett forfra).

Informasjon fra produsent:

Characteristics:

Included accessories

  • Kit with wall -or ceiling- quick mount brackets
  • Control unit ILT4 Somfy
  • Infrared receiver
  • 8 channel infrared transmitter

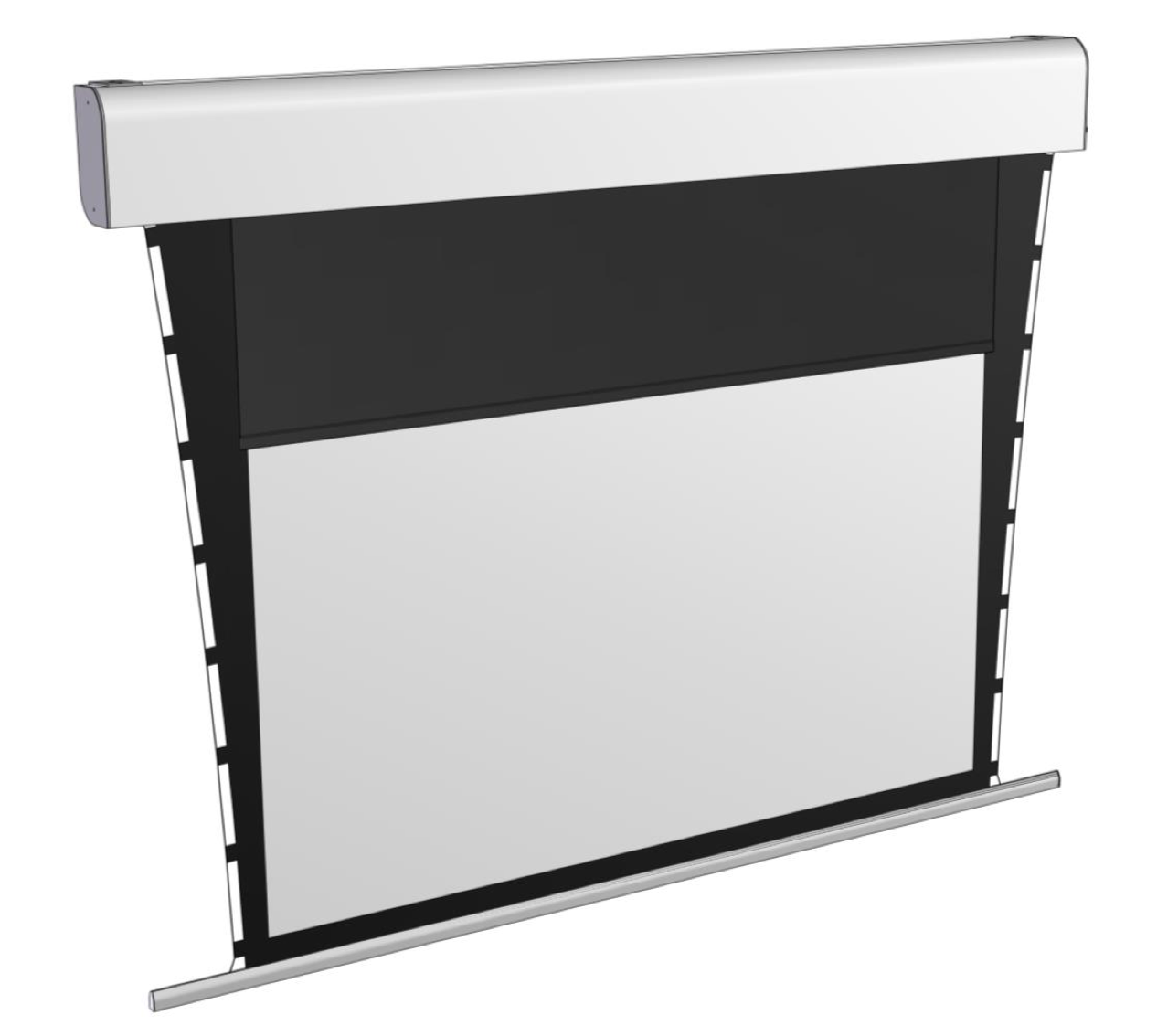

Multiformat was especially created by Adeo for real connoisseurs of home cinema. This screen is distinguished by the presence of two independent projection surfaces (a top masking surface and a rear projection surface), attached to two rollers: by synchronising them the format of the projection area can be varied, to obtain an image which is always bordered with black edges, enhancing contrast. These are special, non-varnished anti-reflective black edges, with a width of 70 mm (while traditional edges are 30 or 50 mm wide).

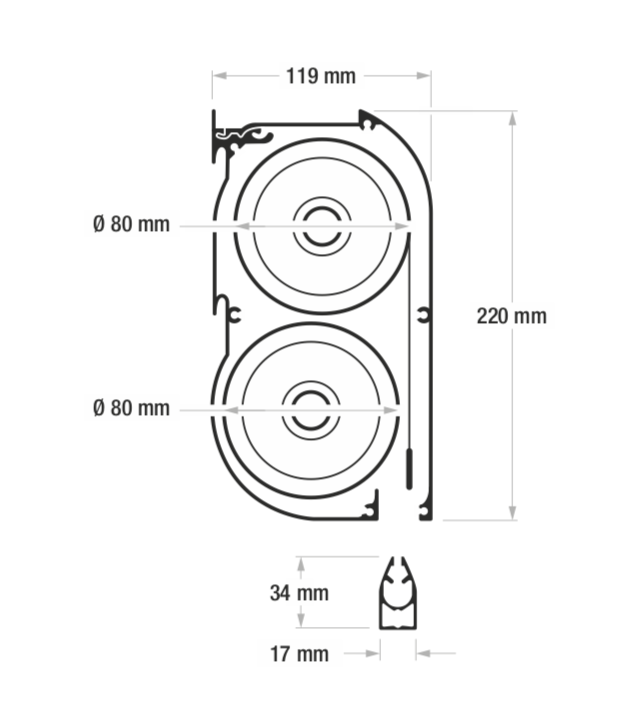

It is important to note that the top surface is directly in contact with the rear surface, thanks to the vertical alignment of the rollers: this avoids the formation of shadows during projection. Planarity is ensured by the front drop of the surface, while the special anchoring to the roller eliminates any risks of horizontal crease marks. A perfect surface is possible at all times, thanks to a dedicated command that unrolls the canvas completely, to facilitate cleaning operations. The winding is through Nice Era Mat radio integrated motors with remote control included.

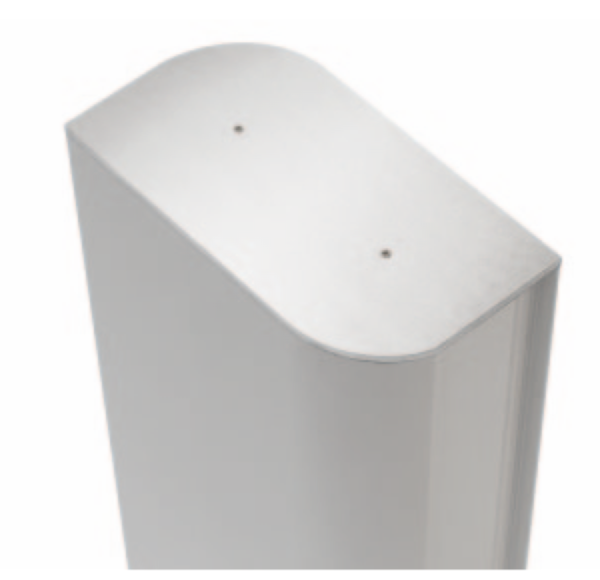

The case is white (RAL 9016), with brushed aluminium lateral ends, which completely mask the screws. The anchoring system is simple and super-quick, for easy installation.

There is a very ample variety of formats to choose from.

For projectors with a 16:9 matrix the following formats are available:

  • 1.78 HDTV 16:9
  • 1.85 Wide
  • 2.0:1 IMAX / Netflix
  • 2.35 Cinemascope 21:9
  • 2.40 Panavision

RATIO MEMORIZATION

Each programming procedure consists of several steps; at the end of each step, the operator has 60 seconds to start the next step; this system is devised to prevent the risk of performing operations other than those desired. Therefore, if the motor does not perform the operation exactly as indicated in the instructions, wait 60 seconds, then exit programming, or cancel the procedure as indicated at specific point, and start the procedure all over again.

Before start the programmation choose the engine you want to program with the number button, 1 – fabric motor, 2 – masking motor.

Do the sequency below for each engine.

MOVEMENT OF FORMAT

The motor’s settings follow an overwriting logic: therefore, once the end stop positions have been memorised they cannot be cancelled, but only overwritten by following the above-mentioned procedure from the start.

page16image479040688page16image479041440page16image479146976page16image479147312page16image479147568

ENGINE 1 – ENGINE 2

ENGINE 1 – ENGINE 2

ENGINE 1

ENGINE 2

page16image478478880

With the Master remote control and the ▲▼ ■keys, bring both screens approximately to the position that you intend to programme (to check the exact size of the format required, we recommend that you project some images of the relevant format), then proceed as follows

page16image478535632 page16image478536736
page16image480782912

Press and release the button PRG, the engine performs 2 movements.

page16image480553824 page16image480569216
page16image480499808

Keep ▲ and ▼ keys simultaneously pressed until the motor performs 2 movements

page16image480512240 page16image480518720
page16image480516240 page16image481149296

Note: at this stage, in order to perform precision adjustments both the motors must be movedexclusively with the ▲▼ keys. The remote control will operate in a stuttering mode. In order toperform millimetric adjustments press the ▲ or ▼ key briefly. To perform longer movements (but still in a stuttering mode) keep the ▲ or ▼ key pressed. Proceed in this manner to position the two canvases exactly where you want to programme them.

page16image481116240 page16image481119760
page16image481116992

Once the required position is reached, keep the ■ key pressed until the motor has finished performing 3 movements.

page16image481160960 page16image481165200
page16image481233872

Press a button (from 1 to 5) the button of the PILOT remote control which you intend to associate to the format, until each motor has finished performing 4 movements.

The required format is now memorized on the Pilot remote control of your choice (1-5) and the programming procedure is concluded.

page16image481207776 page16image481211408

page16image481210400

TO CANCEL THE PROGRAMMING IN COURSE

In order to cancel the procedure in course, simultaneously press ■ and ▼ at any time, until the motor has executed 6 movements.

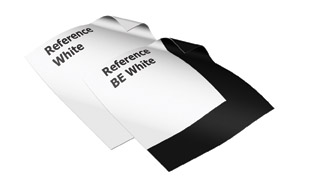

ReferenceWhite
White surface for front projection

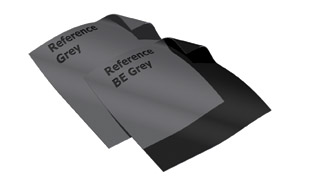

ReferenceGrey
Grey surface for front projection
Part of the new Reference series, this screen material is designed for the most critical applications that require exceptional color accuracy both in Home Theater as well as commercial and professional studio applications. It is completely absent from hot-spot effects and it’s critical color accuracy is maintained at all viewing angles. Recommended for controlled light environments.
Gain: 1.0
This Reference screen material is designed to lower the black levels of the fixed-matrix LCD, DLP and D-ILA/SXRD video-projectors, while maintaining it’s critical color accuracy at all viewing angles. It is particularly well suited for the rooms with bright walls and some ambient light.
Gain: 0.9
