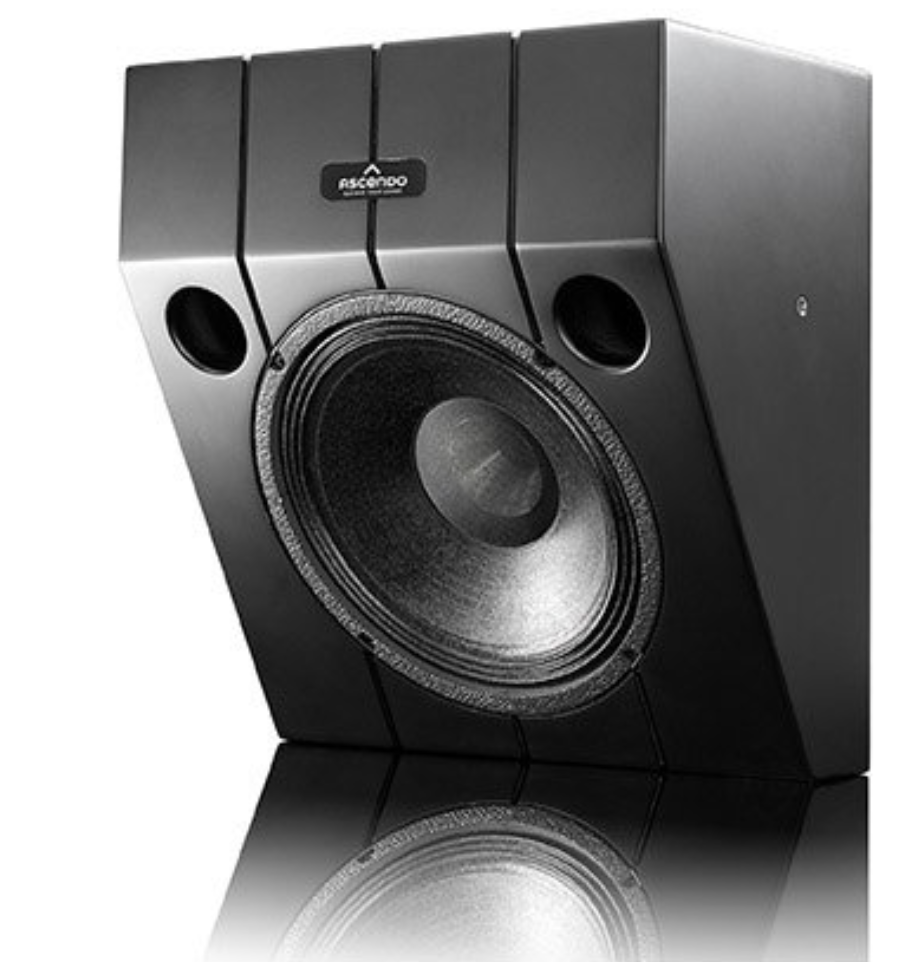

Ascendo Immersive Audio The10 Passive Wedge 30

Beskrivelse

Bruksanvisning >>

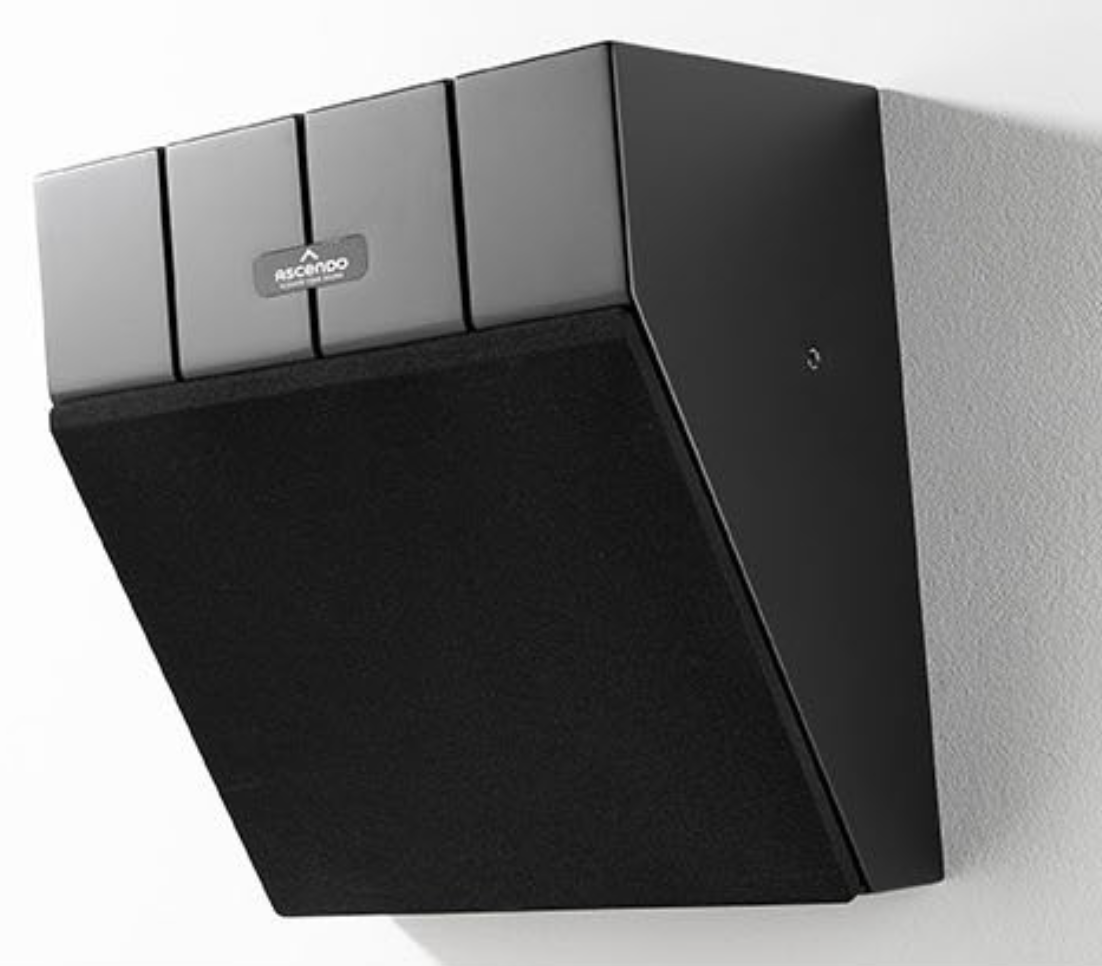

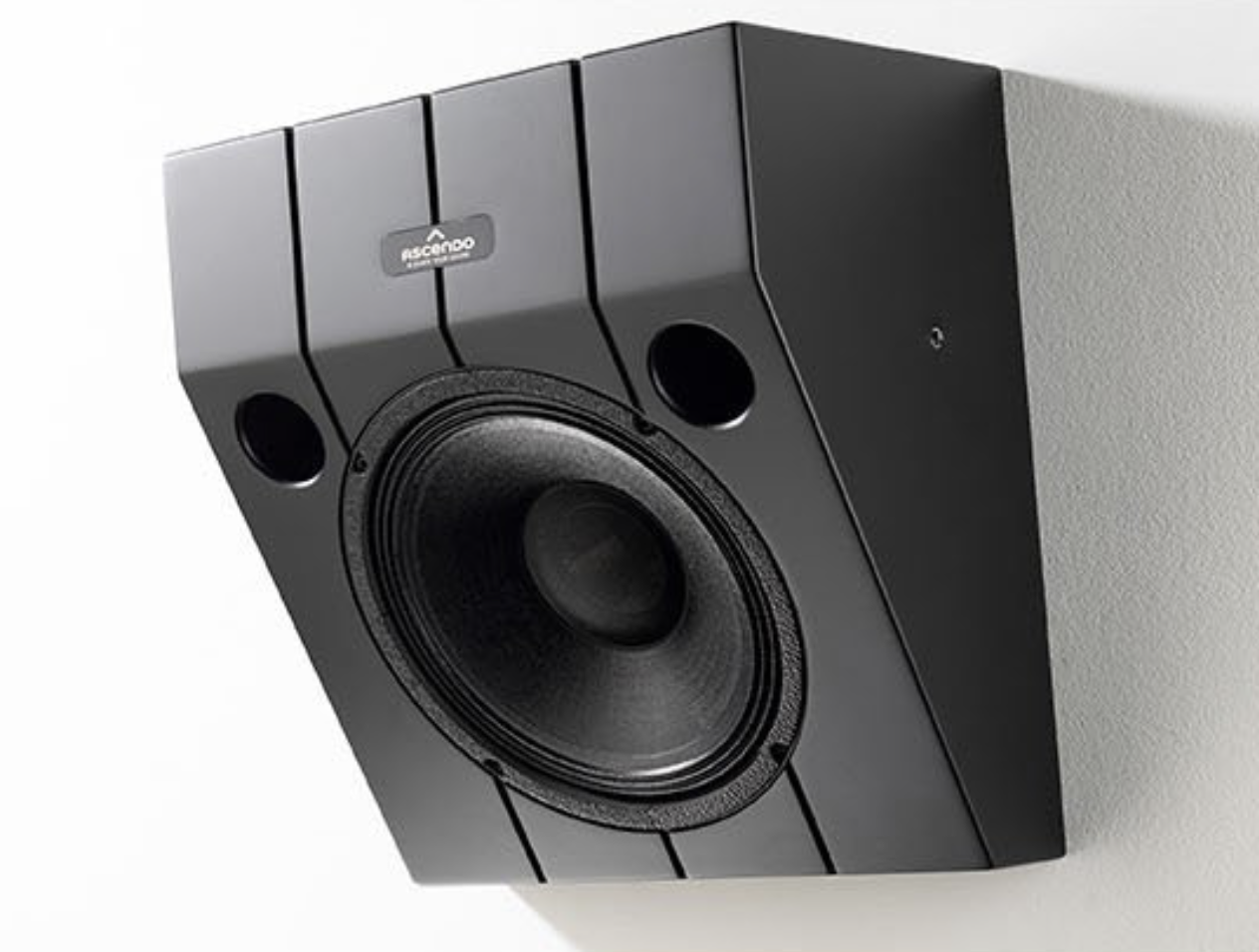

The design objective for this model was to offer a pre-angled version of THE10 PASSIVE ON WALL that can be installed in multiple locations where angling the speakers is mandatory. Such locations include but are not limited to front wide, Atmos and DTS top front and rear, front or rear high surrounds, side surrounds etc.

The driver design is perfect for wide angle axi-symmetric radiation to cover a large listening area, with its 30-degree pre-angle meeting the requirements of most 3D home theater builds according to current CEDIA, Dolby and DTS specs. The very flexible speaker mounting and orientation options ensure best possible localization, immersion, and tonal balance at the main listening position while minimizing localization shifts for side seats.

THE10 PASSIVE WEDGE 30 is an enormously dynamic and powerful speaker. Its high efficiency and high-power handling allow it to reach reference volume levels and obtain an impressive cinema sound experience even with low amplifier power.

Omtaler

Det er ingen omtaler ennå.

Bare innloggede kunder som har kjøpt dette produktet kan legge igjen en omtale.

SPESIFIKASJONER

Speaker type	10″ time coherent point-source coaxial
Principle	Vented
Passive \| Active	Passive
SPL	Measured data 120 dB cont. / 130 dB peak
Frequency range	Measure data 100 Hz – 20 kHz / -3dB
Efficiency	97 dB / 1W/m
Power handling	500 W
Impedance	8 Ω

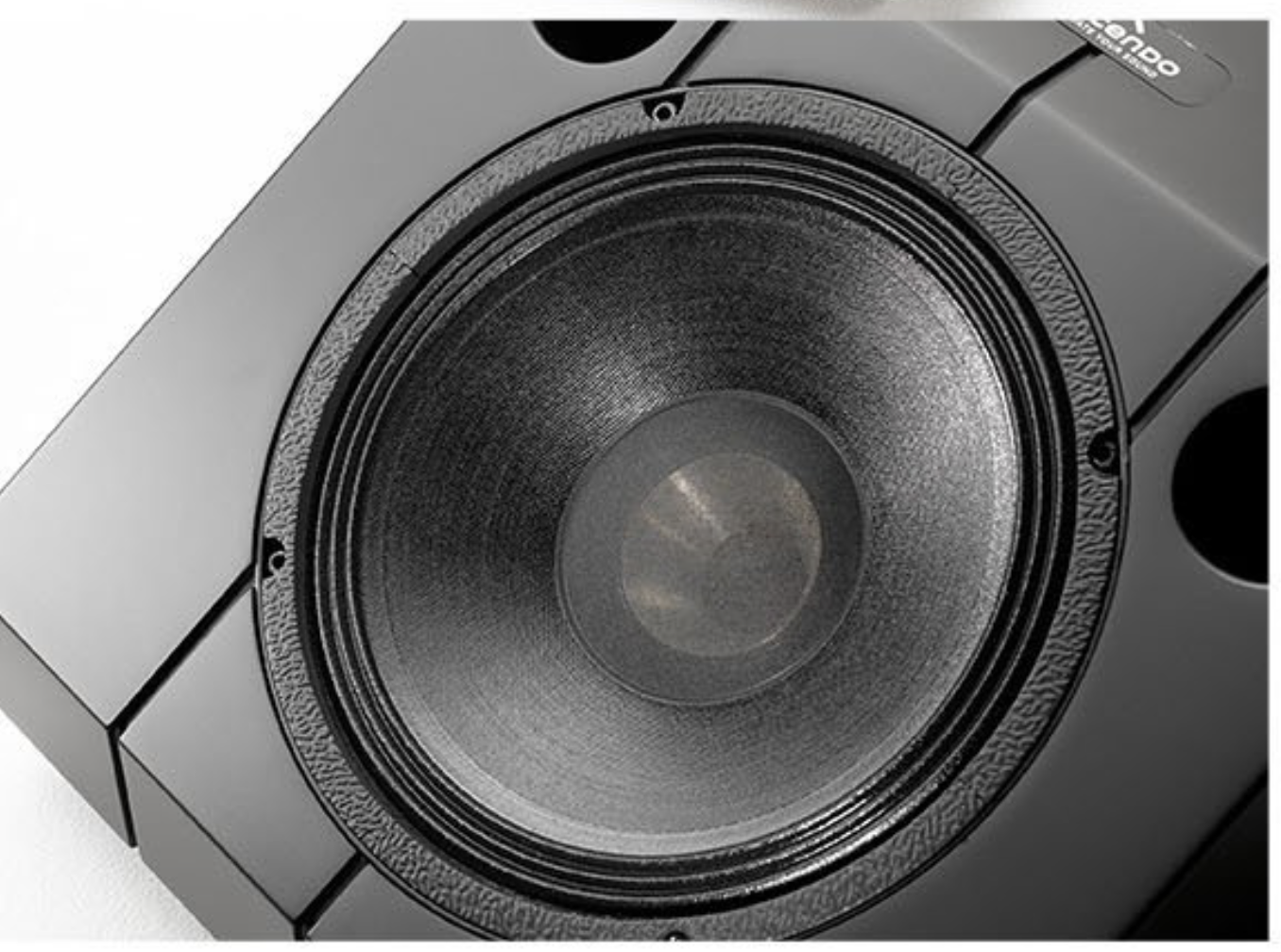

Woofer	10″ woofer
Tweeter	1″ Compression driver
Directivity horizontal x vertical in Deg°	85° x 85°

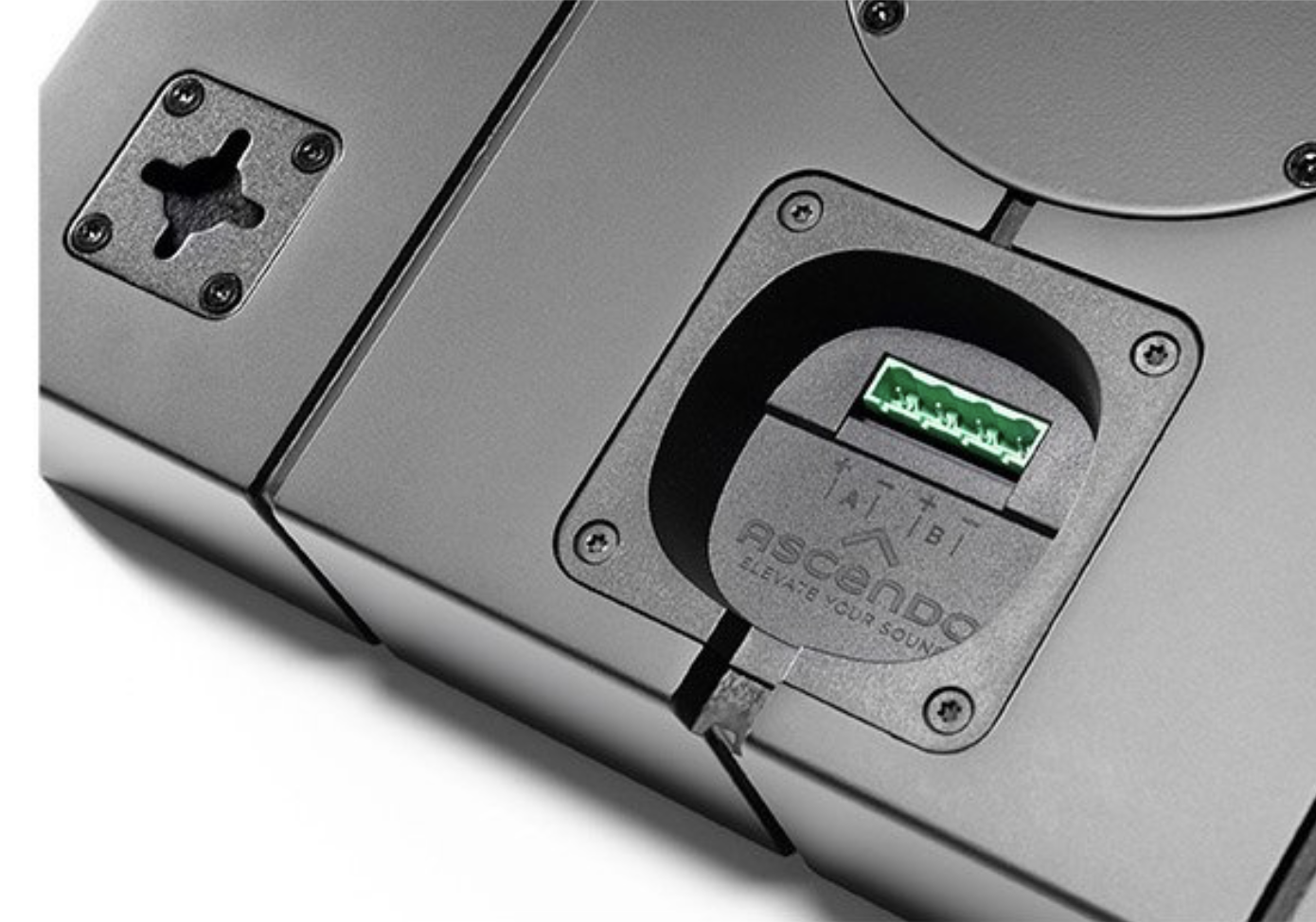

Input terminal	One 4-conductor Phoenix 12 AWG (3,3 mm²)
Enclousure	MDF
Width	14,7 ” \| 360 mm vertical 14,7 ” \| 360 mm horizontal
Hight	15,04 ” \| 382 mm vertical 8,62 ” \| 219 mm horizontal
Depth (without grille)	8,62 ” \| 219 mm vertical 15,04 ” \| 382 mm horizontal
Weight	28,66 lbs \| 13 kg
Finish	Matte black

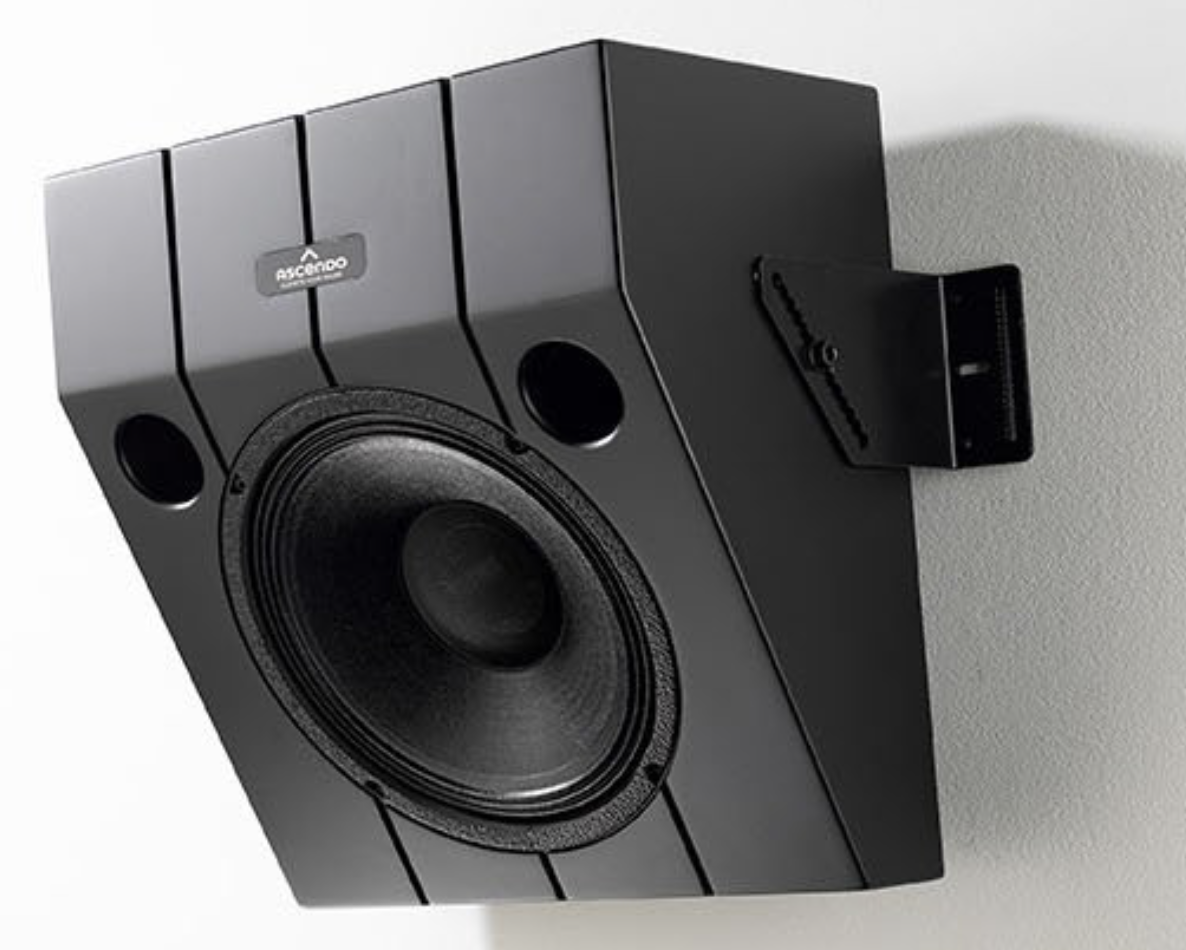

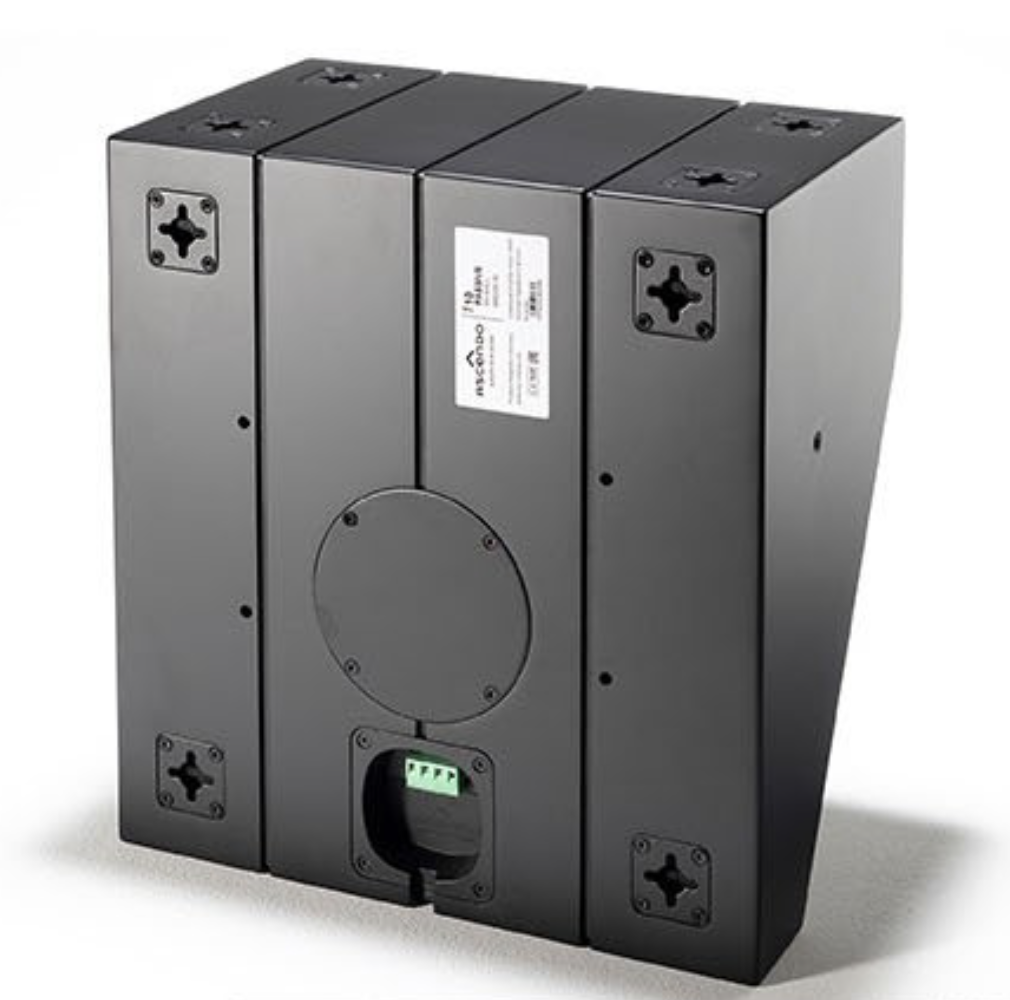

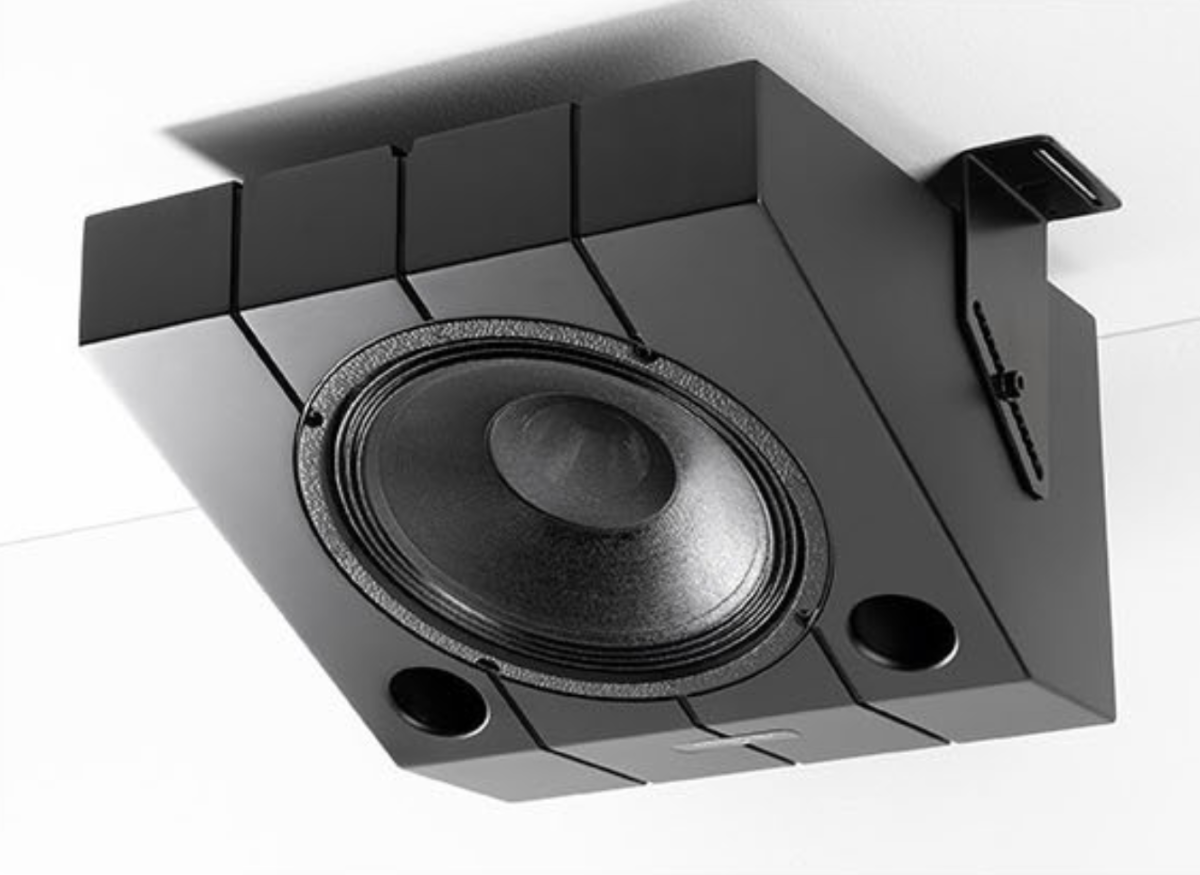

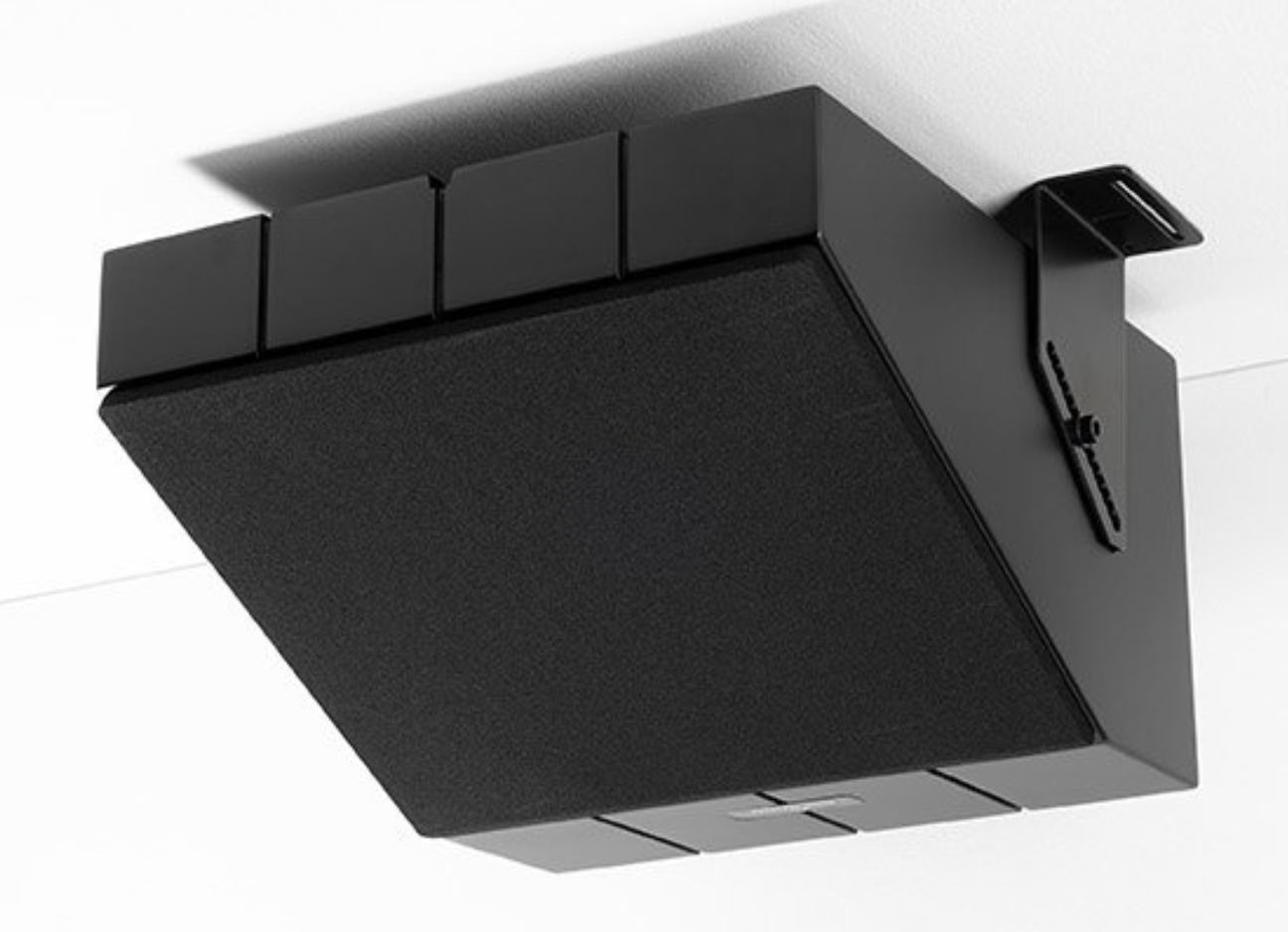

Mounting	Metal wall or ceiling mounting brackets that allows to angle the speaker further in two axes + 8 wall mount brackets, which allow to hang the speaker in multiple ways on the wall + VESA 200 x 100 mounting points
