NYHET! AutoCalc lar deg automatisk beregne ditt materialbehov for en komplett lydisolasjon av ditt rom >>
NYHET! Spesialproduserte U-boats for norske stenderdimensjon er endelig tilgjengelig fra DreamScreen! Bredde på 49mm gir mulighet for bruk av både 48x48mm, eventuelt 48x36mm gulvstendre. Du kan også bruke 48x30mm, men da bør U-boatene plasseres enda tettere, type hver 20. cm i stedet for hver 30. cm. Pris er angitt pr. stk, men du får rabatt ved kjøp av 100stk eller flere.
Beregn 10stk U-boats per kvm gulv for 48×48 og 48×36 stendre eller 15stk U-boats per kvm gulv for 48×30 lekter.
Informasjon fra produsent
If you are looking for the best possible noise-reduction from your cinema-room there is simply no way around decoupling the floor, walls and ceiling. If you decouple, the sound is unable to travel as easily through the construction, reducing ambient noise very effeciently.
You need about 10 U-boats per square meter floorspace when using 48x48mm or 48x36mm studs. You can also use even more shallow studs, such as 48x30mm, but in such case we recommend using 15 U-boats per square meter, or every 20cm instead of every 30cm.
Installing the U-boats
There are lot of alternative methods on decoupling your floor. Rubber U´s, however, has proven very functional both in terms of decoupling-effeciency but also in regards to easy and comprehensible installation. This method is popular in both professional studios and home cinemas. These U-boats allow you to place 48x48mm studs or alternatively 48x36mm studs if you´d like to save some height directly on the sub-floor. You can also use 48x30mm studs, but in such case we recommend increasing the number of U-boats from 1 per 30cm to 1 per 20cm.
There should be a maximum of 30cm between each U-boat and also maximum 30cm between each row of U-boats using 48x48mm or 48x36mm studs. If you use 48x30mm studs we recommend using one U-boat every 20cm.
Every two meter or so, we recommend connecting the rows using a short stud. You only need to place U-boats on every second connecting stud. We also recommend using some form of insulation, and last you screw plus glue the floorboards to the studs, either in one or two layers.
Please remember to never allow the floorboards to touch the surrounding walls as this would reduce the effeciency of the decoupling significantly. We recommend that you leave about 3mm and use the flexible DreamScreen Insulation Band (ligger under tilbehørsfanen) to cover the openings.

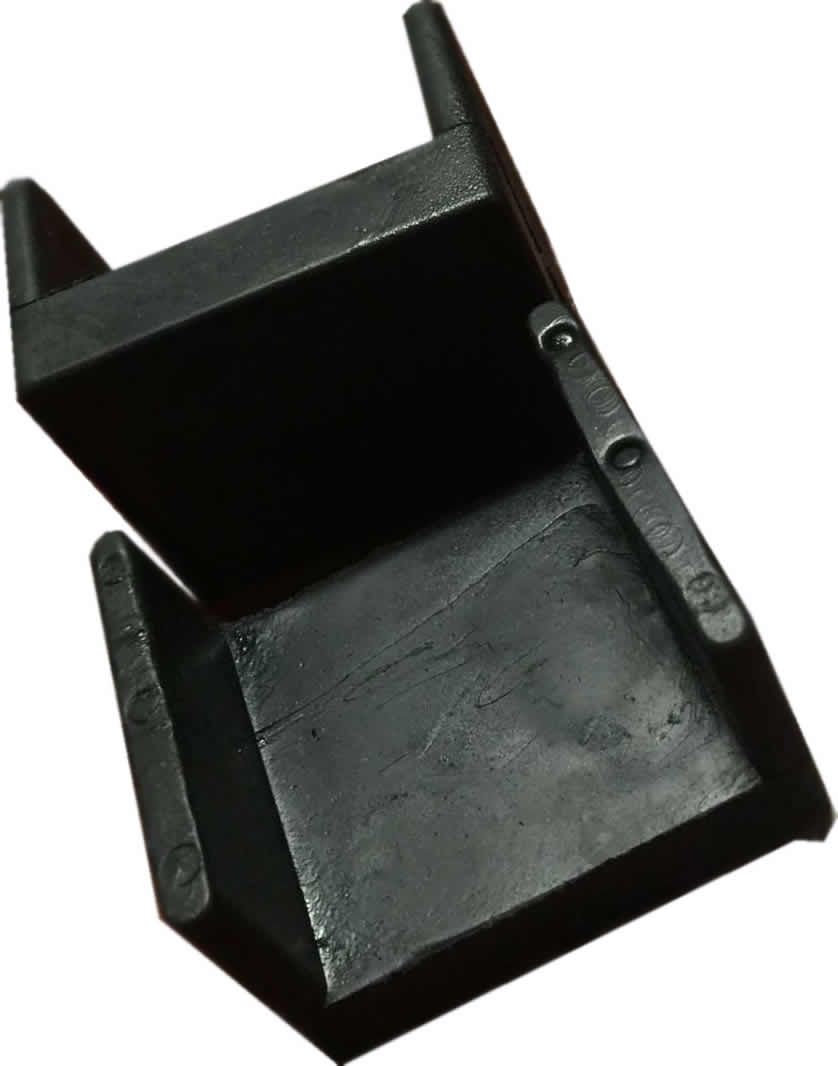

Dimensions of the clip is 61x38mm (width / height). The inner section is 49mm allowing for some flexibility using a 48mm stud. The bottom rubber section builds 10mm from the sub-flooring.
