HDFury Arcana 18Gbps 4K eARC switch

Arcana lar deg hente ut eARC audio-signalet fra HDMI-signalet og tillater dermed opp til Dolby Atmos fra hvilken som helst HDMI kilde til hvilket som helst eARC lydsystem. En perfekt løsning for SONOS Arc og enhver eARC receiver, lydplanke eller hodetelefoner.
3 299,- inkl. mva

Kun 4 på lager (kan også restbestilles)

16 × 11 × 6 cm

Kun 4 på lager (kan også restbestilles)



Informasjon fra produsent

Arcana, a community-driven project is now shipping daily!
For help: join our discord support server
DB9>RS232 or USB>RS232 cables can be purchased from: here
Arcana now have support for SONOS Beam or any ARC sound system as well as any eARC such as SONOS Arc.
No eARC TV ? No problem! And no more lip sync issues for eARC TV owners!
WORLD’S FIRST eARC adapter that allows FULL AUDIO up to Dolby Atmos over TrueHD from ANY external HDMI source to ANY eARC sound system.
Perfect solution for SONOS Arc and ANY eARC AVR, soundbar or headphones.
The Arcana Kit includes:

Arcana unit
Choice of power supply
USB power cable (6ft)


Key Features

SONOS Beam and ARC sound system support added (Since FW0.84)
Full Audio up to Atmos/TrueHD from any HDMI source/output to SONOS Arc & Beam 2 or any eARC sound system
Solve SONOS Arc & Beam 2 lip sync issue when using external HDMI sources connected to eARC TV
Works for ANY HDMI source to any eARC or ARC sound system
CEC control from TV at output to source at input
Added support for 1080p120 and 1440p120 (Xbox series X, PS5 and others)
CEC volume control from source to eARC/ARC sound system
CEC volume control from TV to eARC/ARC sound system
ARC retrieval from TV ARC input to eARC/ARC sound system
HDMI 2.0b Full Audio/Video passthrough up to 18Gbps/600MHz (SDR/HDR10/DV/LLDV)
Allow DV content playback from LLDV capable source on any HDR10 display for improved picture quality
HDMI2.0b Full Audio/Video output has an optional downscaler for improved picture quality on 1080p TV
Allow HDCP 2.2 > 1.4 Conversion
Perform Chroma, Color space and Color depth modification if needed
Increase or decrease nits value of HDR metadata in real-time during HDR playback
Live signal info and details on OSD and OLED
Rotary switch for OLED menu navigation
USB type C (for power) and USB type A female (for USB stick update)
RS232 jack connector (for integration and control, not needed for average user)


World First eARC HDMI2.1 adapter! | YouTube review here | written review here | Techhive review here
Arcana allows ANY HDMI source FULL AUDIO to ANY eARC sound system for up to Dolby Atmos, Dolby TrueHD, Dolby MAT Atmos, DTS-X, DTS-HD Master Audio and older formats.
Shipping of the smartest converter solution for interoperability between any HDMI sources and eARC sound systems has now started.

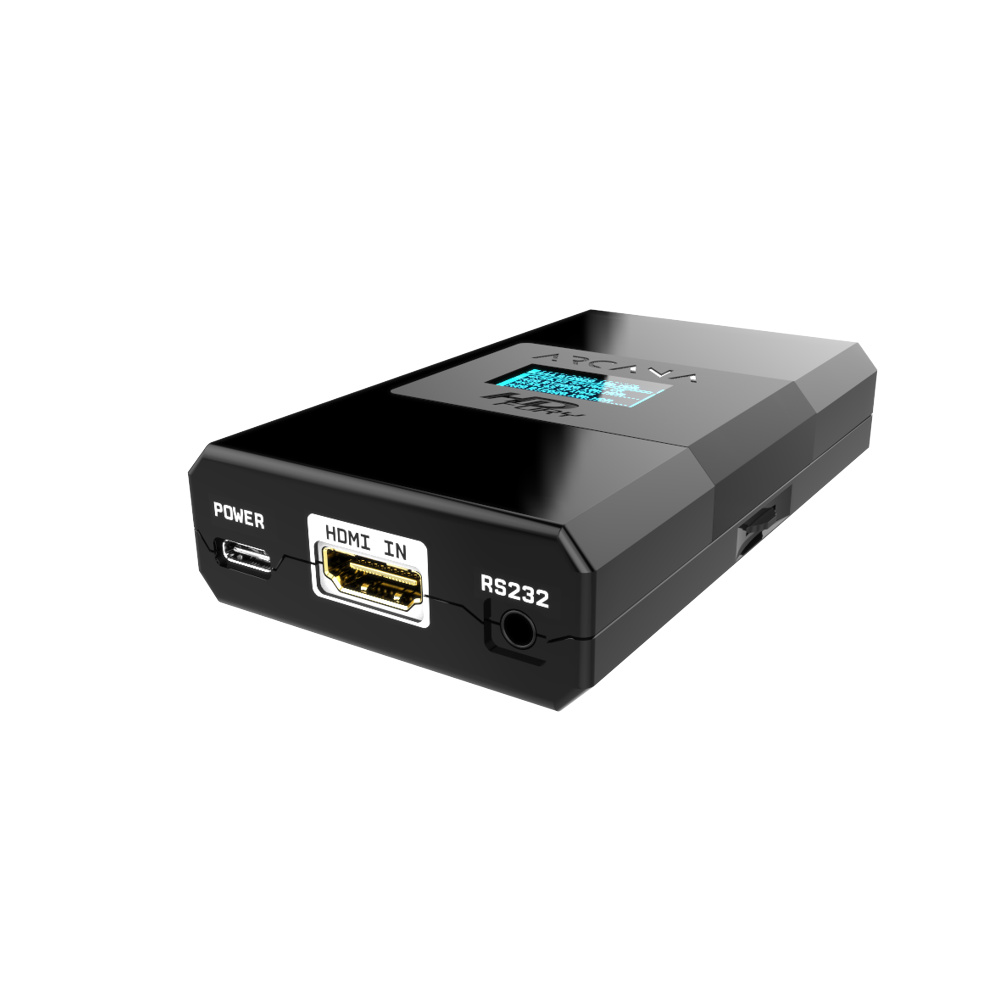

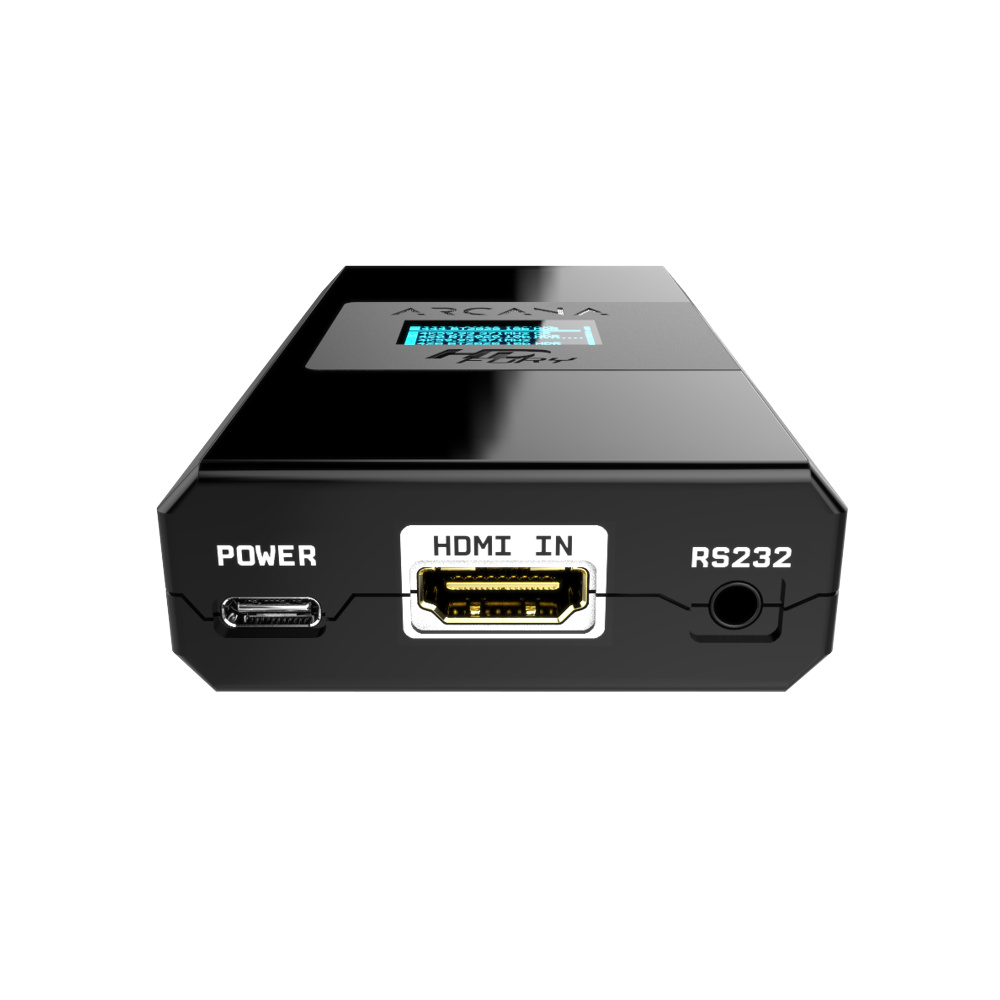

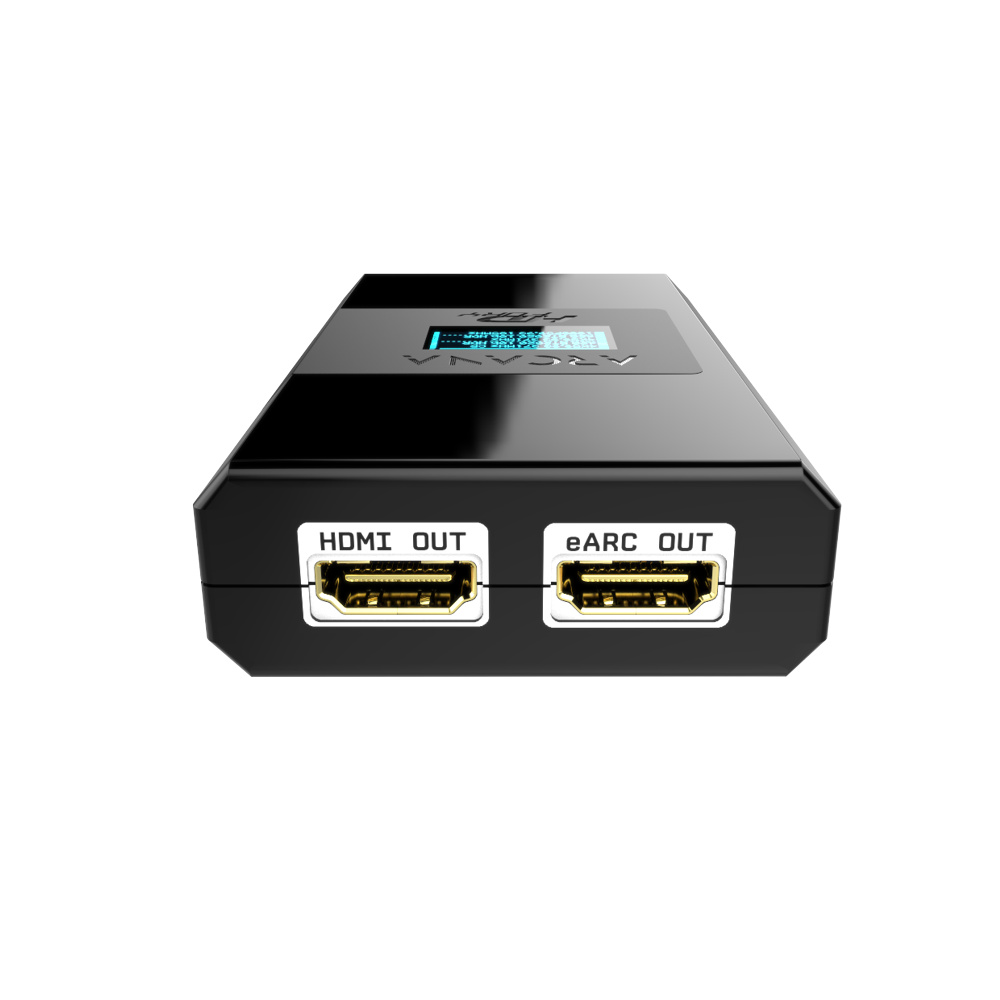

Hardware-wise, Arcana features 1 HDMI input, 1 HDMI output with scaling option, 1 eARC output, USB type A for USB stick update, USB type C for power, RS232, OLED display and a rotary/wheel switch on the side allowing to navigate/select and perform changes in the device system menu. Arcana input is capable of 4K HDR/HLG/DV/LLDV/HDR10+ up to 18Gbps for video and support any sound format in existence today, HDMI video output is capable of outputting 18Gbps or downscaling 4K/UHD to 2K/FHD and support all sound formats as well.

Software-wise, EDID management ensures the best possible mixing of TV video capabilities and SONOS Arc (or other) audio capabilities at all times. HDCP conversion is possible in any way and the device can downscale and perform signal operations such as Chroma/Color depth or Color space.
Arcana also allows playback of DV content from LLDV capable source to any HDR10 display and can increase or decrease HDR metadata nits value in real time!
All signal information is visible at first sight via OLED or On Screen Display.

Pre-release demo video (click to open in a new browser tab):
1. Arcana and SONOS App, CEC control, Atmos, pre release demo ( ATV4K > Arcana > SONOS Arc / LG EF9500-ARC )
2. Arcana OLED infopages (Arcana > SONOS Arc)

3 omtaler for HDFury Arcana 18Gbps 4K eARC switch

  1. Robert Almberg (bekreftet eier)

    Super bra och jag är väldigt nöjd med all hjälp jag fick!

  2. Thor-Egil Ekeli (bekreftet eier)

    Løste mitt behov for eARC inn på lydplanke uten TV som støtter dette. Eneste negative er litt høy pris.

  3. Dagfinn Lunde (bekreftet eier)

    Konge-produkt når man støter på lydproblemer med AppleTV og Sonos Arc. Kjør lyden utenom TV og problem løst!

Skriv en omtale

Din e-postadresse vil ikke bli publisert. Obligatoriske felt er merket med *


Technical specs

HDMI revision: HDMI 2.0b (Level A) 600Mcsc – 18Gbps
Arcana Support: 600MHz/18Gbps HDR, HDR10+, HLG, DV & LLDV, eARC, ALLM, IMAX
Max Resolution: 4K60 4:4:4 8b, 4K60 4:2:2 12b, 4K120 4:2:0 8b or 8K30 4:2:0 8b
TOTAL I/O: 1 HDMI In, 1 HDMI Out, 1 HDMI eARC Out, 1 RS232, 1 USB-A (update), 1 USB-C (power)
Pass & Downscale port: UHD 2160p & 4K/DCI to FHD 1080p & 2K/DCI
Full Audio eARC port: Full Audio up to Atmos over TrueHD from HDMI source at input to eARC sound system such as SONOS Arc & Beam 2
Signal Conversion: Resolution, Chroma Subsampling, Color Space, Color Depth, HDCP
HDCP Conversion: Any HDCP to any HDCP with CST1 support
Operating Modes: 18Gbps Scaler & Splitter with CEC, eARC, ARC and EDID management
Special Modes: DV/LLDV to HDR10 display, Boost HDR nits value, Translate HLG>HDR, HDMI Doctor
EDID Modes: TV only, TV video + SONOS audio, SONOS only, optional LLDV datablock for all modes
Control Modes: OLED and rotary switch with click and push buttons, RS232
On Screen Display: ON/OFF/timer with choice of text color
OLED: 1″ Diagonal, 128×64, 2 colors
Arcana Size: 3.9″L x 2.3″W x 0.8″H – in CM: 10 x 6 x 2.2
Arcana Weight: 120g – 0.26 LBS
Input Lag: <1ms (nanoseconds count)
Other info: 3D Support, CEC Pass Through, DSD, eARC (HDMI2.1)
