NYHET! Ny effektforsterker fra Marantz med 16-kanalers drift. Klasse D Hypex N-core 200W moduler. AVshop har allerede lagt disse i bestilling og vil dermed være de første som får denne i Norge. Forhåndsbestill nå med 10% depositum.

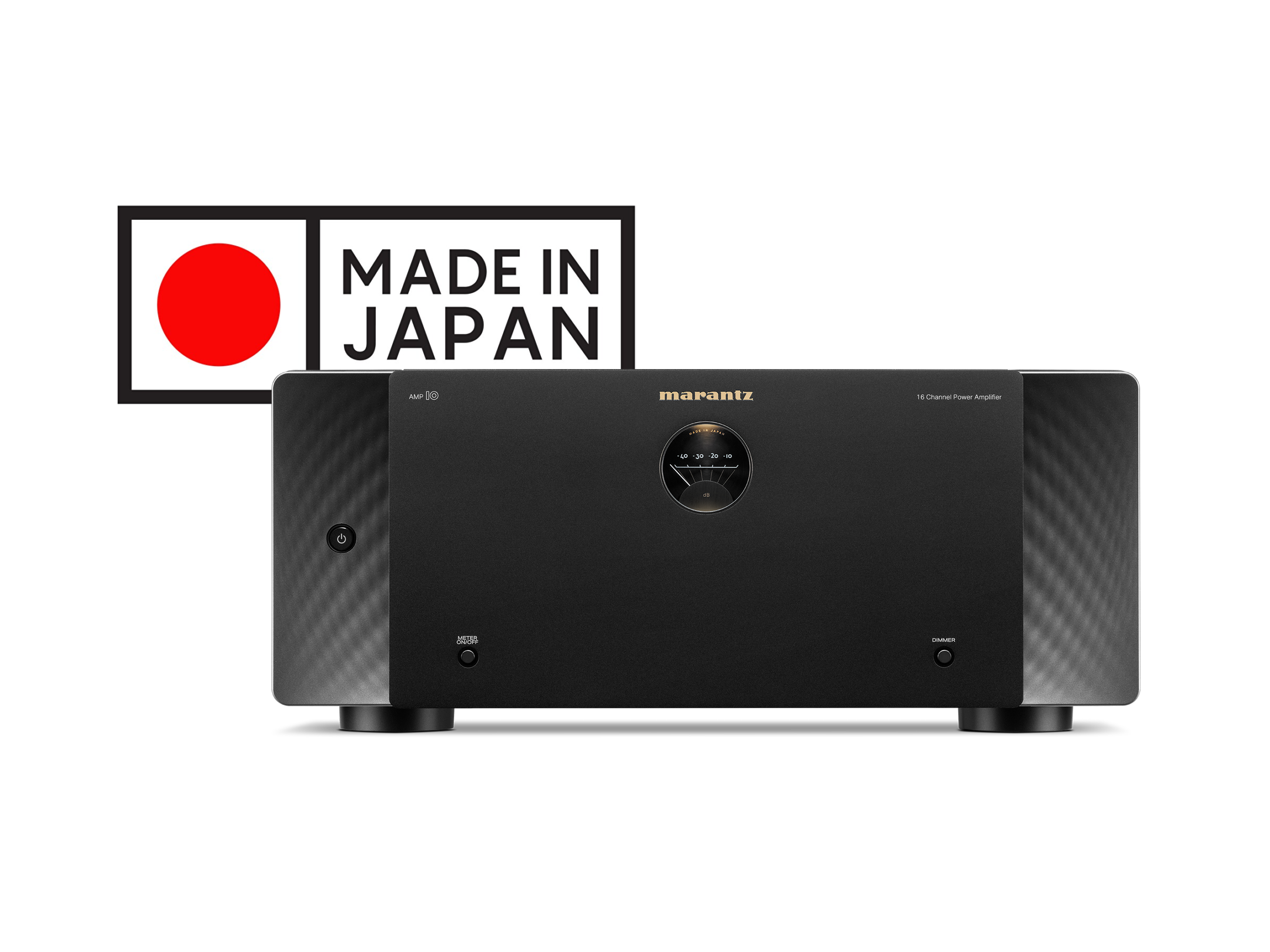

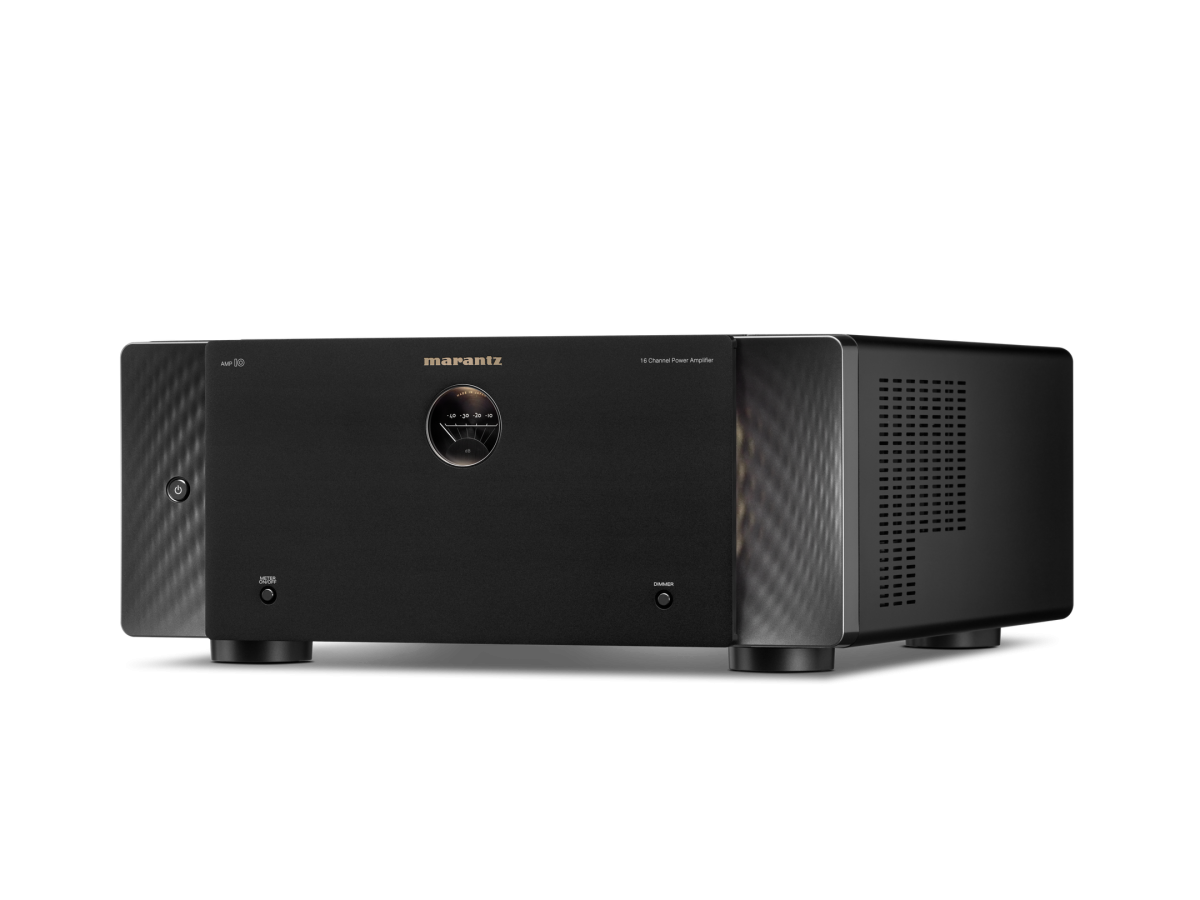

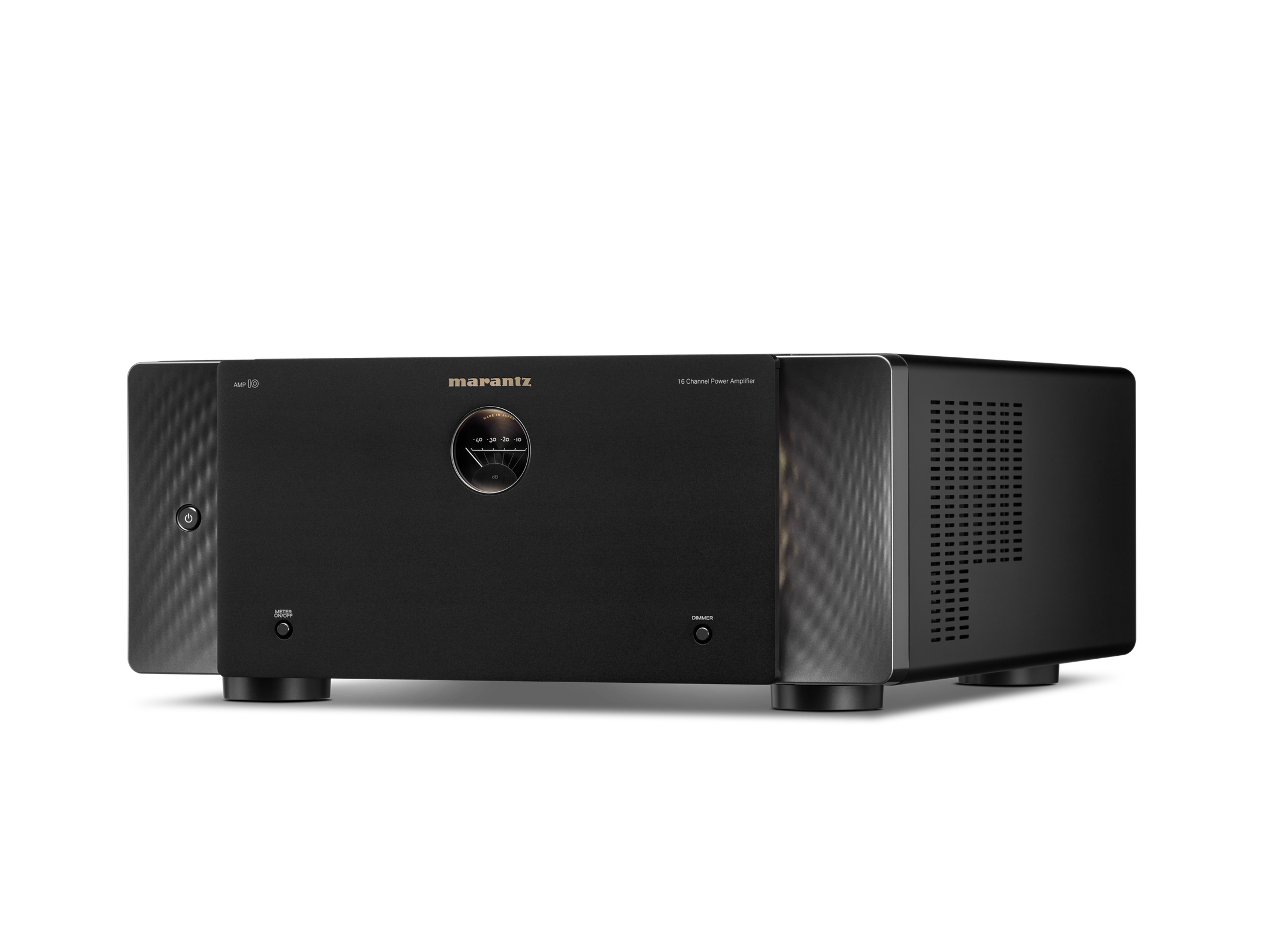

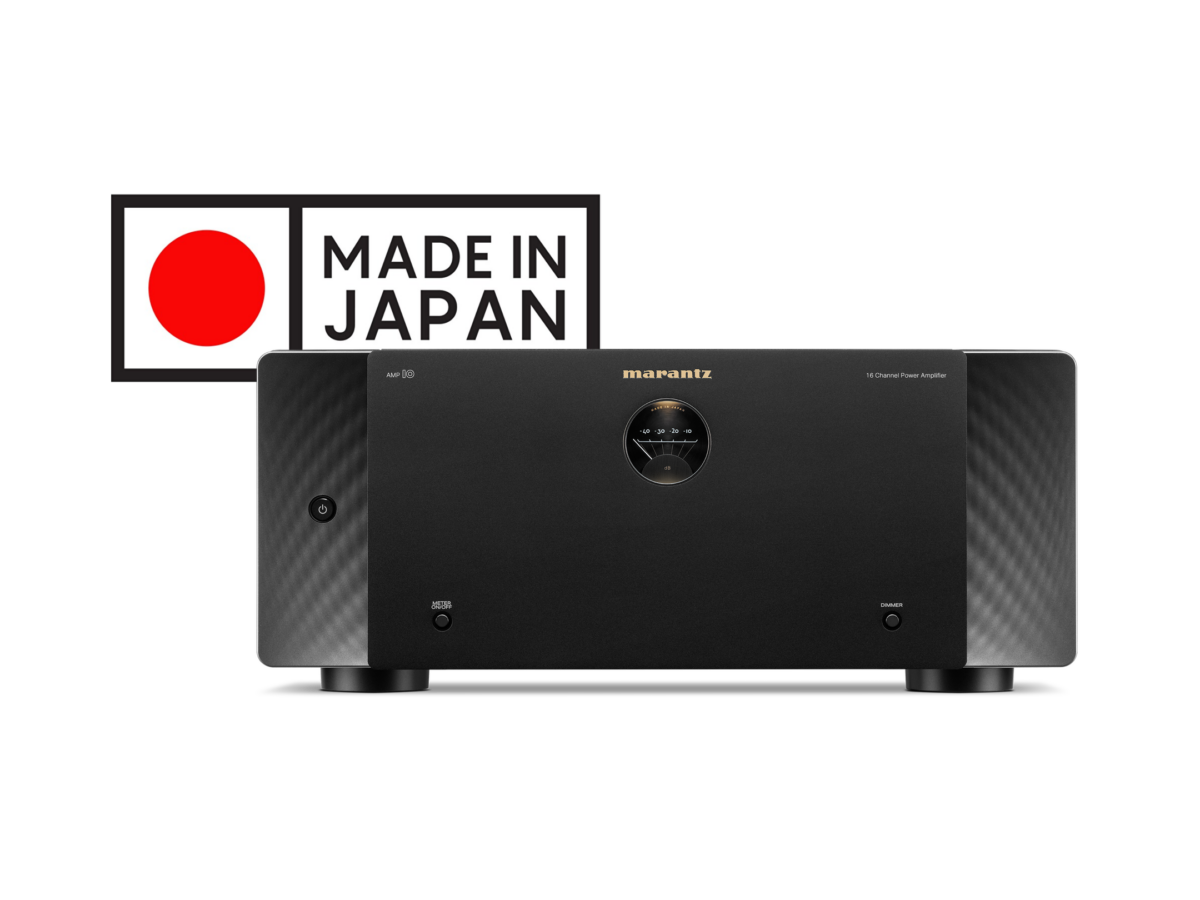

REFERENCE 16-CHANNEL 200-WATT-PER-CHANNEL @8OHM / 400-WATT-PER CHANNEL @4OHM AMPLIFIER
Reference 16-channel 200-watt-per-channel @8Ohm / 400-watt-per-channel @4Ohm amplifier. Pair with AV 10 to create an elite-level home theater. Marantz HDAM, Current Feedback Amplification, and balanced line level input.
Key Features
Peerless Performance
Immersive spaciousness, warm and rich tone, extraordinary detail and lifelike dynamics are legendary hallmarks of Marantz sound.
Technology Leader
AMP 10 is engineered using best-inclass technologies to enable extraordinary power output; high channel count; and the dynamic, rich, warm sound for which Marantz is highly renowned.
Exquisite Design

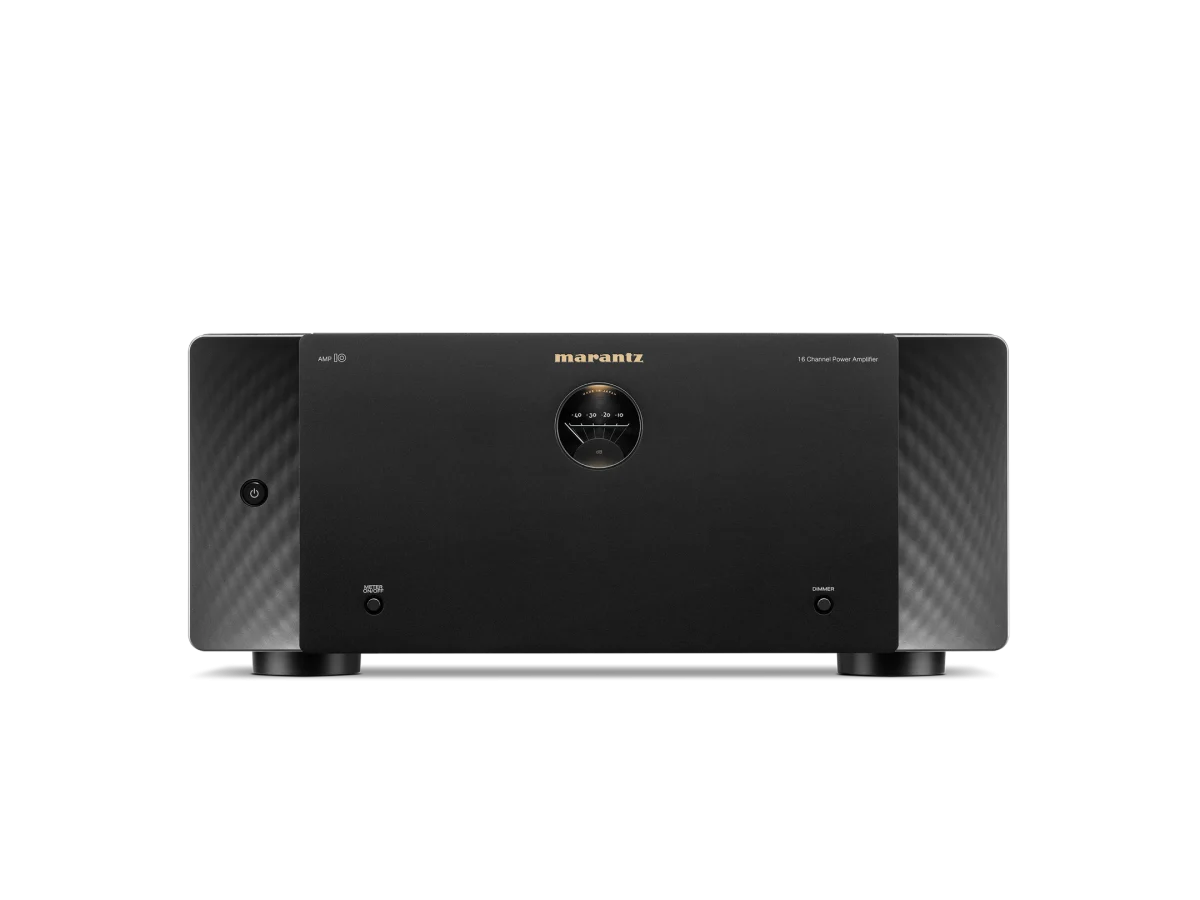

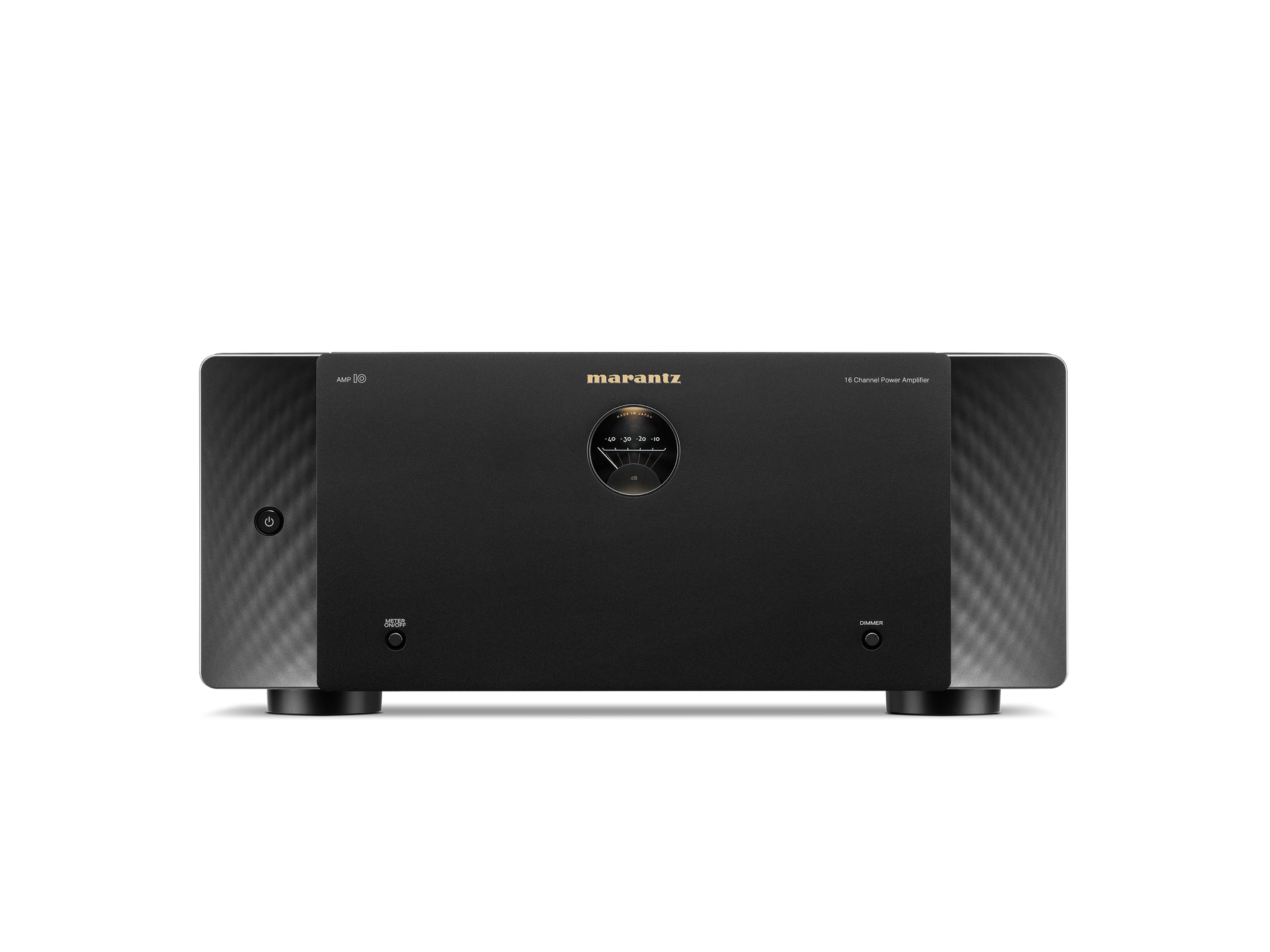

A modern expression of timeless design principles, AMP 10 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel.
Fra audioholics, mer offisiell info kommer snarlig:

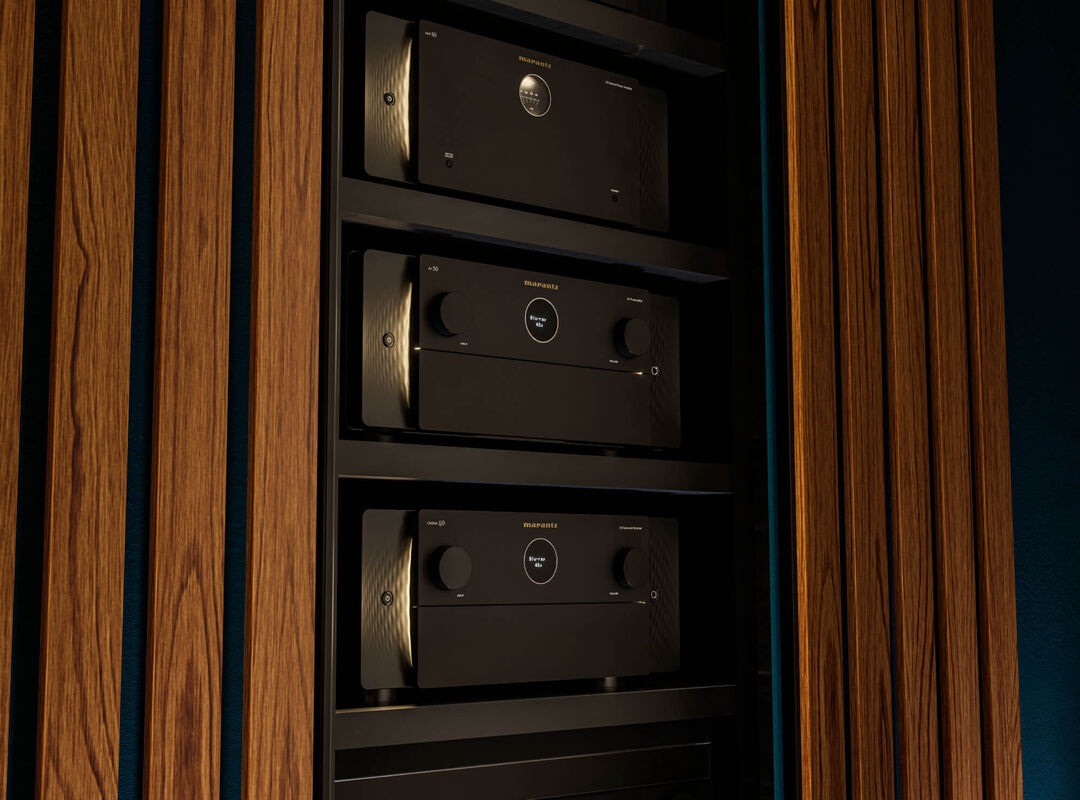

Marantz AV 10 15.4CH AV Processor
Marantz is touting these products as the most powerful and customizable system to create your ultimate Home Theater. The AV 10 sports ALL immersive surround CODECs including Dolby Atmos, DTS:X Pro, Auro 3D and IMAX Enhanced. The AV 10 includes support for 4 independent subwoofer outputs which allows for independent delay and level trim and EQ. This is a first for any Marantz product as prior models like the AV8805 support up to two independent subwoofer outputs. The only other AV processor in this price range that supports 4 independent subwoofer outputs is the Anthem AVM90. This is an incredibly useful feature for anyone wanting to integrate 4 subwoofers in their system to achieve the very best bass response across all listening seats.
The AV 10 has just upped its room correction game with FULL DIRAC support (upgrade option) in addition to simultaneously supporting Audyssey MultEQx. This is the first time we’ve seen a product support both room correction systems. It begs the question if this spells the end of Audyssey as we know it IF consumers will prefer DIRAC as their go to room correction system. We’ve heard rumors that the user could use a combination of both Audyssey and DIRAC in conjunction but it’s unclear how that would work. Is it possible a user can DIRAC calibrate their system and then apply Audyssey Dynamic EQ and Volume features? We aren’t sure and will leave that topic open for debate until we can confirm with Marantz at CEDIA in a few weeks.
The AV 10 is said to have 7/3 HDMI input/output, with ALL inputs supporting 8K / 60Hz and 4K / 120Hz passthrough. What is more shocking is that Marantz has allegedly redesigned the GUI (Graphical User Interface) for 4K/8K TVs. Most competitors simply don’t support GUIs in their products in favor of web interface or app control. It takes a lot of processing power to support a GUI for high resolution applications so this speaks volumes for the tech baked into this product.
Marantz AMP 16 16CH Amplifier
Technical Specifications
Multi-Room / CI
| IP Control / RS232 Control / Web Control / App Control | No / Yes / No / No |
| IR Flasher In | Yes |
| Marantz Remote Bus | Yes |
| DC Trigger Input/ Output | 1 / 1 |
Others
| Front Display | Level Meter |
| Firmware Update by Network / USB / RS232C | No / No / No |
| Auto Power off | Yes |

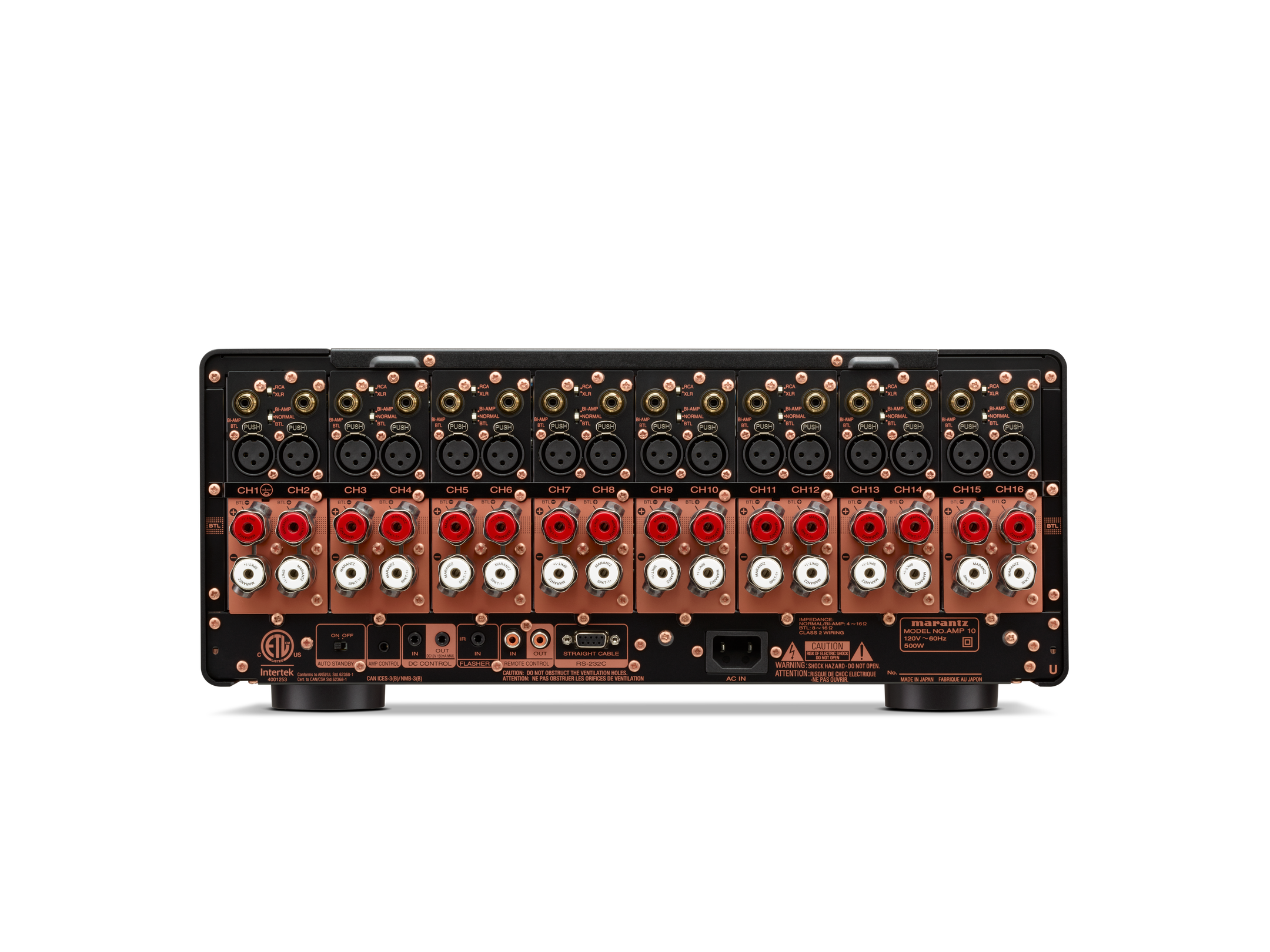

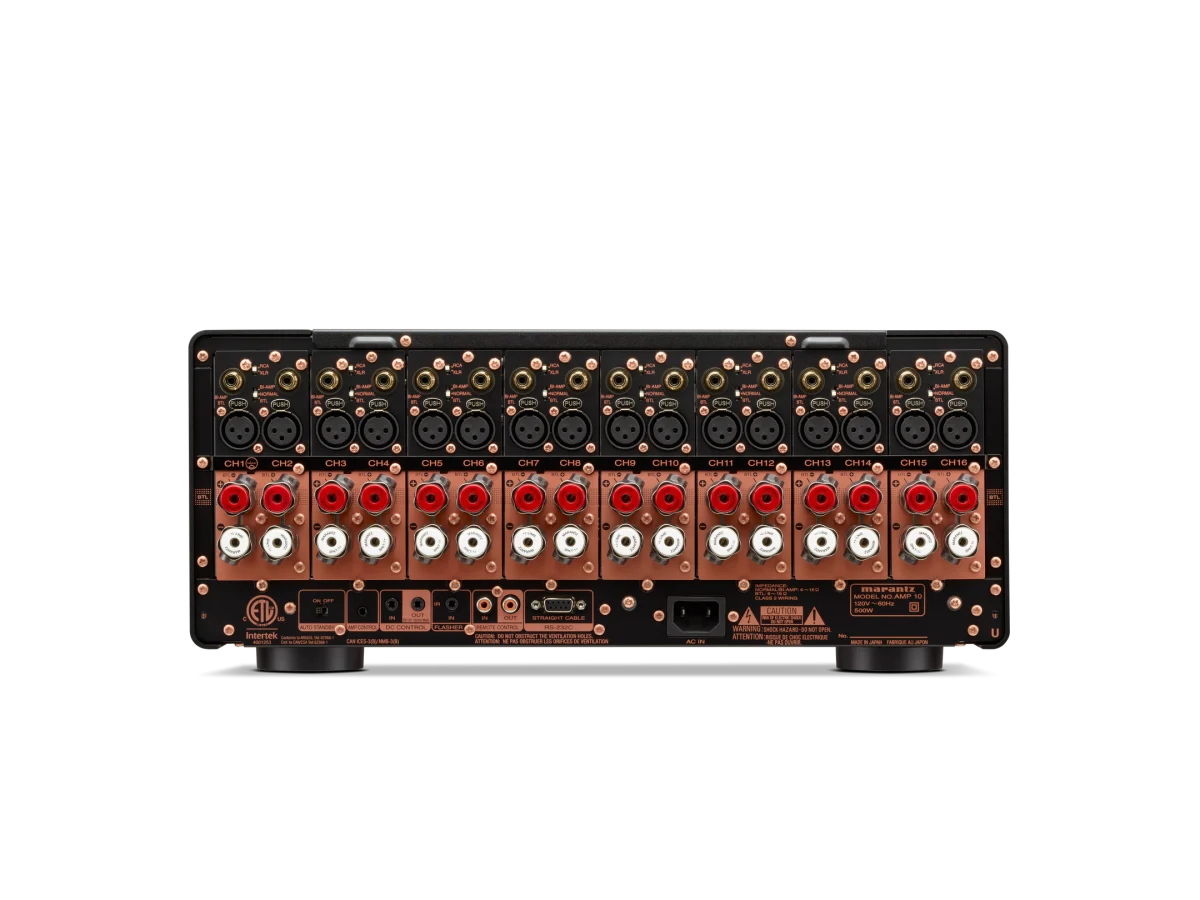

Inputs/Outputs
| Main Amplifier in | Balanced & Unbalanced: 16ch (Exclusive use by a selector switch.) |
| Speaker Terminal | SPKT-1+ |
| Number of Speaker Terminals | 16 |
| Bi-Amp Drive /BTL Drive | Yes / Yes |
| Level Meter | Yes |
| Chasiss | Copper Plated |
Specifications
| Number of poweramps | 16 |
| Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL | 200W / 400W |
| Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal | 400W |
| Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal | 200W |
| 70% Guarantee(Normal/Bi-Amp/BTL) | Yes |
| 100% Guarantee(Normal/Bi-Amp) | Yes |
General
| Metal Front Panel | Yes |
| Pre-Programmed / Learnable / LCD Display | No / No / No |
| Power Consumption in W | 500 |
| Power Consumption No-Sound in W | 140W |
| Standby Consumption in W | 0.2 |
| Maximum Dimensions | 【 17.4 x 19.2 x 7.4 】 |
| Weight in lbs. | 43.7 |
| What’s in the box | Main unit, quick start guide, AC cord, Amp control cable, Remote control cable, SP terminal wrench |
| UPC code | 747192137519 |
