Beskrivelse
Features:

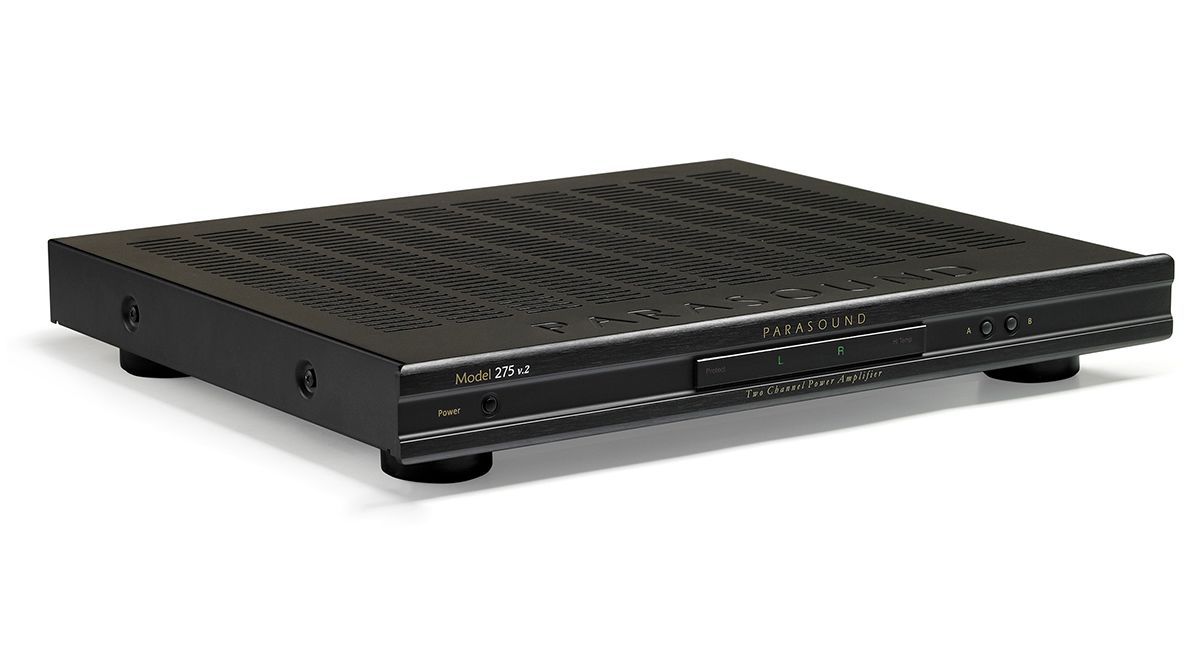

Parasound Model 275v.2 er alt en god effektforsterker skal være, unntatt stor. Den har den samme teknologien, tilkoplinger og funksjoner som de 2 større modellene i NewClassic serien. Og låter like vakkert fordi den bruker de samme klasse AB kretsene. Den har en enestående utgangseffekt og en toroid transformator som nesten tar opp halve plassen inne i kabinettet.
Alle NewClassic 2-kanals effektforsterkere er utviklet for kompromissløse Stereo oppsett og for hjemmekino surround systemer når det settes sammen med en av Parasound sine fler-kanals effektforsterkere. Alle forsterkerne er laget for å kunne tåle kontinuerlig 2 ohms drift og alle har en lav arbeidstemperatur som gjør de ideelle for installasjoner hvor andre effektforskere vil gå varme og overopphetes.
• THX Ultra2 certified
• 90 watts rms per channel into 8 Ω, all channels driven
• 150 watts rms per channel into 4 Ω, all channels driven
• 200 watts rms bridged into 8 Ω or 4Ω mono
• 20 amps peak current per channel
• Impedance selector switch for 2 Ω operation
• Bridging switch for stereo or mono operation
• A/B speaker terminals with individual on/off
• 18dB/octave high pass filter, switchable 20Hz or 40Hz
• Fully discrete circuitry with toroid transformers
• Efficient, low heat design
• DC Servo and relay protection circuits
• Automatic on/off by DC trigger with looping output
• Automatic on/off by audio signal with adjustable sensitivity

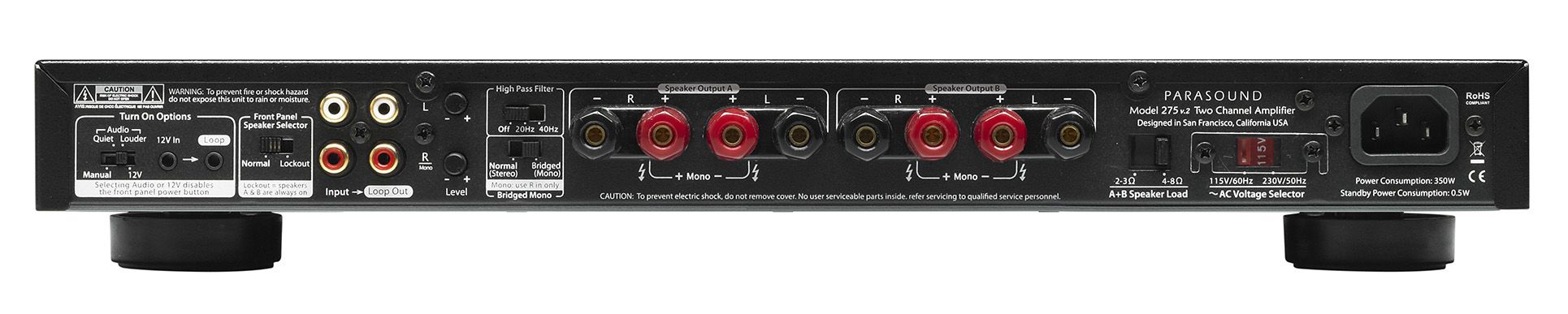

• Gold-plated RCA input jacks, loop output jacks
• Heavy duty 24k gold-plated 5-way speaker terminals
• Rear-mounted gain controls; ground lift switch
• 115/230v selector on rear panel
• Standby, channel status, high temperature indicators
• 1u chassis; RMK11 rack mount kit available
• (W x D x H): 17.25” x 16” x 2.5 ” / 1.75” without feet
• Parasound 3 year parts, 3 years labor warranty
(For USA and Canada purchases only)
Specifications:
-
Continuous RMS Power Output
20 Hz - 20 kHz, Both Channels Driven
90 watts x 2, 8 Ω
150 watts x 2, 4 Ω
150 watts x 2, 2 Ω -
Continuous RMS Power Output
20 Hz - 20 kHz, Bridged Mono
200 watts, 8 Ω
200 watts, 4 Ω -
Current Capacity
20 amps peak per channel -
Frequency Response
20 Hz - 50 kHz, +0/-3 dB, 1 watt -
Dynamic Headroom
1.3 dB -
Total Harmonic Distortion
0.035% at full rated output
0.025% at average listening levels -
IM Distortion
0.05 % -
Transient IM Distortion
Not measurable -
S/N Ratio
110 dB at rated output, IHF A-weighted
103 dB at rated output, unweighted
93 dB at 2.828 V output, IHF A-weighted
84 dB at 2.828 V output, unweighted -
Input Impedance
33 k Ω -
Input Sensitivity
800 mV for full rated output -
Inter-Channel Crosstalk
80 dB, 1 kHz
72 dB, 10 kHz
65 dB, 20 kHz -
Damping Factor
Over 150 at 20 Hz -
Auto Turn On - DC
9 - 12V, 15 mA -
Auto Turn On - Audio
1.2 mV - 12 V, adjustable
15 minute turn off delay -
AC Power Requirement
110 - 120 V / 220 -240 V, 50 - 60 Hz
3 watts standby; 350 watts full output -
Dimensions
17-1/4" Wide
16" Deep, with connectors
2-1/2" High with feet, 1-3/4" panel only
437 x 406 x 63mm, 44.1 mm panel only -
Net Weight
21 lbs , 9.6 kg -
Rack Mount Accessory
May be Purchased Separately
RMK11
275 v.2 OMTALER
Ultra bra kjøp!
– Fidelity
Når man kan slå fast at dette settet ikke har noen konkurrenter
– Fidelity
Den spiller musikk med bravur
- Watt
Omtaler
Det er ingen omtaler ennå.
