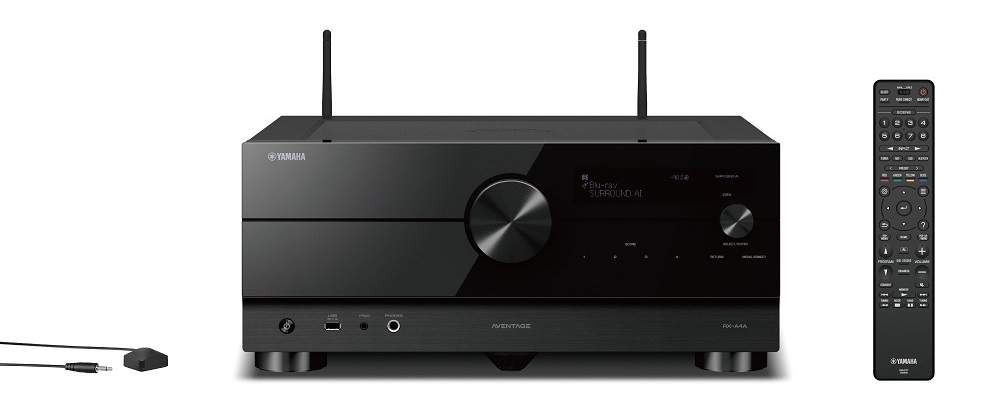

YAMAHA RX-A4A 7.2 ATMOS/ DTS-X SURROUND RECEIVER 7X110W 8K HDMI 2.1 SORT

Bestillingsvare
3 er forventet inn 23-02-2022

SKU: RX-A4A
Antall:
15 990,- inkl. mva

Bestillingsvare

Send meg en epost når denne er på lager

Varenummer: RX-A4A Kategori:

Beskrivelse

RX-A6A

RX-A8A

RX-A4A

Amplifier Section Kanaler 9.2 11.2 7.2
Rated Output Power (1kHz, 1ch driven) 185 W (8 ohms, 0.9% THD) 185 W (8 ohms, 0.9% THD) 135 W (8 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven) 150 W (8 ohms, 0.06% THD) 150 W (8 ohms, 0.06% THD) 110 W (8 ohms, 0.06% THD)
Maximum Effective Output Power (1kHz, 1ch driven) 220 W (8 ohms, 10% THD) 220 W (8 ohms, 10% THD) 165 W (8 ohms, 10% THD)
High Slew Rate Amplifier Yes Yes Yes
Surround Sound Processing Surround:AI Yes Yes Yes
CINEMA DSP Yes (HD3) Yes (HD3) Yes (HD3)
DSP Programs 24 24 24
Dialog Level Adjustment Yes Yes Yes
Virtual Presence Speaker Yes Yes Yes
Virtual Surround Back Speaker Yes Yes Yes
Dialogue Løft Yes Yes Yes
SILENT CINEMA / Virtual CINEMA DSP Yes Yes Yes
Dolby Atmos Yes Yes Yes
Dolby Atmos Height Virturalizer Yes Yes Yes
Dolby TrueHD Yes Yes Yes
Dolby Digital Plus Yes Yes Yes
Dolby Surround Yes Yes Yes
DTS:X Yes Yes Yes
DTS-HD Master Audio Yes Yes Yes
Auro 3D Yes (via firmware update) Yes (via firmware update) N/A
Audio Features File Format MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz
Pure Direct Yes Yes Yes
Compressed Music Enhancer Yes Yes Yes
High-resolution Music Enhancer Yes Yes Yes
YPAO multi-point measurement Yes with R.S.C. (Reflected Sound Control) , 3D, 64-bit High Precision EQ Calculation and Angle Measurement Yes with R.S.C. (Reflected Sound Control) , 3D, 64-bit High Precision EQ Calculation and Angle Measurement Yes with R.S.C. (Reflected Sound Control) , 3D, 64-bit High Precision EQ Calculation and Angle Measurement
YPAO Volume Yes Yes Yes
Adaptive DRC (Dynamic Range Control) Yes Yes Yes
Initial Volume & Maximum Volume Setting Yes Yes Yes
A.R.T. Wedge Yes Yes Yes
Bi-amp capability Yes Yes Yes
Audio Delay Yes (0-500 ms) Yes (0-500 ms) Yes (0-500 ms)
DA Converter 384 kHz / 32-bit ESS Hyperstream DAC ES9026PRO x1 ES9007S x1 384 kHz / 32-bit ESS Hyperstream DAC ES9026PRO x2 384 kHz / 32-bit ESS Hyperstream DAC ES9007S
Video Features HDMI eARC Yes Yes Yes
HDMI Audio Return Channel Yes Yes Yes
HDMI Pass-through 8K60AB, 4K120AB (via future update) 8K60AB, 4K120AB (via future update) 8K60AB, 4K120AB (via future update)
HDMI Up-scaling Yes, up to 8K (via firmware update) Yes, up to 8K (via firmware update) Yes, up to 8K (via firmware update)
HDMI Up-conversion Yes (Analog to HDMI) Yes (Analog to HDMI) N/A
Dolby Vision Yes Yes Yes
HDR 10+ Yes (via firmware update) Yes (via firmware update) Yes (via firmware update)
VRR/ALLM/QMS/QFT Yes (via firmware update) Yes (via firmware update) Yes (via firmware update)
Video adjustment Yes Yes N/A
Connectivity MusicCast Surround Yes Yes Yes
HDMI Innganger/Utganger 7 / 3 (HDMI2.1 / HDCP2.3) 7 / 3 (HDMI2.1 / HDCP2.3) 7 / 3 (HDMI2.1 / HDCP2.3)
HDMI CEC Yes Yes Yes
USB Input Yes Yes Yes
Network Port Yes Yes Yes
Wi-Fi Yes (2.4 / 5 GHz) Yes (2.4 / 5 GHz) Yes (2.4 / 5 GHz)
AirPlay 2 Yes Yes Yes
Bluetooth Yes (SBC / AAC) Yes (SBC / AAC) Yes (SBC / AAC)
Front AV Input USB USB USB
Digital Audio Input/Output: Optical 3 / 0 3 / 0 2 / 0
Digital Audio Input/Output: Coaxial 2 / 0 2 / 0 1 / 0
Analog Audio Input/Output 6 / 0 6 / 0 4 / 0
Platespiller Inngang Yes Yes Yes
XLR Terminal Yes Yes N/A
Component Video Input/Output 1 / 0 1 / 0 N/A
Composite Video Input/Output 2 / 0 2 / 0 N/A
Preout 11.2-ch 11.2-ch 7.2-ch
Headphone Output 1 1 1
Tuner Section FM/AM-Tuner Yes (Availability varies by region.) Yes (Availability varies by region.) Yes (Availability varies by region.)
DAB Tuner Yes (Availability varies by region.) Yes (Availability varies by region.) Yes (Availability varies by region.)
User Interface On-screen display Graphical User Interface Graphical User Interface Graphical User Interface
SCENE SCENE PLUS (8 sets) SCENE PLUS (8 sets) SCENE PLUS (8 sets)
App Control Yes (iPhone / iPad / Android phone / tablet) Yes (iPhone / iPad / Android phone / tablet) Yes (iPhone / iPad / Android phone / tablet)
Web Browser Control Yes Yes Yes
Fjernkontroll Yes Yes Yes
Zone Control Sone 2 Audio Utgang Preout / HDMI Preout / HDMI Preout / HDMI
Sone 3 Audio Utgang Preout Preout N/A
Sone 4 Audio Utgang HDMI HDMI N/A
Powered Zone Zone 2 / 3 Zone 2 / 3 Zone 2
Zone Video Output HDMI HDMI HDMI
Zone B Output HDMI HDMI N/A
Zone GUI Yes Yes N/A
RS-232C Interface N/A N/A N/A
Trigger utganger 2 2 2
Fjernkontroll (IR) Innganger 1 / 1 1 / 1 1 / 1
Party Mode Yes Yes Yes
General Standby Power Consumption (IR only) <0.4 W <0.4 W <0.4 W
Auto Power Standby Yes Yes Yes
ECO mode Yes Yes Yes
Mål (B x H x D) 435 W x 192 H x 442 D mm (with antenna up:435W x 271H x 442D mm); 17-1/8″W x 7-1/2″H x 17-3/8″D (with antenna up:17-1/8″W x 10-5/8″H x 17-3/8″D) 435 W x 192 H x 477 D mm (with antenna up:435 W x 271 H x 477 D mm);17-1/8″W x 7-1/2″H x 18-3/4″D (with antenna up:17-1/8″W x 10-5/8″H x 18-3/4″D) 435 W x 191 H x 442 D mm (with antenna up:435 W x 270 H x 442 D mm);17-1/8″W x 7-1/2″H x 17-3/8″D (with antenna up:17-1/8″W x 10-5/8″H x 17-3/8″D)
Vekt 20.3 kg; 44.8 lbs. (Varies by region) 21.4 kg; 47.2 lbs. 16.2 kg; 35.7 lbs.

Omtaler

Det er ingen omtaler ennå.

Bli den første til å omtale “YAMAHA RX-A4A 7.2 ATMOS/ DTS-X SURROUND RECEIVER 7X110W 8K HDMI 2.1 SORT”

Din e-postadresse vil ikke bli publisert. Obligatoriske felt er merket med *

SPESIFIKASJONER

Farge Sort
Merke Yamaha
Amplifier Section
Kanaler 7.2
Rated Output Power (1kHz, 1ch driven) 125 W (8 ohms, 0.9% THD)
Rated Output Power (20Hz-20kHz, 2ch driven) 100 W (8 ohms, 0.06% THD)
Maximum Effective Output Power (1kHz, 1ch driven) 150 W (8 ohms, 10% THD)
High Slew Rate Amplifier Yes
Surround Sound Processing
Surround:AI N/A
CINEMA DSP Yes
DSP Programs 17
Dialog Level Adjustment Yes
Virtual Presence Speaker Yes
Virtual Surround Back Speaker Yes
Dialogue Lift Yes
SILENT CINEMA / Virtual CINEMA DSP Yes
Dolby Atmos Yes
Dolby Atmos Height Virturalizer Yes (via future update)
Dolby TrueHD Yes
Dolby Digital Plus Yes
Dolby Surround Yes
DTS:X Yes
DTS-HD Master Audio Yes
Audio Features
File Format MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz
Pure Direct Yes
Compressed Music Enhancer Yes
High-resolution Music Enhancer N/A
YPAO multi-point measurement Yes
YPAO Volume Yes
Adaptive DRC (Dynamic Range Control) Yes
Initial Volume & Maximum Volume Setting Yes
A.R.T. Wedge Yes
Bi-amp capability Yes
Audio Delay Yes (0-500 ms)
DA Converter 384 kHz / 32-bit BB PCM5102A
Video Features
HDMI eARC Yes
HDMI Audio Return Channel Yes
HDMI Pass-through 8K60B, 4K120AB (via future update)*HDMI 1-3
HDMI Up-scaling Yes up to 4K
HDMI Up-conversion N/A
Dolby Vision Yes
HDR 10+ Yes (via future update)
VRR/ALLM/QMS/QFT Yes (via future update)
Video adjustment N/A
Connectivity
MusicCast Surround Yes
HDMI Innganger/Utganger 7 / 1
HDMI CEC Yes
USB Input Yes
Network Port Yes
Wi-Fi Yes (2.4 / 5 GHz)
AirPlay 2 Yes
Bluetooth Yes (SBC / AAC)
Front AV Input USB
Digital Audio Input/Output: Optical 1 / 0
Digital Audio Input/Output: Coaxial 1 / 0
Analog Audio Input/Output 4 / 0
Platespiller Inngang Yes
XLR Terminal N/A
Component Video Input/Output N/A
Composite Video Input/Output N/A
Preout 2.2-ch
Headphone Output 1
Tuner Section
FM/AM-Tuner Yes (Availability varies by region.)
DAB Tuner Yes (Availability varies by region.)
User Interface
On-screen display Graphical User Interface
SCENE Yes (8 sets)
App Control Yes (iPhone / iPad / Android phone / tablet)
Web Browser Control Yes
Fjernkontroll Yes
Zone Control
Sone 2 Audio Utgang Preout
Sone 3 Audio Utgang N/A
Sone 4 Audio Utgang N/A
Powered Zone Zone 2
Zone Video Output N/A
Zone B Output N/A
Zone GUI N/A
RS-232C Interface N/A
Trigger utganger 1
Fjernkontroll (IR) Innganger 1 / 1
Party Mode Yes
General
Standby Power Consumption (IR only) 0.1 W
Auto Power Standby Yes
ECO mode Yes
Mål (B x H x D) 435 W x 171 H x 372 D mm (with antenna up:435 W x 245 H x 372 D mm)
Vekt 10.2 kg; 22.5 lbs.
