NB! DEMO, aldri vært i aktiv bruk men har allikevel en hel del slitemerker / småskader etter frakt / visning (av design). Full funksjonalitet, og bør uansett installeres i en baffelvegg og dermed er den skjult.
NYHET! Alcons er ute med ny, passivt filtrert utgave av sin CRMS-serie, CRMS Compact! Denne mer kompakte utgaven er fysisk mindre enn storebror CRMS hvilket gjør at den passer bedre inn i typisk norske kinorom med bredde på rommet på 3,5-4m. I tillegg er høyttaleren passivt delefiltrert hvilket betyr at den kun trenger én effektkanal per høyttaler i motsetning til CRMS som krever to.
I kombinasjon med Alcons nye 15″ slim sub, som bl.a. er spesialdesignet for baffelvegg med porten i front, samt CRMS Surround, bestående av kun den øvre (2-veis) delen i CRMS Compacs 3-veis-design utgjør CRMS Compact-serien hva vi mener er noe av det best tilpassede og vellåtende systemet for Hi-End hjemmekino, studio eller screening. Under ser du et eksempel på en plassering av systemet i et rom med kun 3,6m bredde. Ta kontakt om du ønsker at vi skal prosjektere systemet til nettopp DIN kino!
Les mer om CRMS samt konfigurer ditt nye drømmesystem her:
Eksempel på prosjektering av det nye Alcons CRMS Compact-systemet i et rom med bredde på 3,6m. Lerretsbredden er 3,3m / 142″ (2.35:1).
Informasjon fra produsent:
- Single 15” long-excursion woofer with 4 ohms impedance
- Lowest usable frequency 19Hz.
- Signal Integrity Sensing™ pre-wired cable compensation
- Space-economic design, only 8.5”/21.7cm deep
- Also available in “Front-Vent” version for baffle-wall mounting
Product description

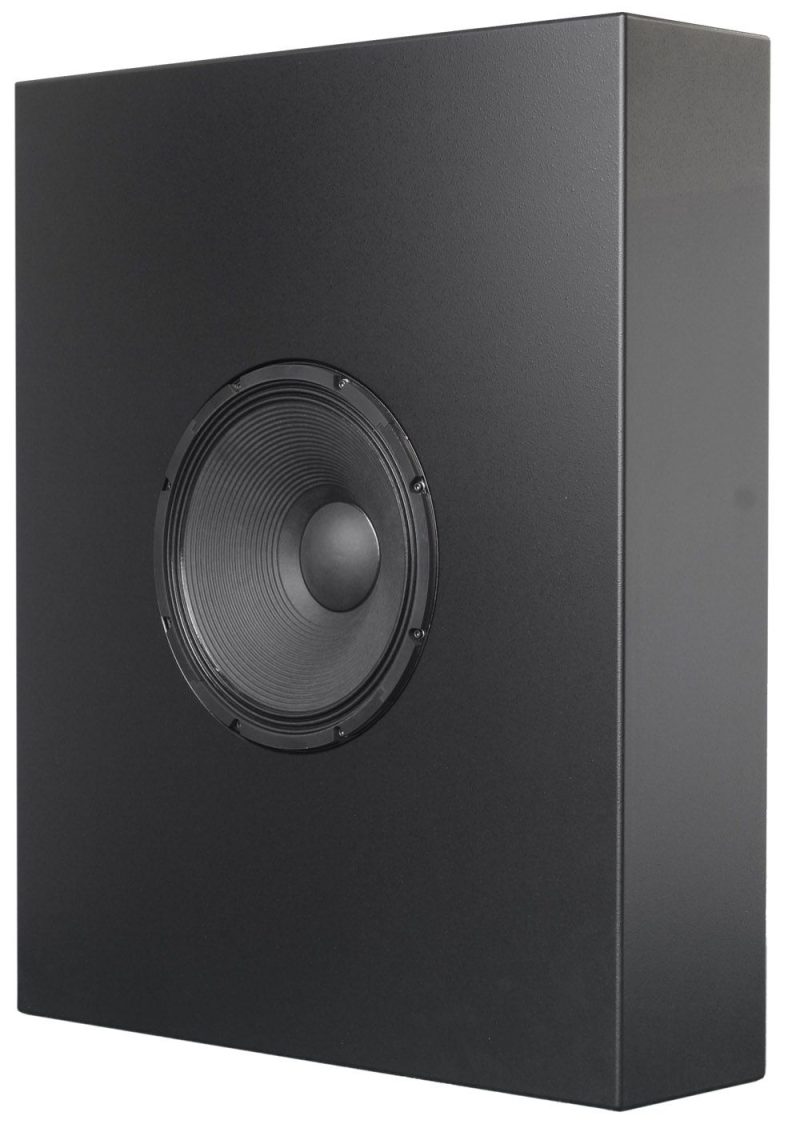

The CB151sl is a compact, direct-radiating subwoofer system for demanding cinema applications, delivering tight and accurate bass and sub response with very low distortion.
It is designed to meet all requirements of current and future (Digital) Cinema sound formats.
The direct-radiating 15” long excursion woofer with large, 4” voice-coil is mounted in an optimally vented chamber, with a large bass reflex port for excellent breathing capacity, increasing overall output while minimising port-compression. Specific attention has been paid to obtain a linear response in the operating bandwidth, while handling low frequency transients with maximum control.
The 4 ohms impedance offers maximum amplifier efficiency.
The ultra-slim enclosure design provides for stacking, flying or wall-mounting. The side-oriented reflex vent enables the cabinet to be closely mounted behind the screen without chance of screen resonance. The CB151sl is also available with front-venting for in-wall baffle mounting (“FV” version).
For full system performance, the CB151sl is to be driven and controlled by the ALC amplified loudspeaker controller; Driven by the ALC, the CB151sl delivers maximum sound quality and output power with long-term operation reliability. The integrated factory presets in the drive processor of the ALC offer gain, phase and filtering matching.
The Signal Integrity Sensing™ pre-wiring ensures complete cable/connector compensation between the CB151sl and the ALC amplified loudspeaker controller, significantly increasing response accuracy, regardless of cable length and system impedance. Especially with the cinema-typical long speaker cable runs and the subwoofer system’s possible low impedance, the effect is remarkable, resulting in really tight and accurate reproduction for even the lowest octaves.
Due to its form factor, the CB151sl is designed as low frequency extension in small-to-medium cinema systems, but is also the ideal choice for the Rear-Subwoofer channel in immersive surround systems.
