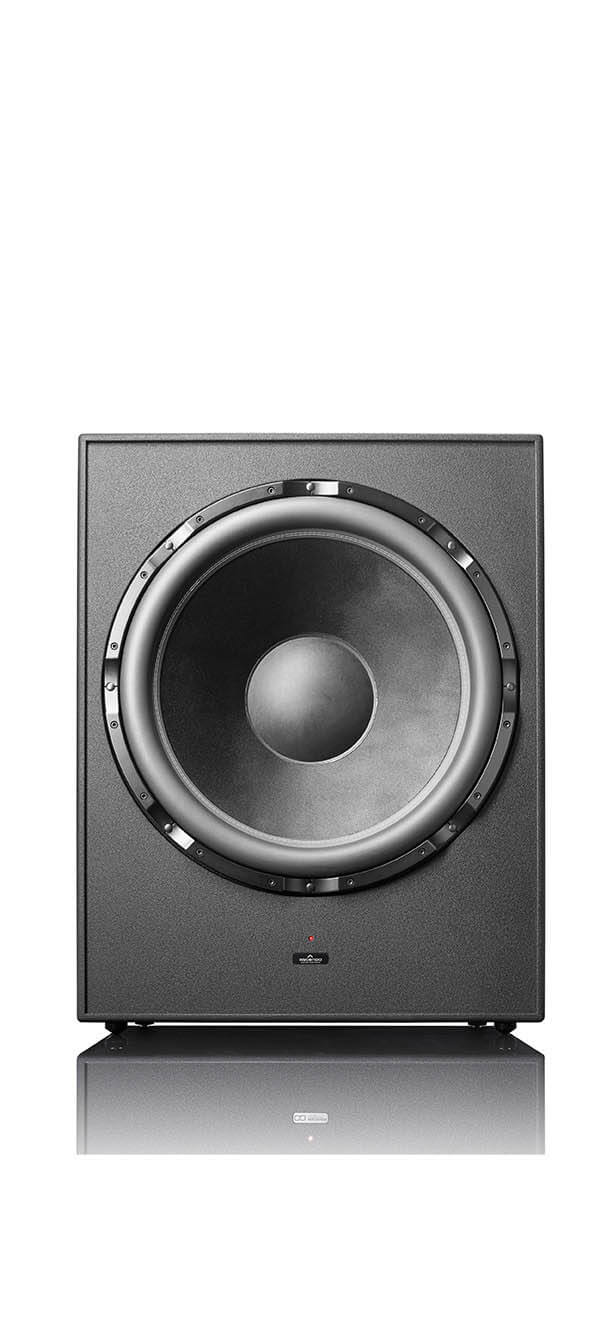

Ascendo The32 SUB PRO PASSIVE SEALED 32″ infra-subwoofer IKKE-PORTET

SKU: The32SubPro
215 000,- inkl. mva
Antall:

Bestillingsvare

500
250 × 300 × 200 cm

Send meg en epost når denne er på lager

Beskrivelse

The The32 SUB PRO PASSIVE SEALED infrasub shifts the benchmarks.

Key figures: 82 cm / 32" custom-built super-woofer, 90 mm of linear travel – the world record for home theater or even commercial cinema subwoofers. The The32 SUB PRO plays in its own league. Authority and impact, speed, dynamics and differentiation, all these attributes the The32 SUB PRO evolves when playing down to the deepest notes in the single digit range. This opens up a new world in lowest bass reproduction. Any comparison will illustrate the sovereignty of its infrasonic bass capabilities.

Displacing an incredible volume of 16.6 liters or half a cubic foot, the The32 SUB PRO pushes as much air per maximum stroke as fifteen standard 18" subwoofers. The The32 SUB PRO allows not only to reproduce lower frequencies, but also a much faster group delay at the same frequencies than the commonly used 18”, 15” and 12" subwoofers in todays home theater and commercial cinema configurations.

The performance of the The32 SUB PRO is unparalleled. This infrasub complements both state-of-the-art cinemas or home theater setups to extend LFE channel reproduction or benefits the best high-end speakers. It dramatically improves the overall performance of all speaker systems.

The32 SUB PRO - more depth, image, structure, resolution, volume, dynamics equals more fun.

Omtaler

Det er ingen omtaler ennå.

Bare innloggede kunder som har kjøpt dette produktet kan legge igjen en omtale.

SPESIFIKASJONER

TECHNICAL DATA

Speaker type 32″ forward-firing woofer, with dual 6,5″ voice coil
Xmax 45 mm Xmax excursion each direction (90 mm linear), voice coil remaining in homogeneous magnetic field
Passive | Active Passive
Recommended amplifiers 2 Amp. channels are required. minimum recommended amplifier voltage swing:  2 x 109 Vrms, 154 Vpk, 27,3 A; equivalent to 3000W@4Ohms per channel, total 6000W with correct RMS & Peak limiter settings (up to 450V = 20kW peak)
Recommended ASCENDO amplifiers DSP4-10K2, DSP4-20K2
Principle Sealed
SPL (Peak / half space 2 pi) Measurement Data
140 dB @32Hz and up
125 dB @20 Hz
109 dB @10 Hz
Frequency range Measurement Data (without ext. DSP)
28 Hz – 500 Hz /   -3 dB
20 Hz – 500 Hz / -15 dB”
 Efficiency 92 dB  / 1W/m 4 pi and 98 dB / 1W/m 2 pi
Power handling 2 x 3000 W up to 2 x 10kW peak
Impedance Dual voice coil, 4 Ω each
Air volume displacement 16,6 L / in comparison 18″ standard cinema subwoofer 1,1 L
Directivity horizontal x vertical in Deg° 360°
Input terminal Neutrik NL4 MP
Enclosure Internally braced birch ply and MDF
Width 37,40 ” | 950 mm
Hight 47,24 ” | 1200 mm
Hight with feet 48,23 ” | 1225 mm
Depth without grill 21,65 ” | 550 mm
Depth with plug 21,65 ” | 550 mm
Weight 339,51 lbs | 154 kg
Finish Structural paint black
Custom colour options Piano lacquer, colour of choice, matt or other finishes upon request
Shape customization Upon request
Mounting Floor standing with feet



Technical modifications subject to change without further notice
