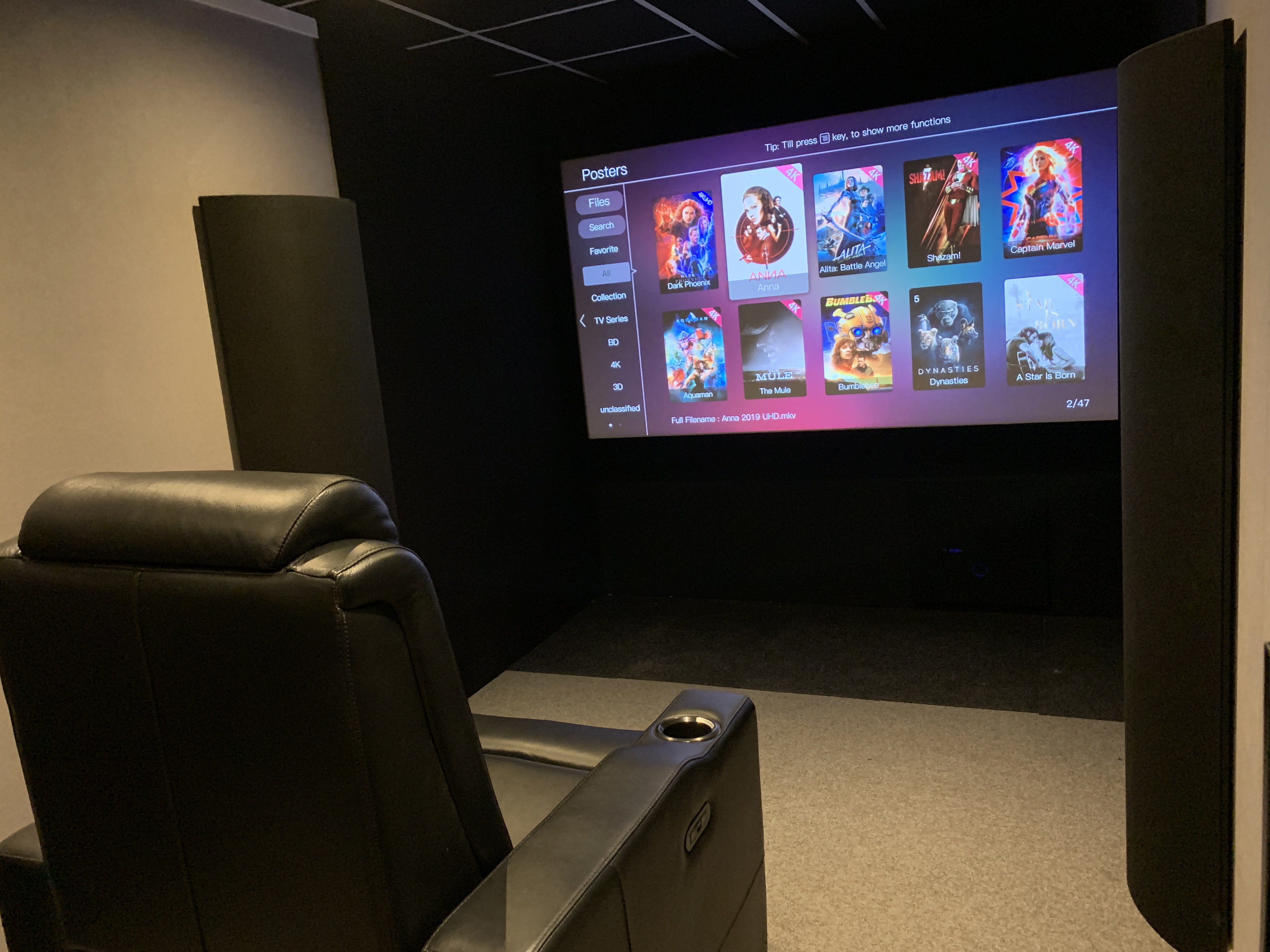

Dfusor platene kombinerer elegant diffusjon og absorbsjon i ett og samme panel. Leveres i enten 60, 120 eller 180cm høyde (alle er 60cm brede og maksimalt 15cm dype). Her ser du de største på 180cm plassert i ett av våre demorom (Egotrippen).
Absorber; meet diffuser!
A common issue when trying to absorb excessive sound waves in a room is to dampen them too much instead. The result is a feeling of less space, and thus reduced realism.
The Dfusor is an excellent diffusor, as the rounded surface makes sure incoming soundwaves are effectively reflected back in a different direction from which it was received. This panel will start diffusing from about 600Hz and upwards.
As the front panel is perforated, the longer sound waves are able to pass through and thus start absorbing as well from about 80Hz and up. However, due to the characteristics of the front cover, the absorbption coefficient is reduced quite effectively from mid-bass levels and up, and will therefore not introduce the unwanted effect of reducing the perceived size of the room even if the panels are placed quite close to the listener.

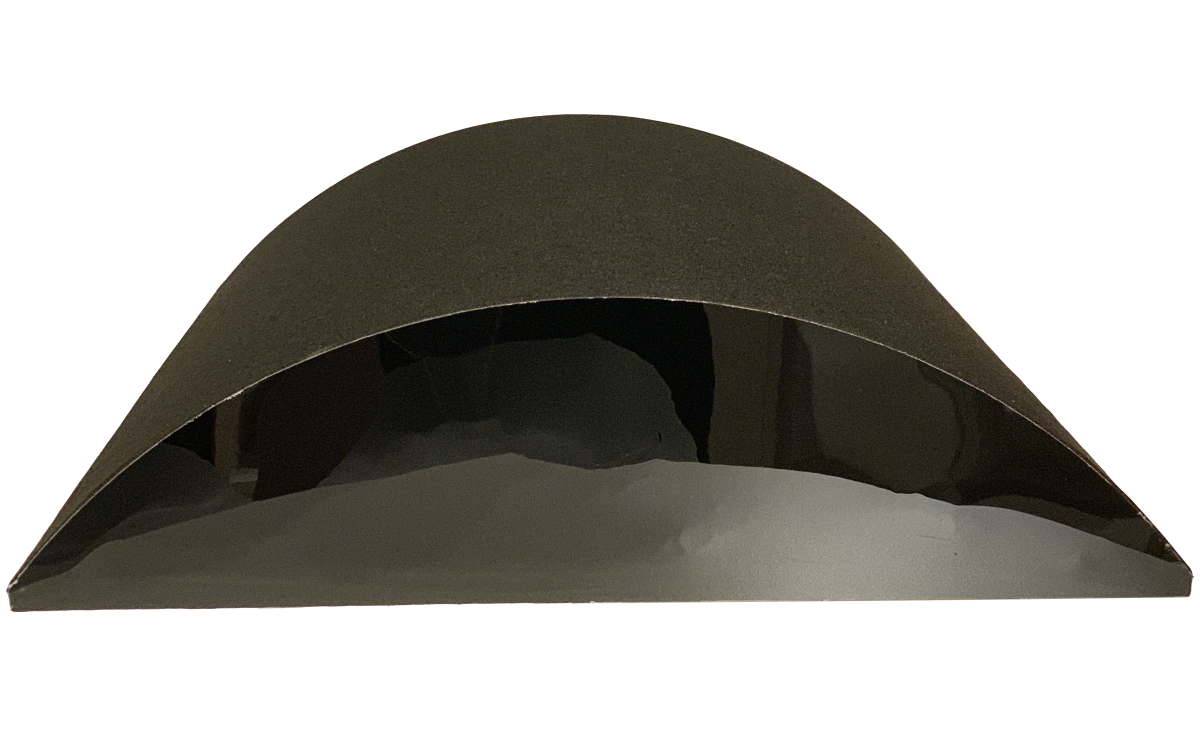

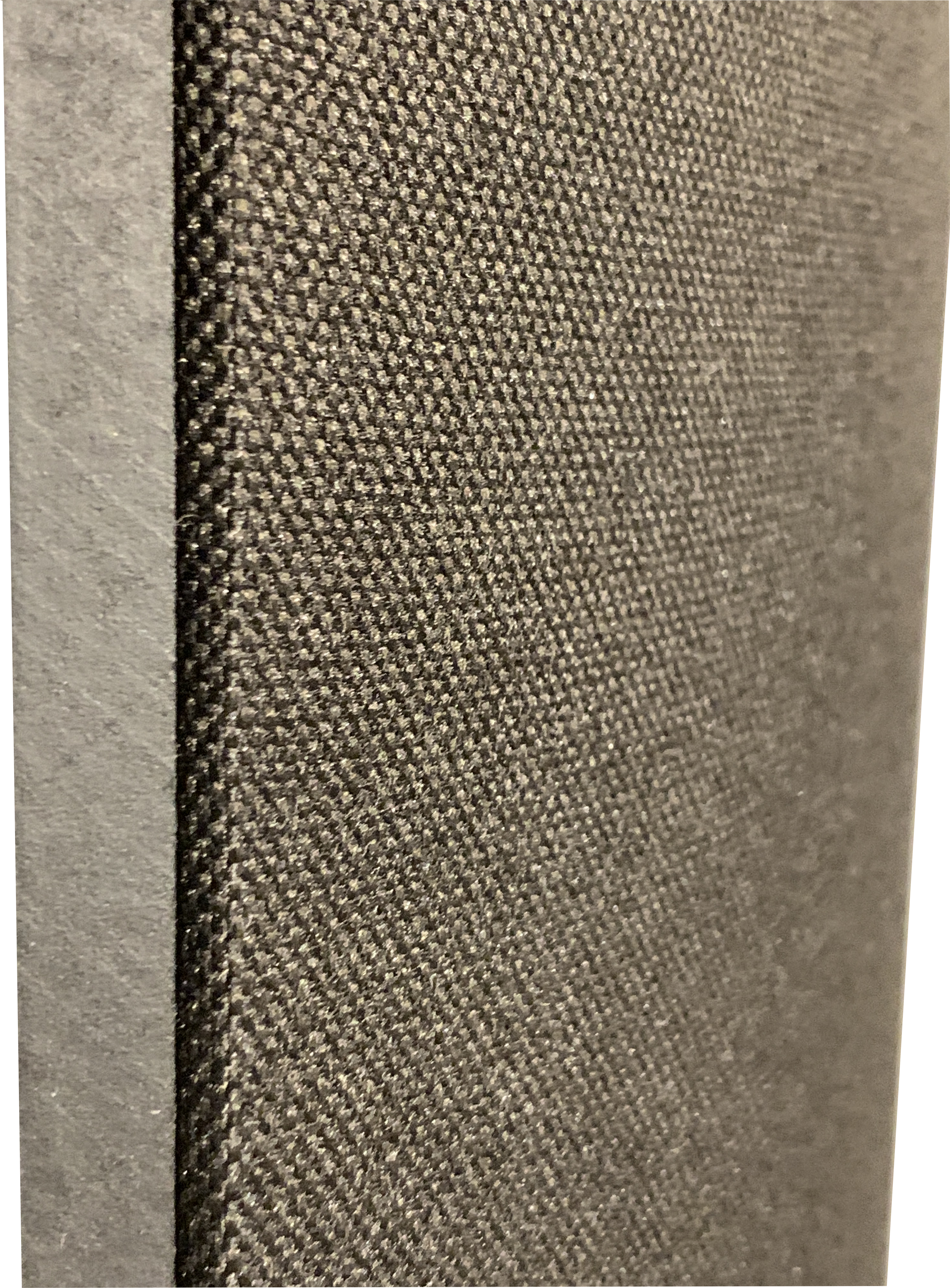

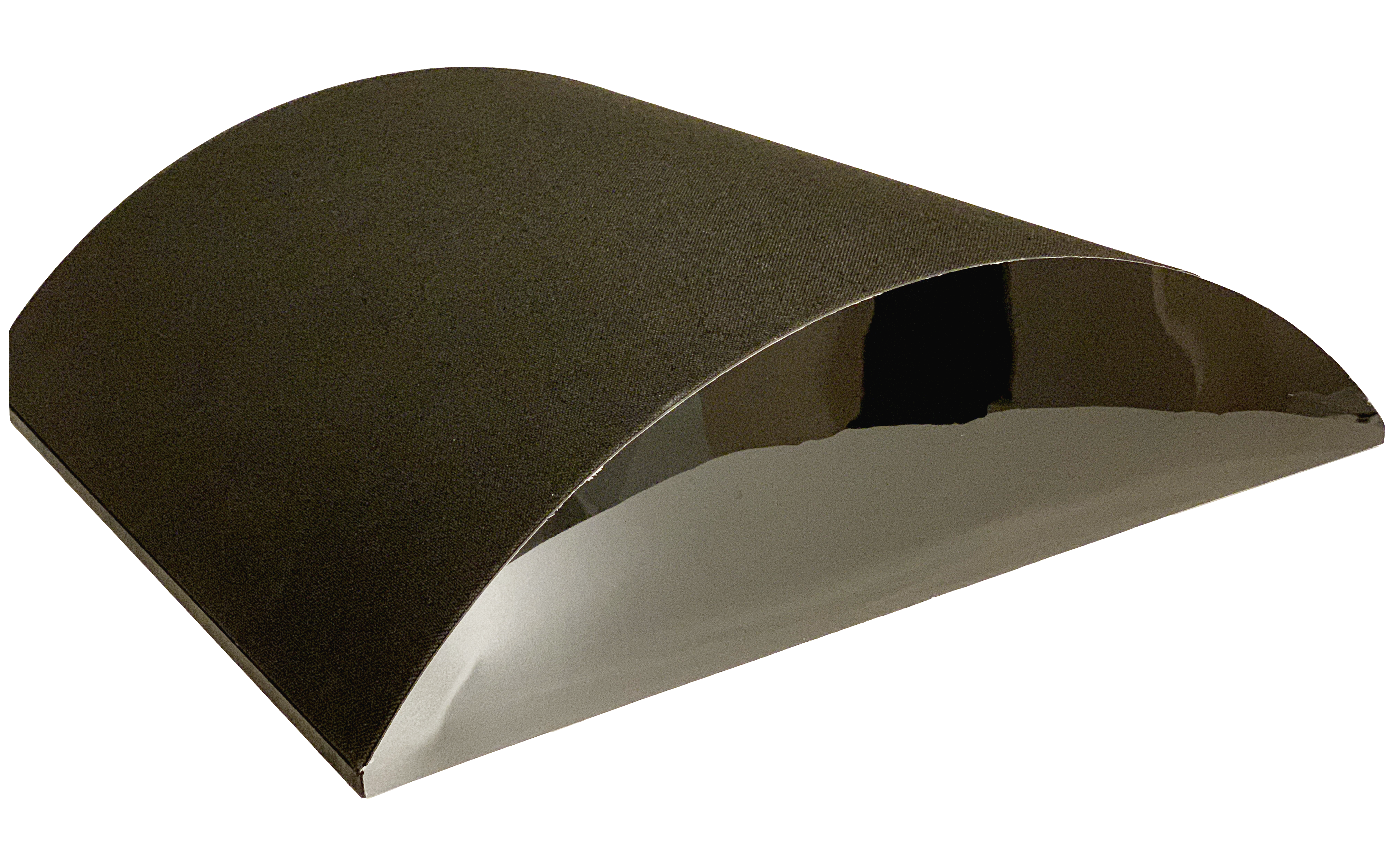

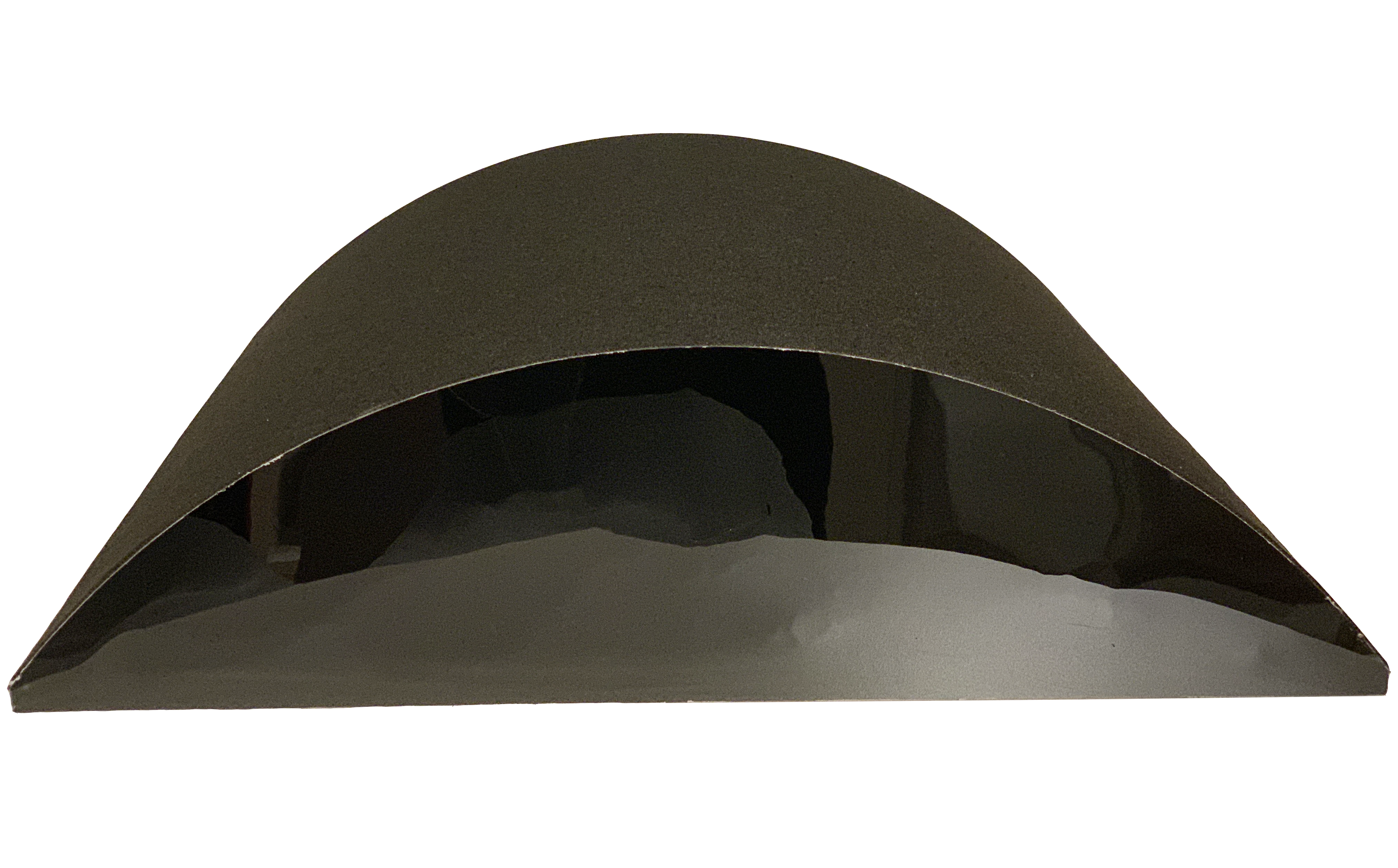

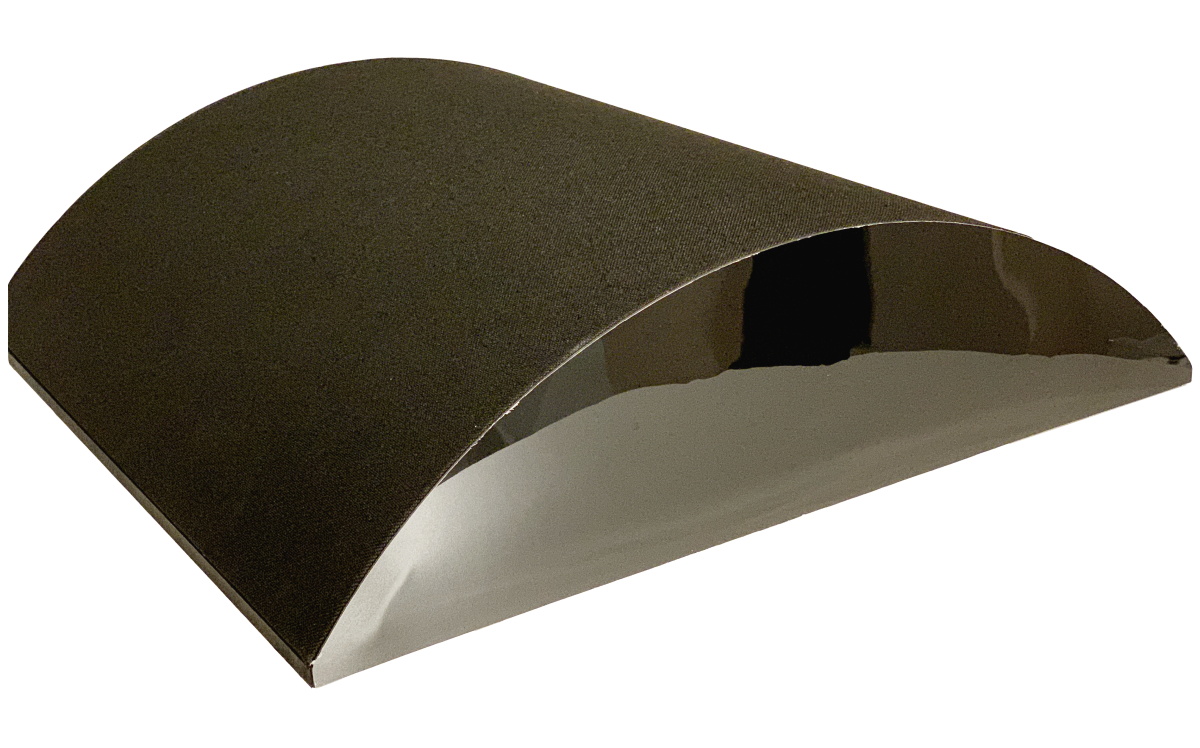

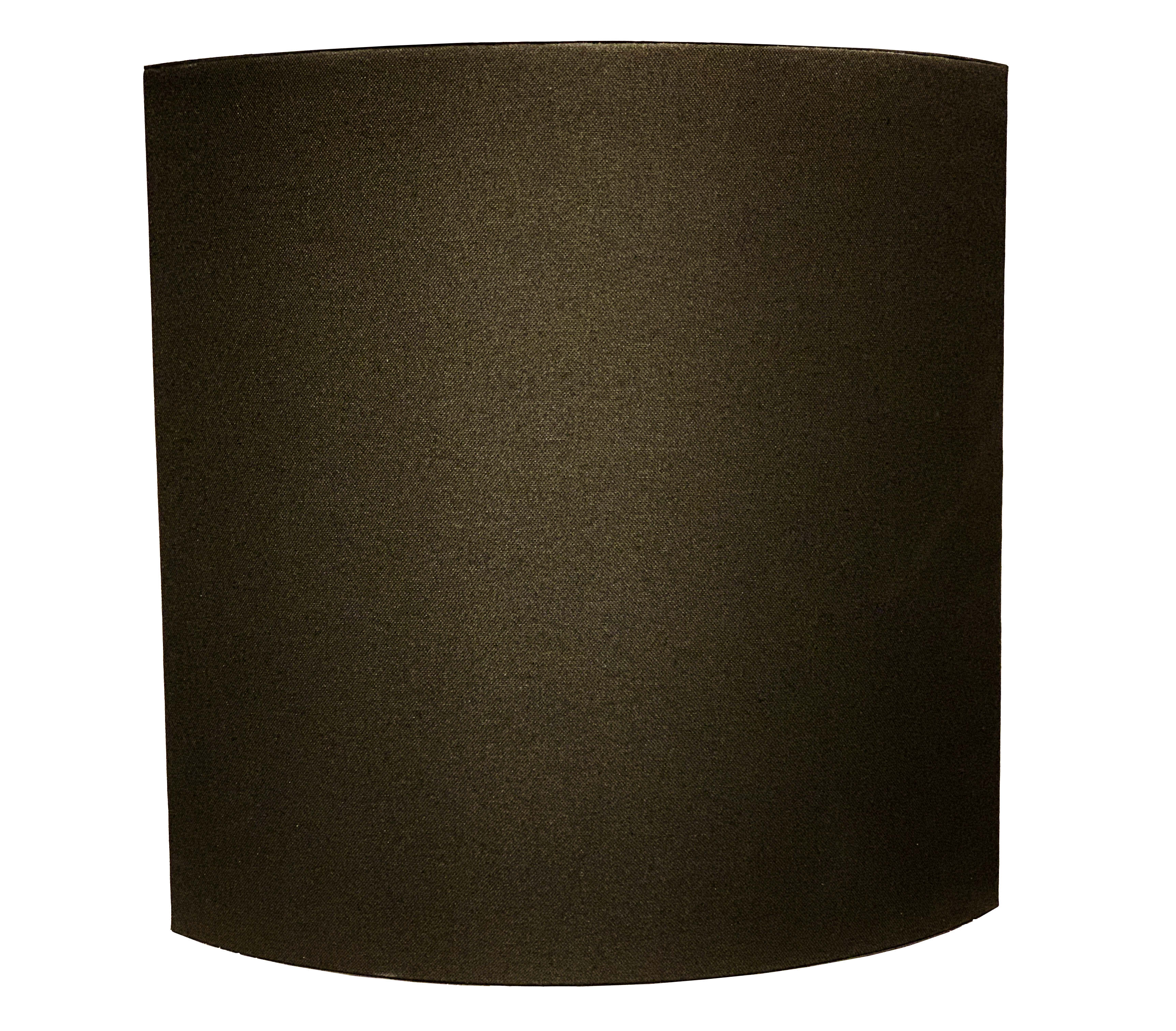

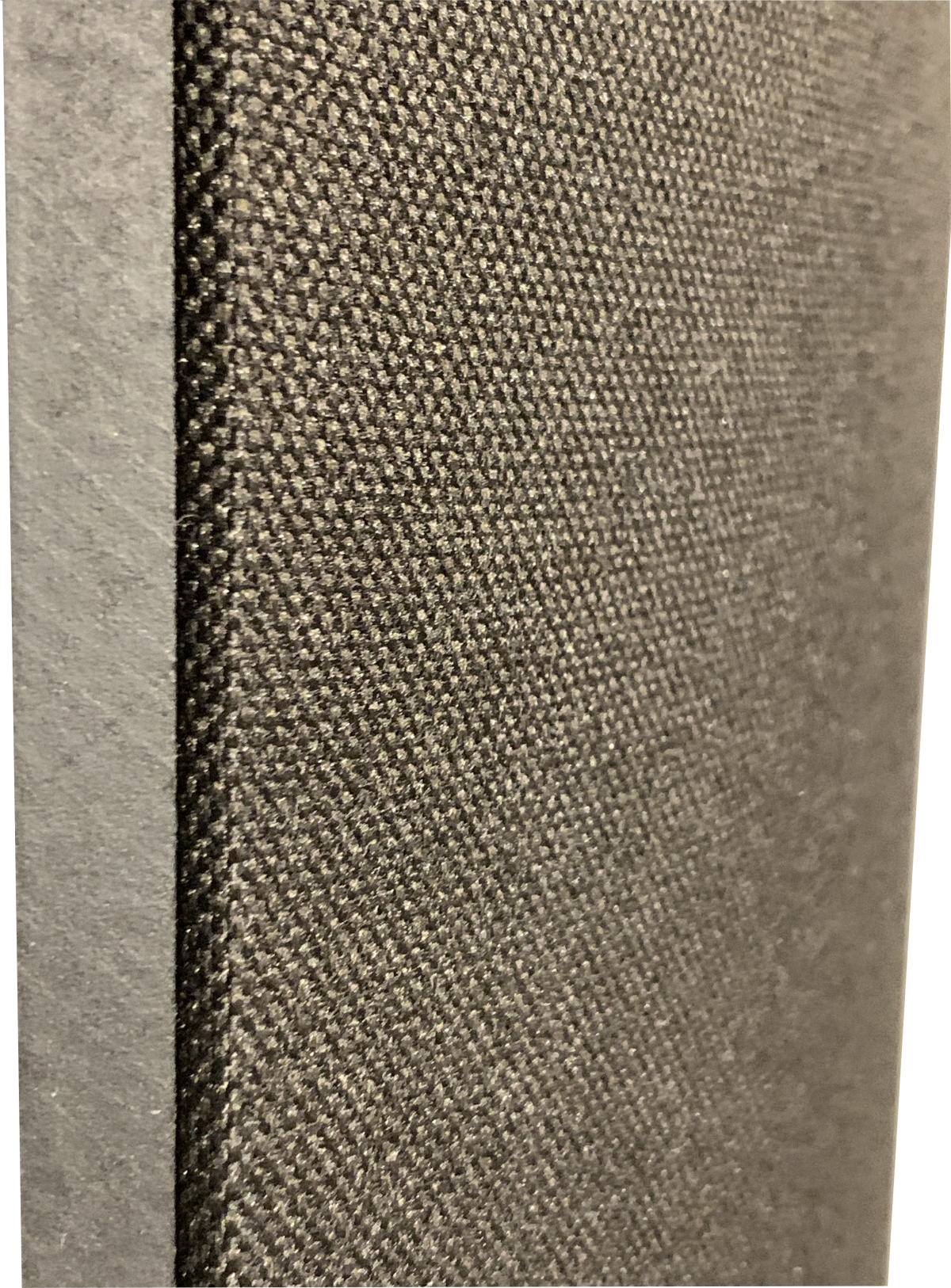

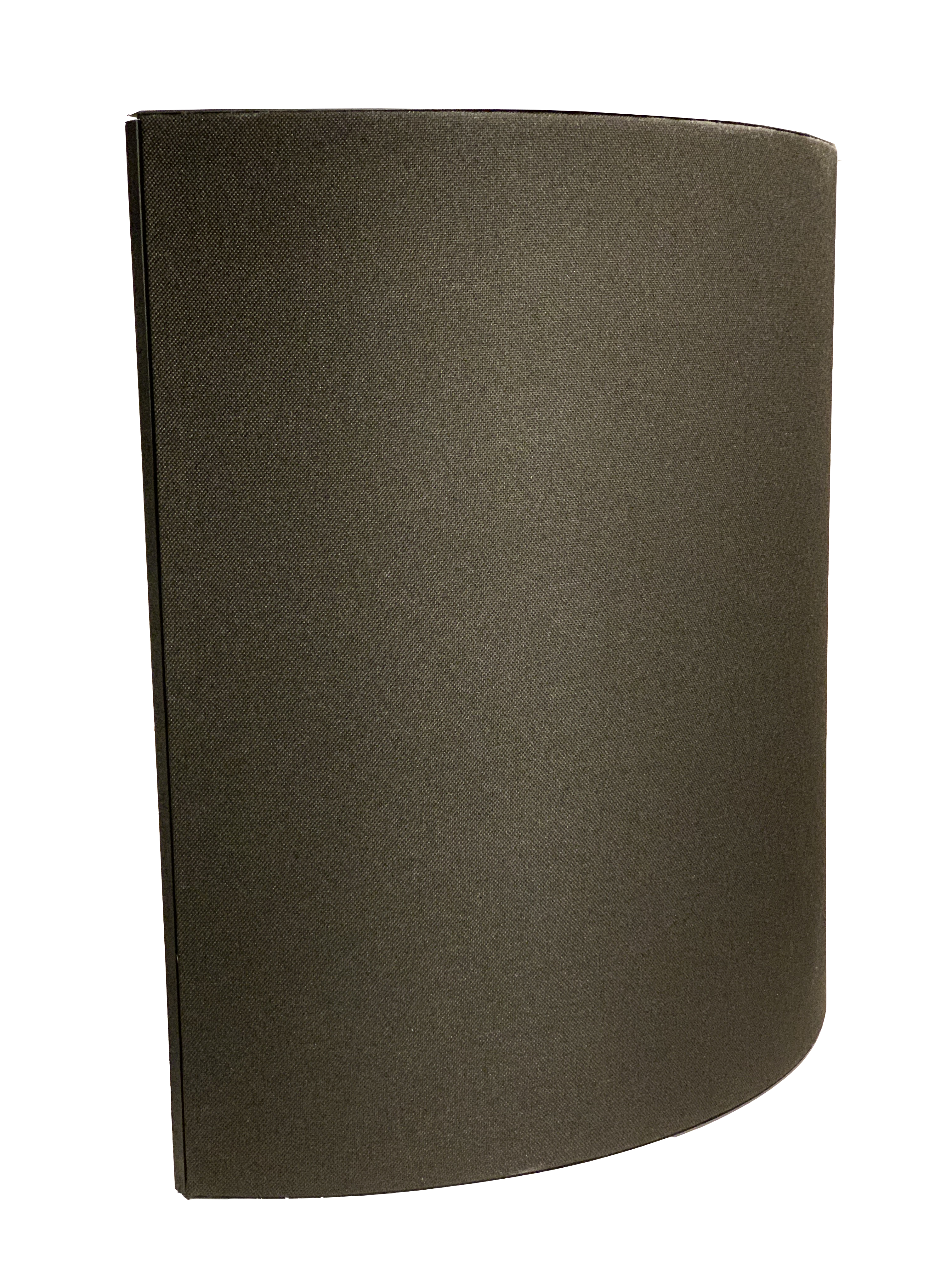

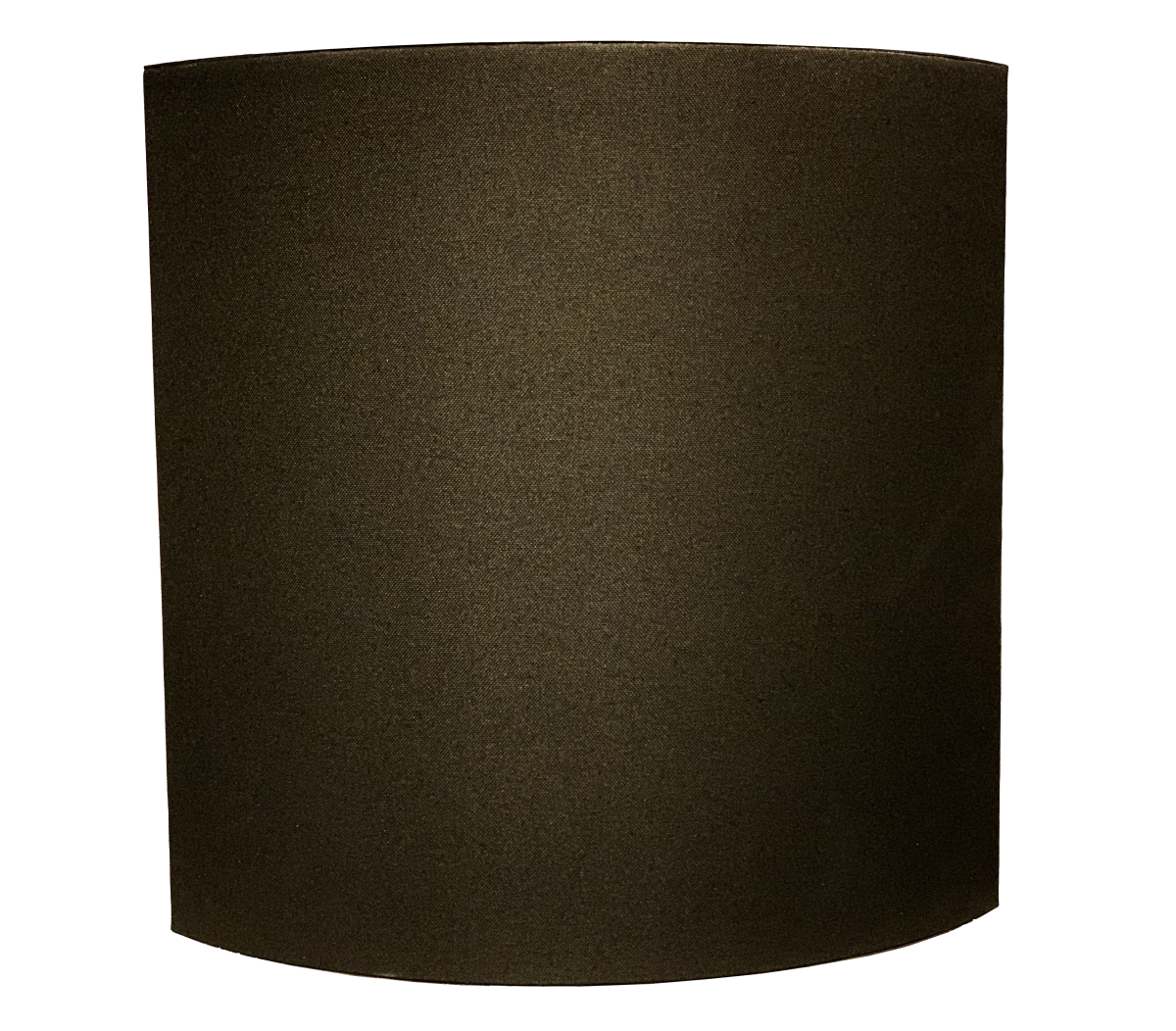

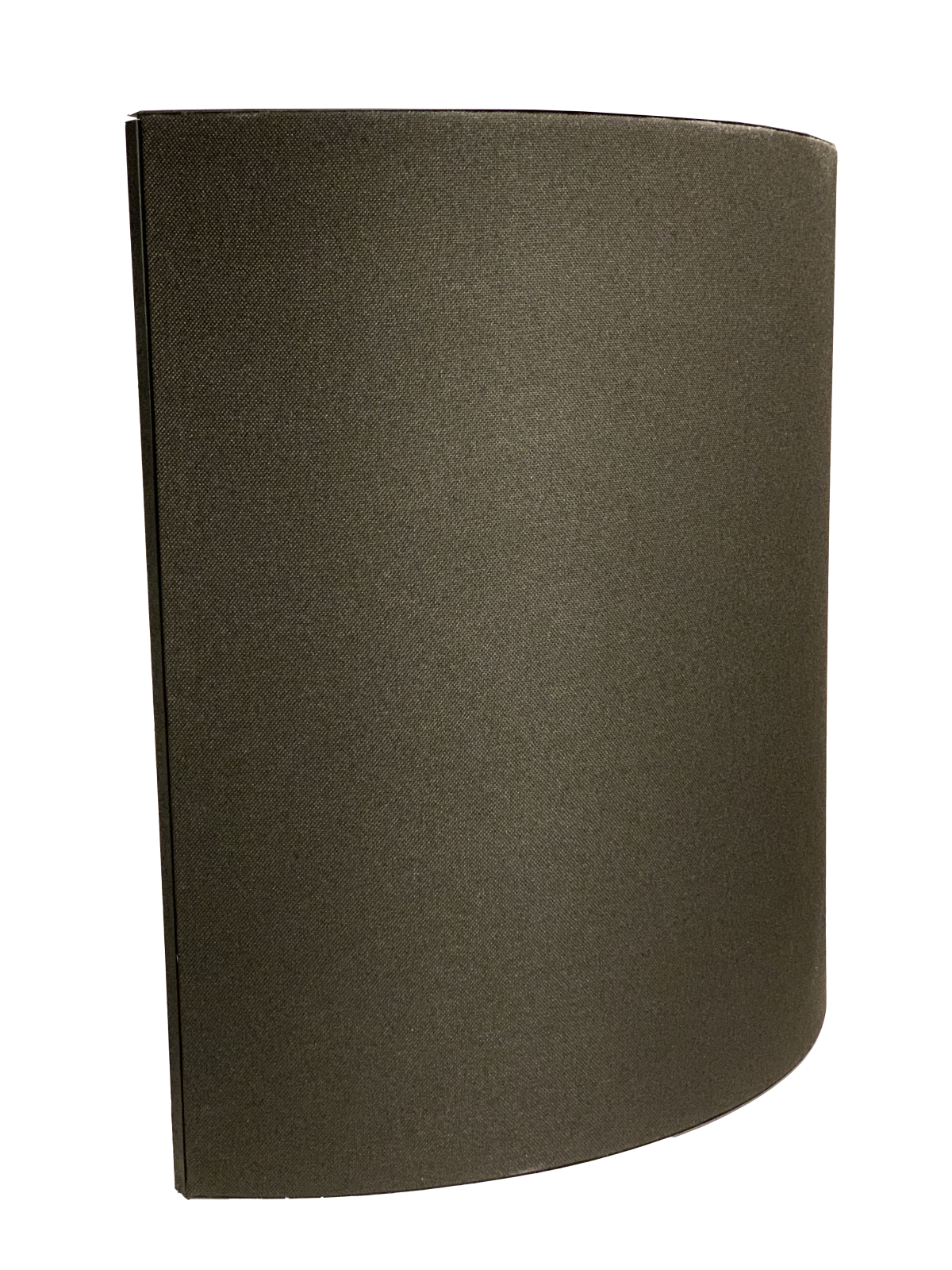

The Dfusor is covered in a black, nicely textured fabric while the top and button is finished with a black plastic cover. Maximum depth of the panel is 15cm, the height 60/120/180cm and the width 60cm (depicted model is the 60x60x15cm). These panels look great in even the most upscale home cinema room!
Due to the panels excellent multifunctional properties, you can place these panels quite close to the listening position, either to the direct side of the listener and/or in the back of the room.
We do reccommend a meter distance or so to give the panel a little room to work it´s (diffusional) magic. Diffusion required a little more distance to function properly than the absorption effect of the panel.
The panels should preferably be glued directly to the wall using a strong construction glue such as Casco Extremefix, alternatively it can be attached using hooks or a tension cord (not included). The panels can also be placed free-standing on the floor.
The panel absorbs quite effeciently from 80-100Hz and up to about 400Hz, after which the panel starts diffusing instead at about 600Hz and up.
