Informasjon fra produsent:
USER MANUAL >>

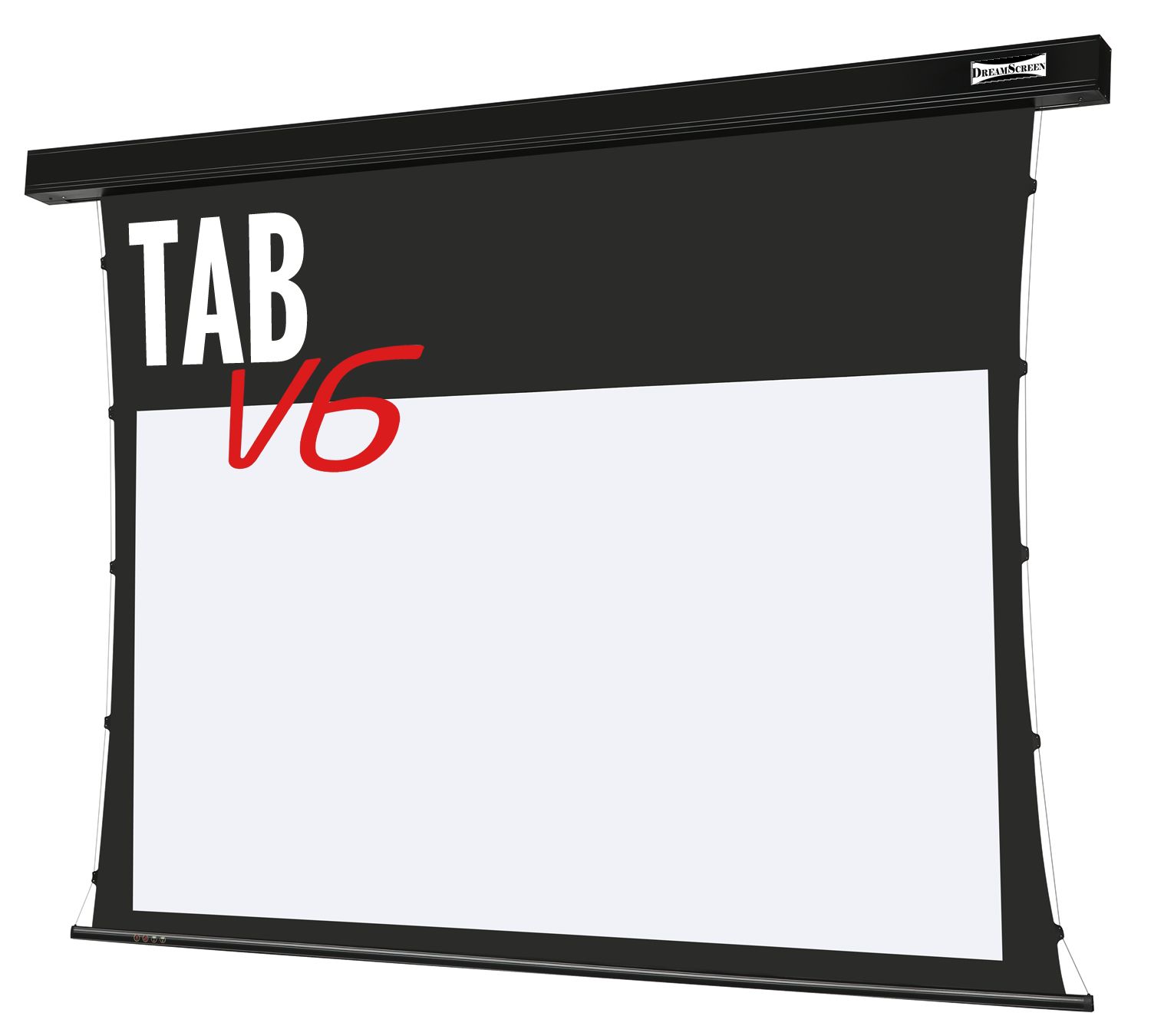

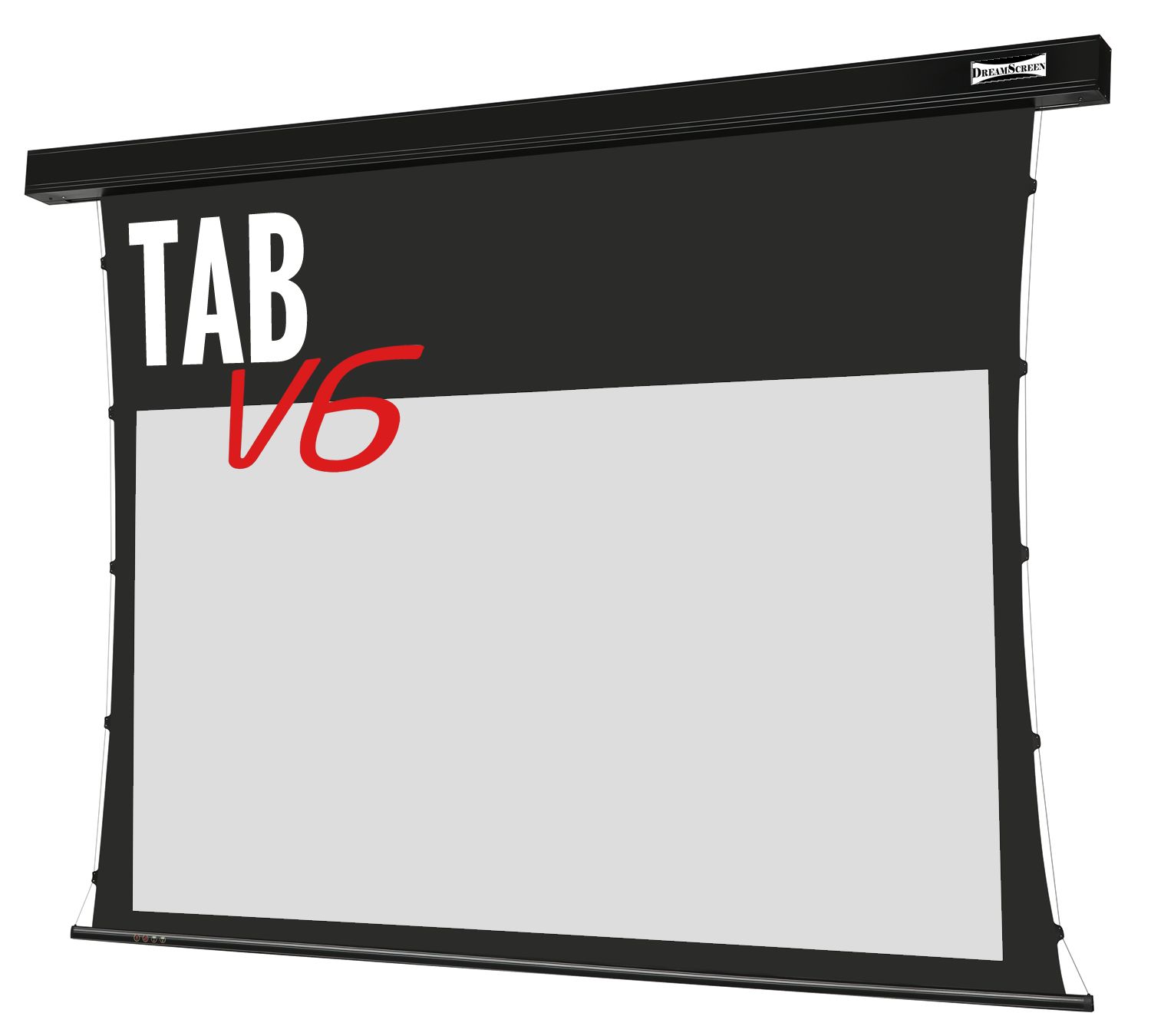

The tab tension mechanism provides you with the most even surface available on a cassette based screen solution. The Tab V6 also features a vast selection of integrated control options such as a cordless 12V trigger and RS232, a brand new 6. generation reference quality D65 tuned screen fabric in either grey or white as well as an updated, sleek cassette design available in both black and white.

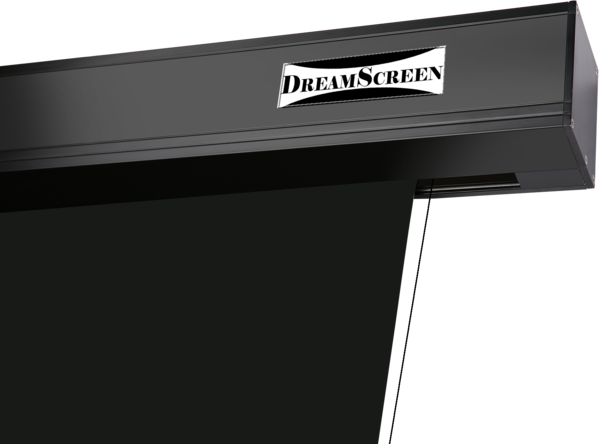

The V6 featues a new contemporarily designed square cassette
Our new V6 Tab includes a huge amount of control options. First, the basic IR remote control is included. IR also allows you to use Logitech Harmony or any other universal remote systems to create a macro that - for example - moves the screen down when the projector is turned on and back up when the projector is turned off. Furthermore, a regular manual wall box is included.
For more advanced setups, a 12V cordless trigger is included. Providing that your projector or AV-receiver has a 12V trigger output, you can use this trigger functionality to automatically pull the screen down and up, for example when the projector is turned on and off. For even more integrated setups, an RS232 control option is also available. RS232 is used by a number of control-systems such as Crestron, Control4 and iRule.
12V wireless trigger is also included
Available with either DynaGrey or BrightWhite
The tension system allows us to use the same fabric on our tensioned screens that we use for our reference quality UltraFrame framed screens. By avoiding the use of fiber threads, common regularly motorized screens as well as a number of tensioned screens supplied by others, we are able to provide a seamless structural appearance that allows you to be seated very close without being bothered by visible structure from the fabric.
The Tab V6 is including either a brand new V6 version of the DynaGrey light grey fabric with a gain-factor of 0.8 or the new 6. generation BrightWhite matte white fabric with a gain of 0.95.
The DynaGrey is our recommended choice for most regular setups in living rooms where walls and ceiling is typically white / light colored and thus reflective. The grey nuance in the fabric reflect less from the surroundings than a regular white fabric and therefore delivers improved image dynamics. However, this is at a cost of gain (the amount of light reflected), about 20% less compared to the BrightWhite fabric. Still, since image dynamics and contrast is of such importance for the perceived quality of the image, our clear recommendation is to use the BrightWhite fabric only in highly light-reflective-controlled rooms with dark / non-reflective ceilings, floors and walls surrounding the screen.
- Tab-tension mechanism in high quality for an even surface
- Superfine structured fabric, no use of coarse fiber-threads as in most regular motorized or manual screens

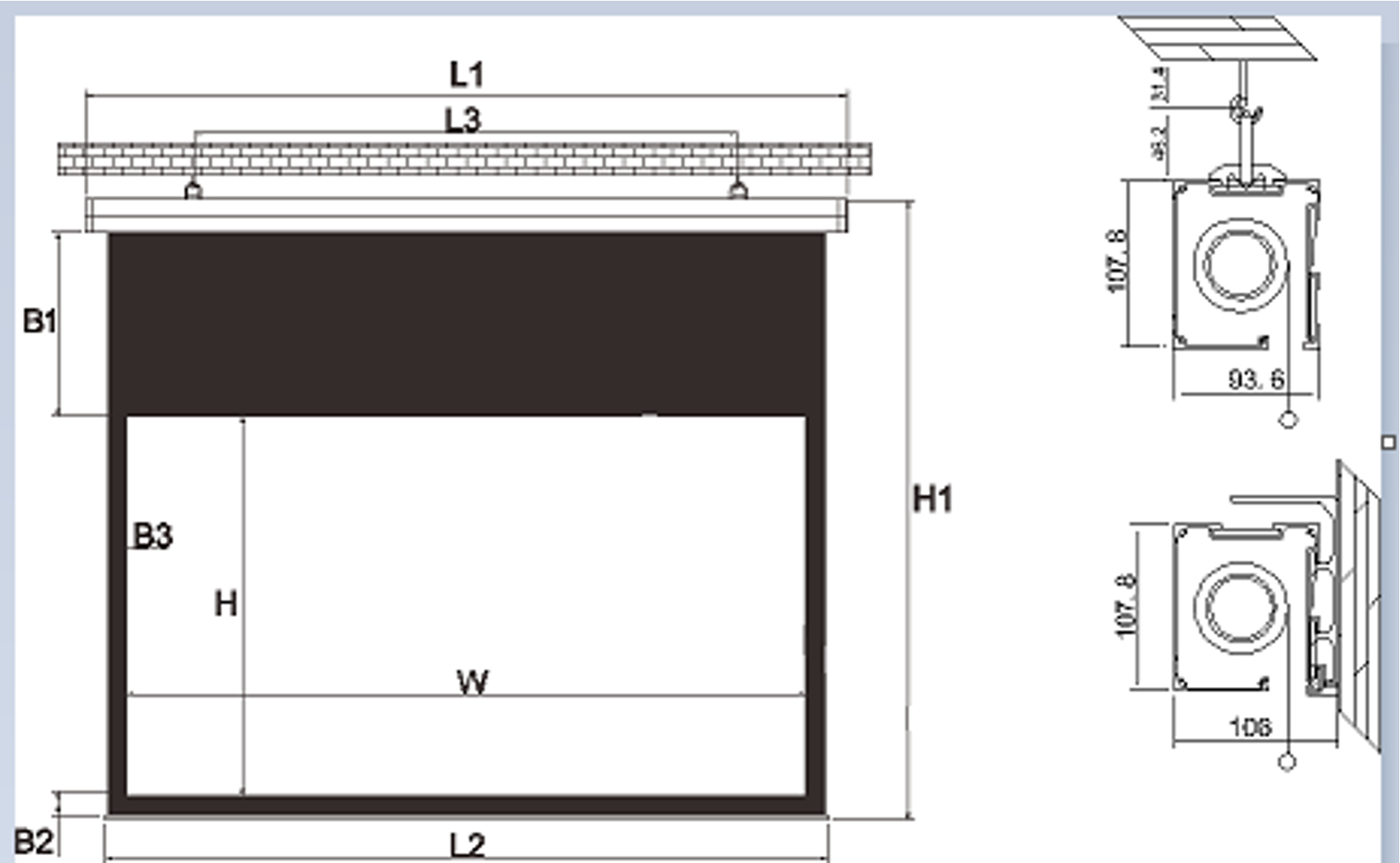

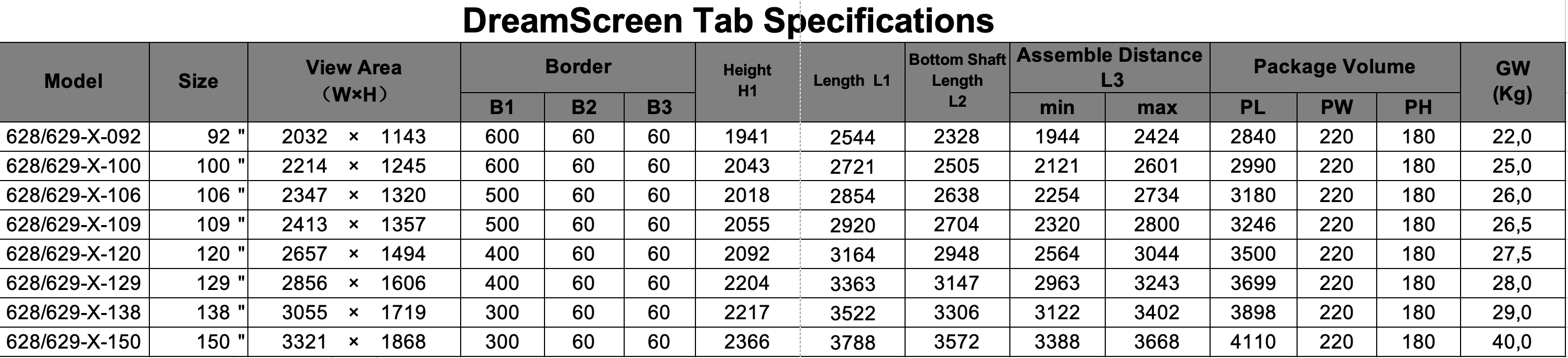

- 5 cm side masking and 30-60cm top black drop (can be adjusted flexibly, black drop varies by size, please see "B1" in chart below)
- Possible to install both flush in ceiling, ceiling using hooks or wire and regular wall

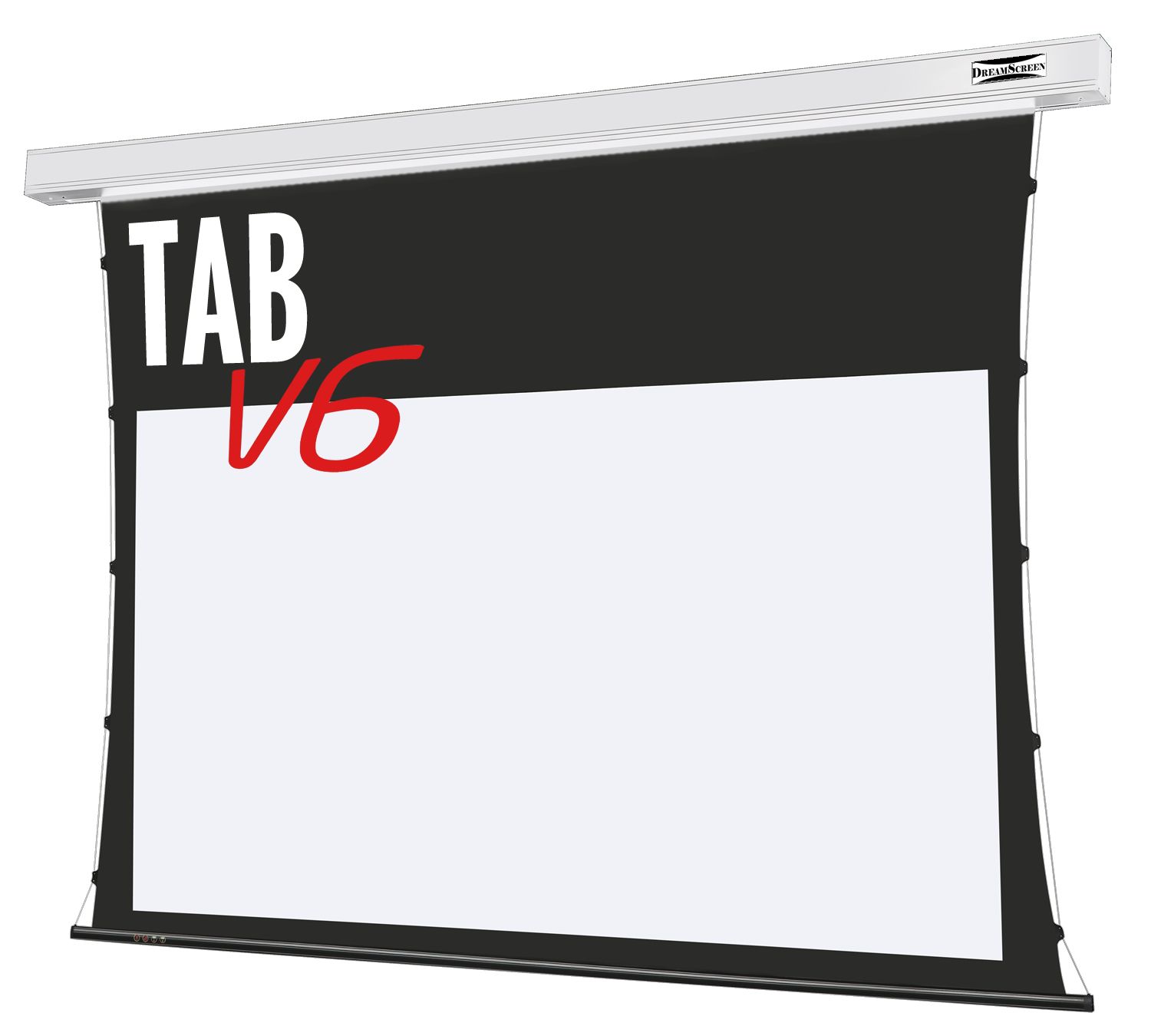

- Stylish cassette in either black or white painted aluminum
- IR-remote, manual control box, 12-volt cordless trigger and RS232 control systems
