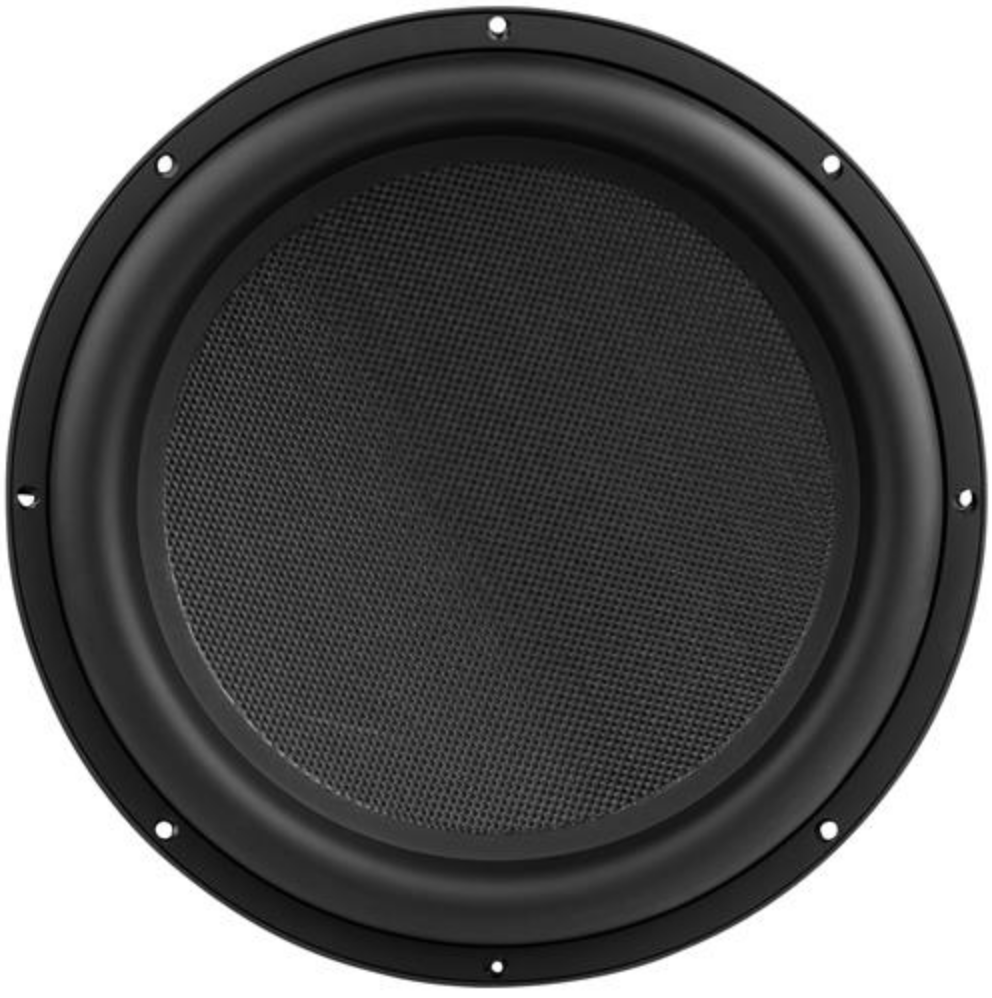

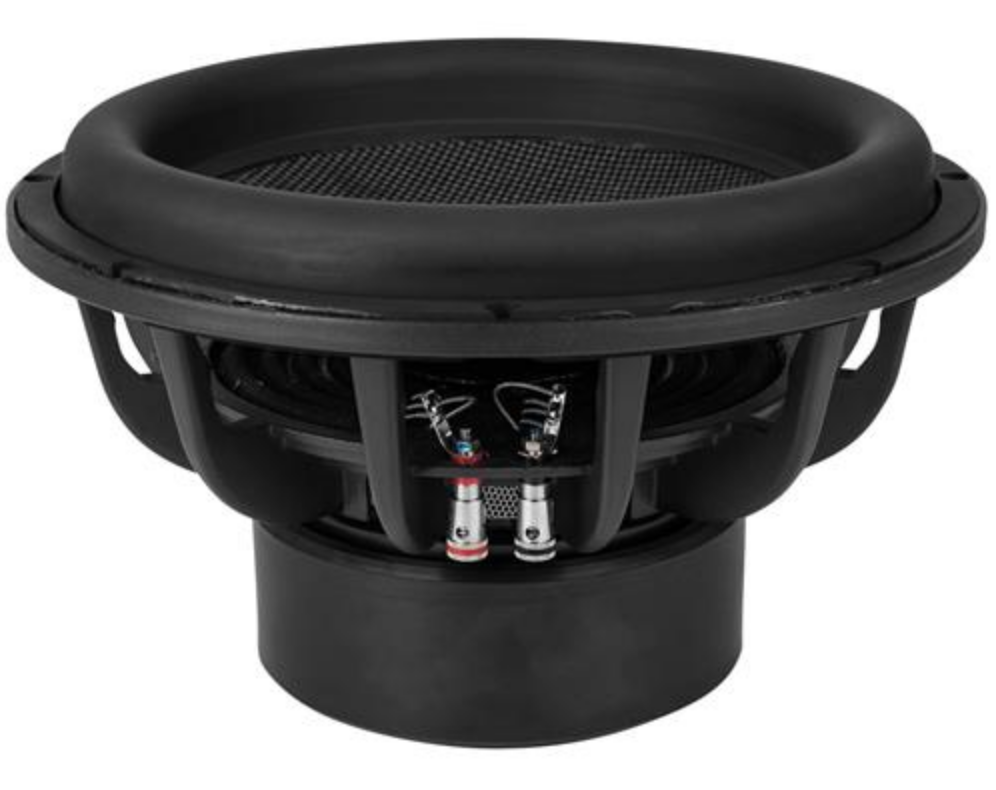

Hamrammr SUB15 15″ Subwoofer driver 800W RMS

SKU: HAMRAMMR_SUB15
Driveren som står i Hamrammr sine testvinnende 15-toms subwoofere kan nå kjøpes i løsvekt - perfekt for alle DIY-ere der ute!

5 499,- inkl. mva

Kun 10 på lager

Produktnummer: HAMRAMMR_SUB15 Kategori: Stikkord:

Beskrivelse

NYHET! Superkraftig 15″ driver fra Hamrammr med FS nede i 19,5Hz, xmax på hele 19mm og 800W RMS.

Informasjon fra produsent:

Highlights
  • Sweeps massive amounts of air!
  • Over 1-1/2″ of total cone travel
  • 800 watts RMS power handling
  • The latest in subwoofer technology
  • Dual linear stiffness spiders limit distortion and rocking modes
  • Dual 2 ohm, 2-layer copper voice coils
  • Large vented pole piece and under-spider venting

If you want outrageous amounts of bass, you gotta move some air

The Hamrammr Sub15 Series of dual voice coil subwoofers, from Hamrammr, are not for the faint of heart. Built using the latest in subwoofer technology, Hamrammr subwoofers are the pinnacle of low frequency driver design. An Hamrammr subwoofer tests the strength of your foundation with fast, articulate, gut-wrenching bass.



The versatility you need for mobile, home, or pro subwoofer excellence

Dual 2 ohm voice coils allow for stereo 2 ohm and mono 1 ohm wiring configurations when connecting to high current car audio and professional audio amplifiers to extract maximum power. For home audio applications, simply wire the voice coils in series for a benign 4 ohm load for greater amplifier compatibility.



Built to produce massive low frequency output and keep on doing it

To improve power handling, increase thermal management, and reduce power compression, Hamrammr designed the SUB-series with large black anodized formers and vented pole pieces, under-spider ventilation, and two-layer copper voice coils.

Over 1-1/2″ of travel (3/4″ Xmax) is kept completely linear through the use of dual spiders that also limit distortion and rocking modes. “Tall-boy” rubber surrounds with integrated gaskets maintain driver surface area during extreme excursion moments. Thick, one-piece Nomex honeycomb covered cones are covered with woven, heavy-duty glass fibers creating ultra-still cones that resist deformation.





Cabinet recommendations:
• Sealed 3.1 cubic ft. (net internal) with 3 lbs. of Acousta-Stuf polyfill, f3 of 35 Hz with a 0.707 Qtc alignment
• Vented 6.0 cubic ft. (net internal, not including driver or port volume) with 6 lbs. of Acousta-Stuf tuned to 18 Hz with two 4″ diameter by 26″ long flared ports for an f3 of 22 Hz. Larger cabinets and lower tuning frequencies are possible.

Note: All parameters derived with voice coils wired in series.



Product Specifications
  • Nominal Diameter15″
  • Power Handling (RMS)800 Watts
  • Power Handling (max)1600 Watts
  • Impedance4 ohms
  • Frequency Response15 to 1,000 Hz
  • Sensitivity86.5 dB 2.83V/1m
  • Voice Coil Diameter2.5″
Thiele-Small Parameters
  • Resonant Frequency (Fs)19.5 Hz
  • DC Resistance (Re)3.4 ohms
  • Voice Coil Inductance (Le)1.31 mH
  • Mechanical Q (Qms)2.40
  • Electromagnetic Q (Qes)0.59
  • Total Q (Qts)0.47
  • Compliance Equivalent Volume (Vas)7.92 ft.³
  • Mechanical Compliance of Suspension (Cms)0.24 mm/N
  • BL Product (BL)15.4 Tm
  • Diaphragm Mass Inc. Airload (Mms)279.4g
  • Maximum Linear Excursion (Xmax)19 mm
  • Surface Area of Cone (Sd)814.6 cm²
Materials of Construction
  • Cone MaterialNomex / Glass Fiber
  • Surround MaterialRubber
  • Voice Coil Wire MaterialCopper
  • Voice Coil FormerAluminum
  • Basket / Frame MaterialCast Aluminum
  • Magnet MaterialFerrite
Mounting Information
  • Overall Outside Diameter15.28″
  • Baffle Cutout Diameter13.78″
  • Depth7.55″
  • Bolt Circle Diameter14.65″
  • # Mounting Holes8
Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)
  • Sealed Volume3.98 ft.³
  • Sealed F333 Hz
  • Vented Volume11.1 ft.³
  • Vented F317 Hz
  • Weight: 16kg
