| This FusionAmp can be the basis of e.g. a powerful active subwoofer or a two-way monitor.
The FA252 has two 250 Wrms Ncore® amplifiers which can also be bridged to form one powerful 500 Wrms amplifier.
Dimensions: 315 * 135 x 55 mm
Weight: 1000 gram
At the moment, a preliminary user guide is available. Further documentation will be available soon.
Pre ordering only for max 2pcs, higher quantities will be split up, shipping starts in June. First come, first serve.
Specifications
Connections
Analogue balanced XLR in and through
Analogue unbalanced RCA input
Digital AES in and through
Digital S/PDIF in and through
Digital Optical TosLink input
USB 2.0 configuration interface
Features
15 biquads per amplifier
Three selectable presets for filters
Source selection
Signal detect
Auto shutdown
BTL capable
Clip protect
Thermal protect
Filter protection

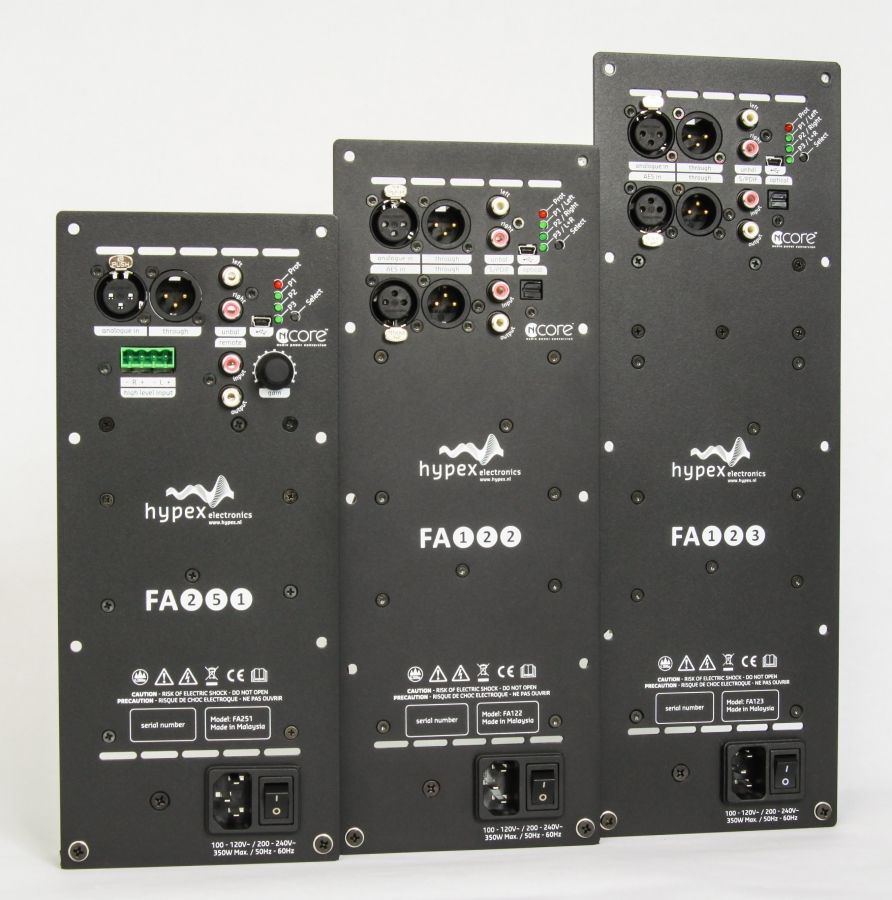

Meet the family
The Fusion Amp family consists of the following models:
FusionAmp One-Way models:
FA251, 1x250W
FA501, 1x500W
FusionAmp Two-Way models:
FA122, 2x125W
FA252, 2x250W
FA502, 2x500W
FusionAmp Three-Way models:
FA123, 2x125W + 100W Tweeter
FA253, 2x250W + 100W Tweeter
FA503, 2x500W + 100W Tweeter
What is included in the box:
The FA252
A printed copy of the user guide
Speaker connection cables
What is not included in the box:
Basically anything else, so additionally order, if you need:
Fusion IR Receiver Kit
All modules can be extended with the Fusion IR Receiver Kit. This set contains a PCBA with IR receiver and bi-colour LED, and the necessary cable (125cm). This set is available for separate purchase
Hypex Remote
The Hypex Remote which can be used in combination with the Fusion IR Receiver Kit to control volume, source and put the system into standby.
Fusion Mounting Screws
The Fusion Amp must be mounted into the speaker cabinet with 8 or 10 screws. This set contains 10 self-tapping, black, Pozidriv screws, 3.9x20mm.
USB 2.0 Cable
USB Type A Plug – Mini USB Type B Plug,
Powercord EU
IEC 60320 C13 – IEC Type F
Used in: Germany, Austria, the Netherlands and Spain among others. |
