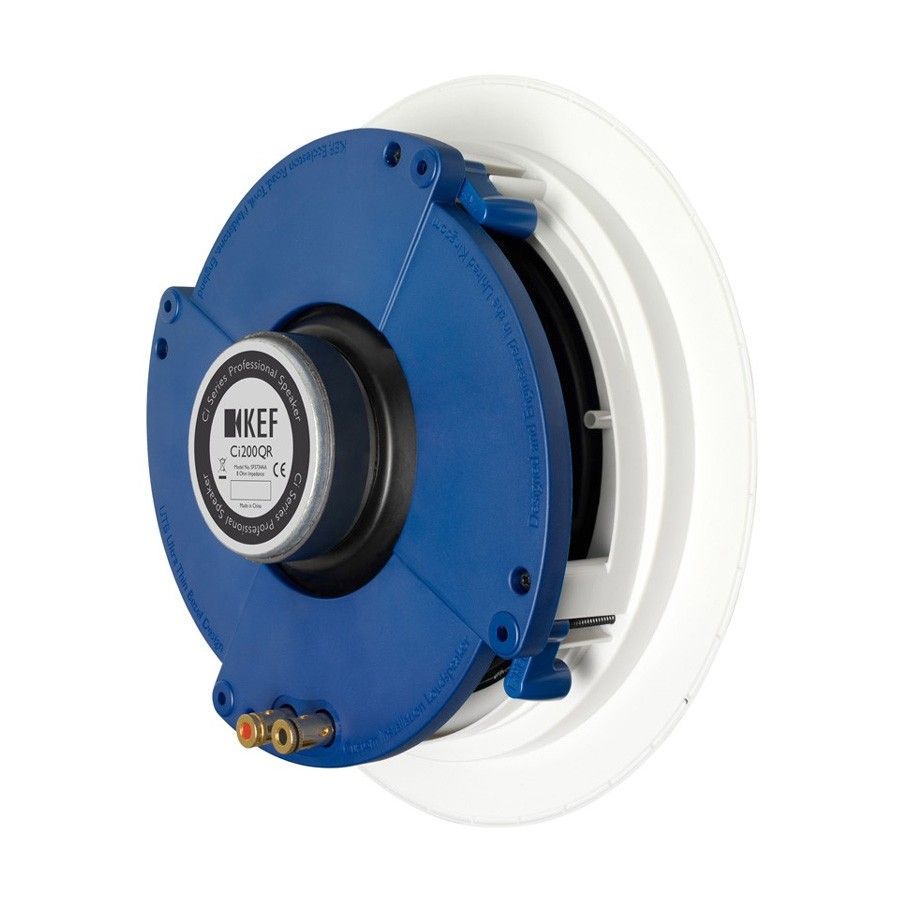

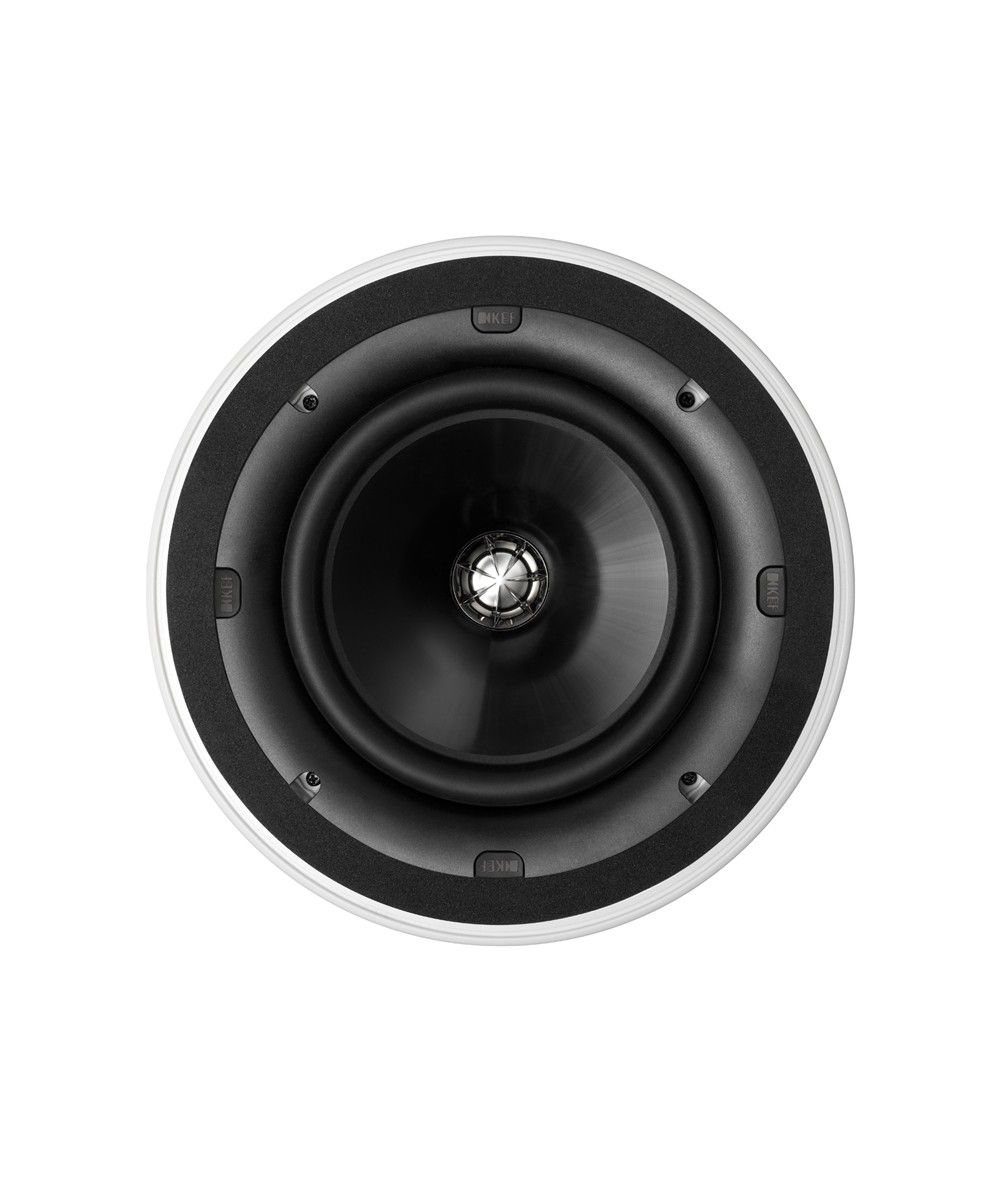

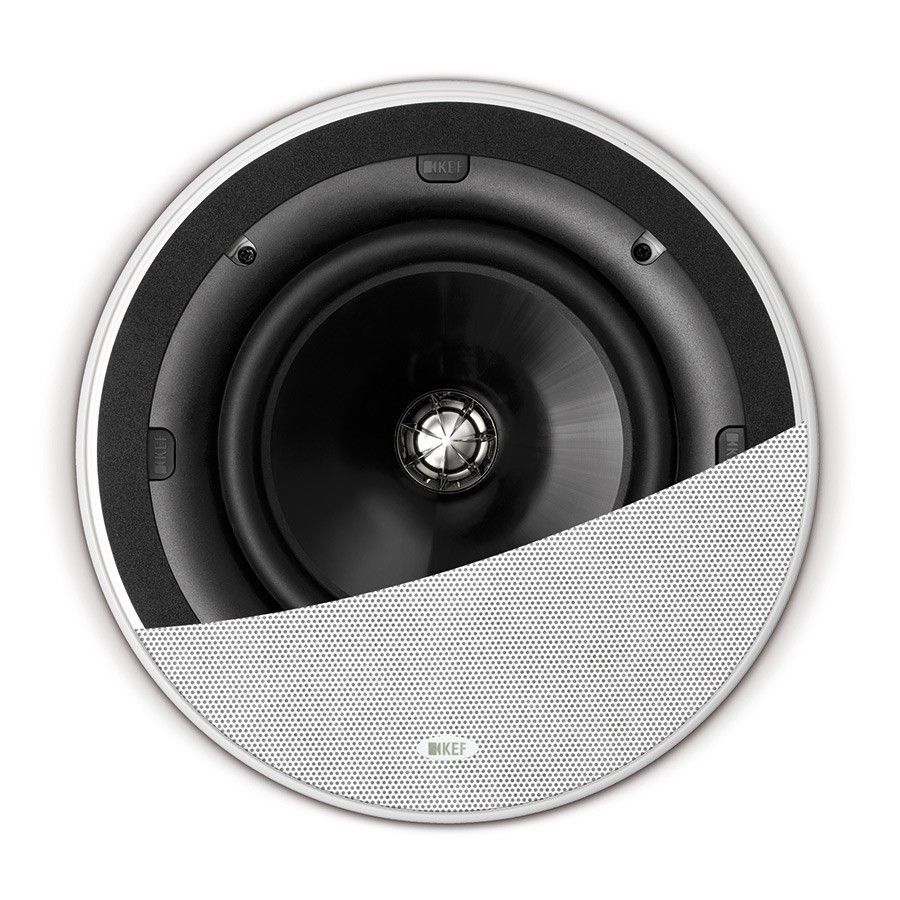

Ci200QR
Featuring KEF’s sophisticated ‘sit anywhere’ Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Ci Q Series range gives you tremendous freedom to position the speakers where you please
Key Features
- UTB™ Ultra Thin Bezel
- 200mm (8.0in.) Uni-Q driver array
- 25mm (1.0in.) Aluminium dome tweeter and ‘tangerine’ waveguide
- Gold plated spring loaded binding posts
Nominal Impedance | 8 Ω |
---|---|
Sensitivity | 90dB (2.83V/ 1m) |
Frequency Response | 35Hz – 34kHz (±6dB) 2pi/open-backed |
Drive Units | LF: 200mm (8.0in.) HF: 25mm (1.0in.) |
Recommended Amplifier Power | 10 – 150W |
Product external dimensions | Diameter : 289.6mm (11.4in.) Depth : 109.8mm (4.33in.) |
Cut-out dimensions | Diameter : 240mm (9.45in.) |
Mounting depth from surface | Product only : 103.3mm (4.07in.) |
Optional rough in frame | RIF200R |
Unit measurement | Piece |
Document Download | User Manual Ci Series Pamphlet Ci Series Specification Sheet Ci Series Minimum Cabinet Volume Chart EASE GLL Data Product drawing |
