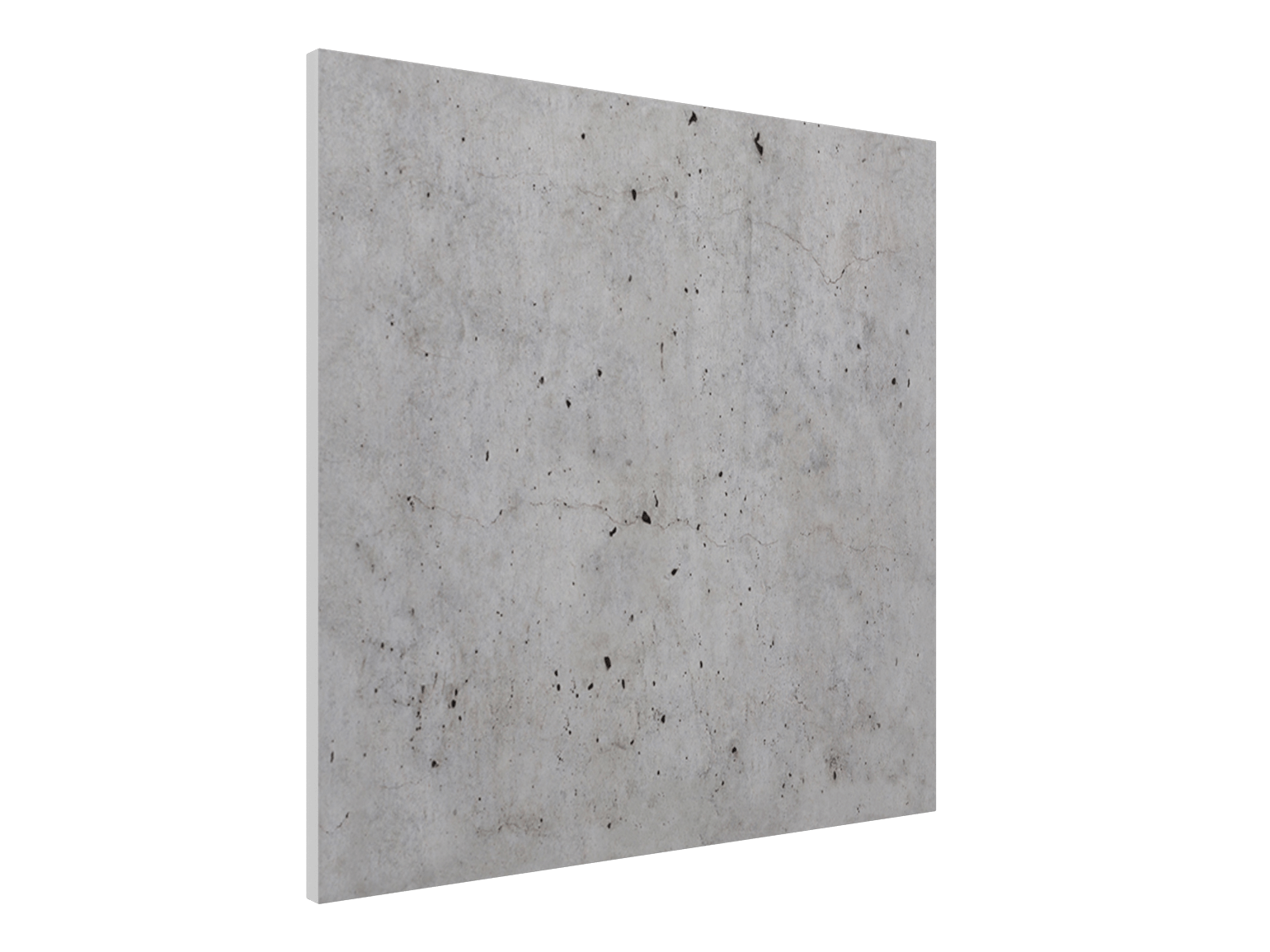

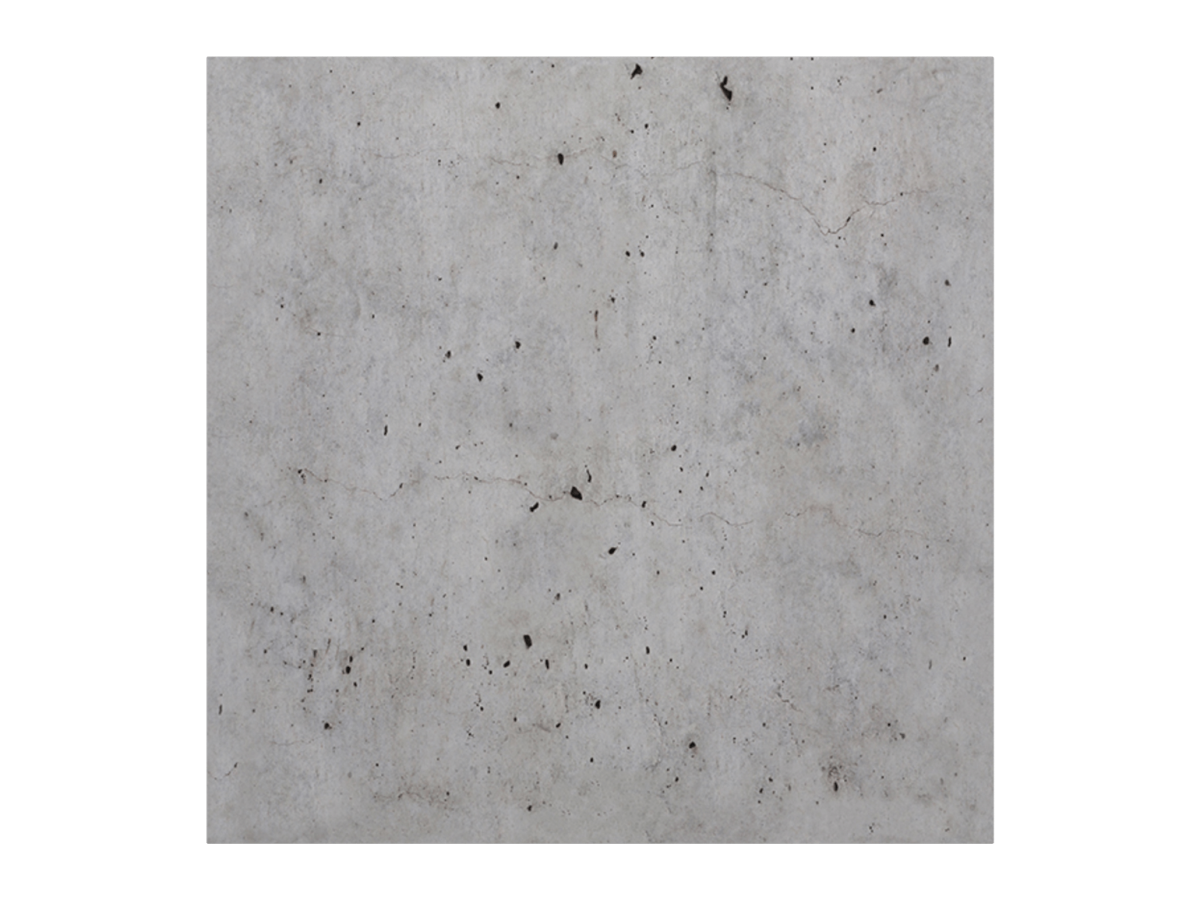

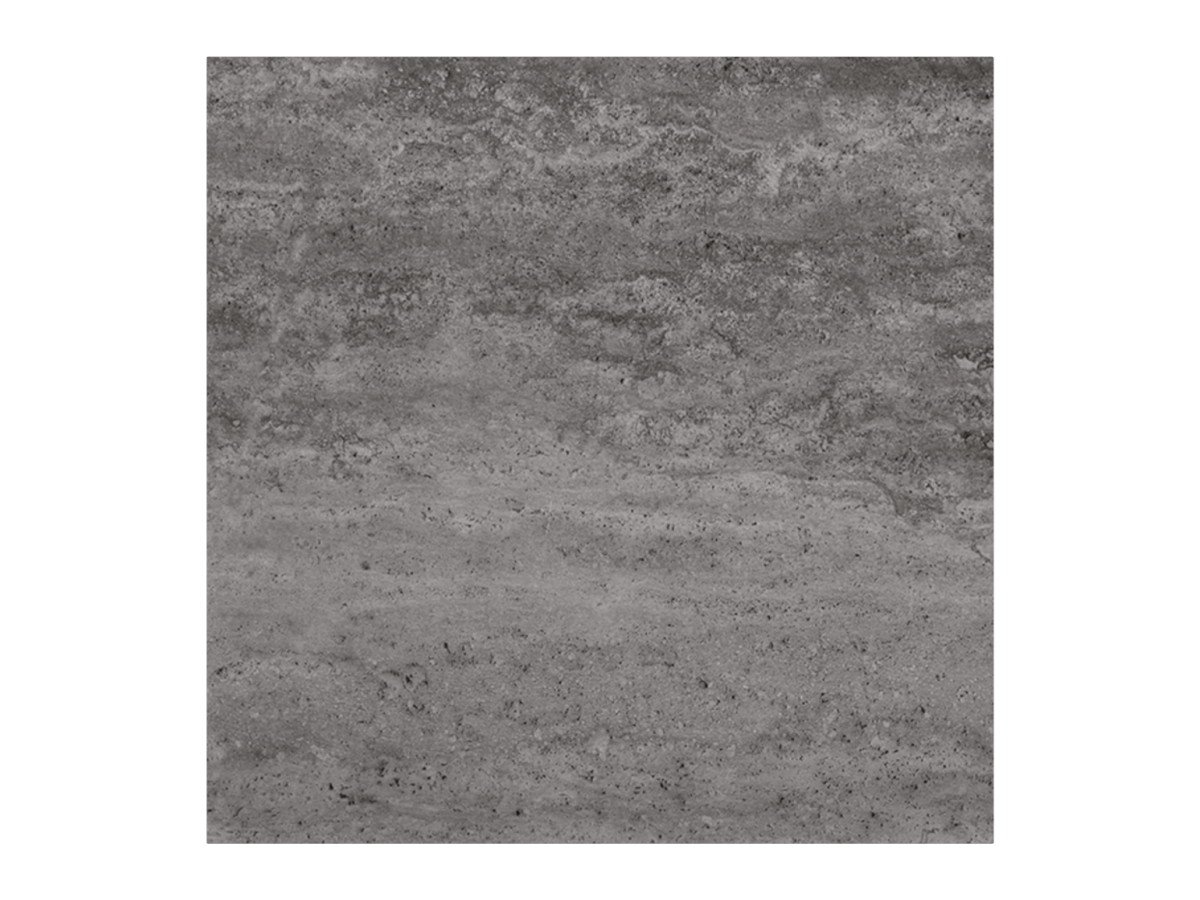

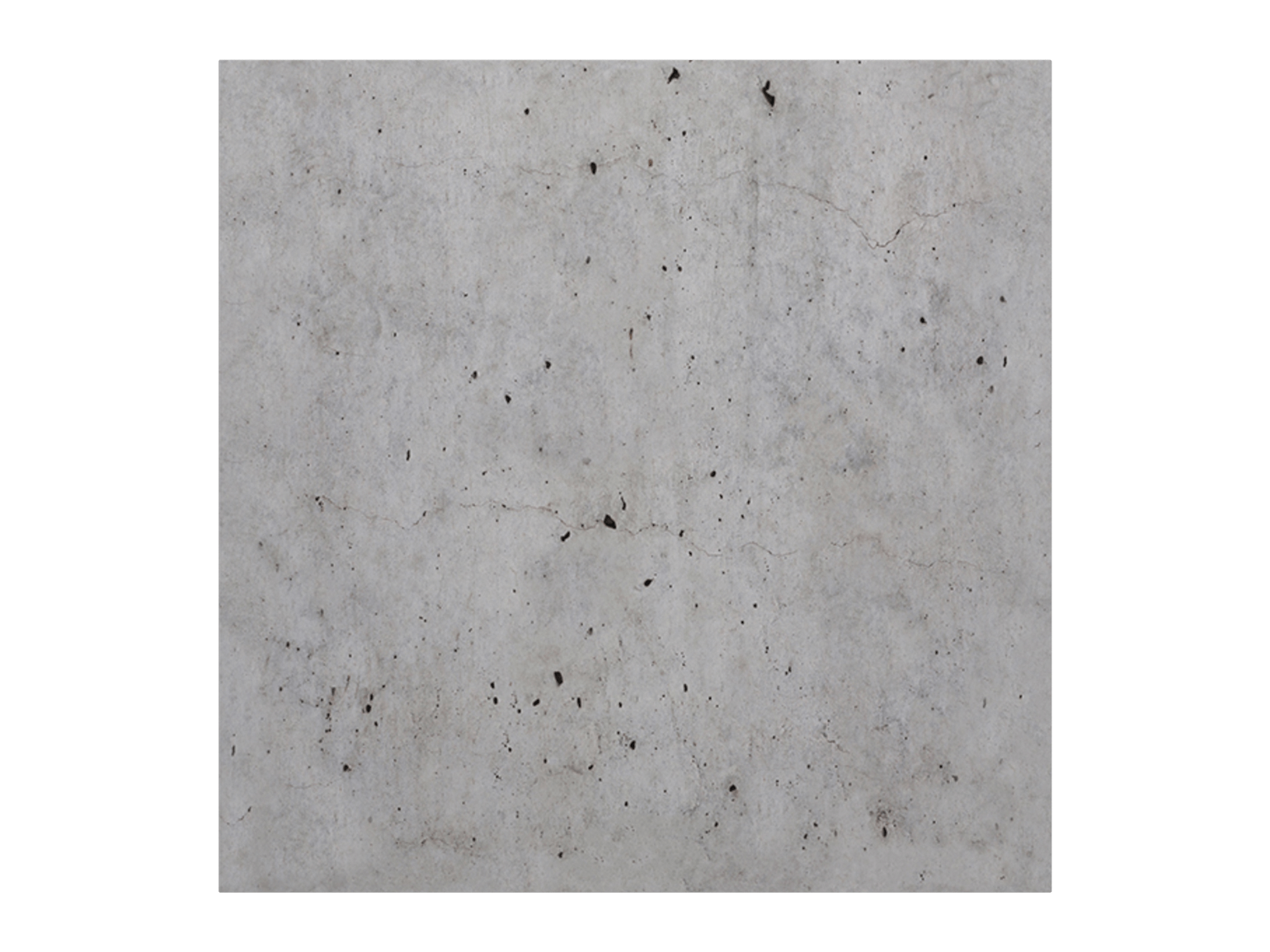

Vicoustic Flat Panel VMT 60x60x2CM 1stk

SKU: Flat Panel VMT

499,- - 599,- inkl. mva

Produktnr: Flat Panel VMT Kategori:


Flat Panel VMT bygger kun 20mm, men leverer allikevel god demping for større områder, enten det er i en hjemmekino, en restaurant, et hotell eller andre steder der akustiske tiltak er viktige. For montering medfølger det et borrelås-system, men platene kan også monteres med lim om det er ønskelig.

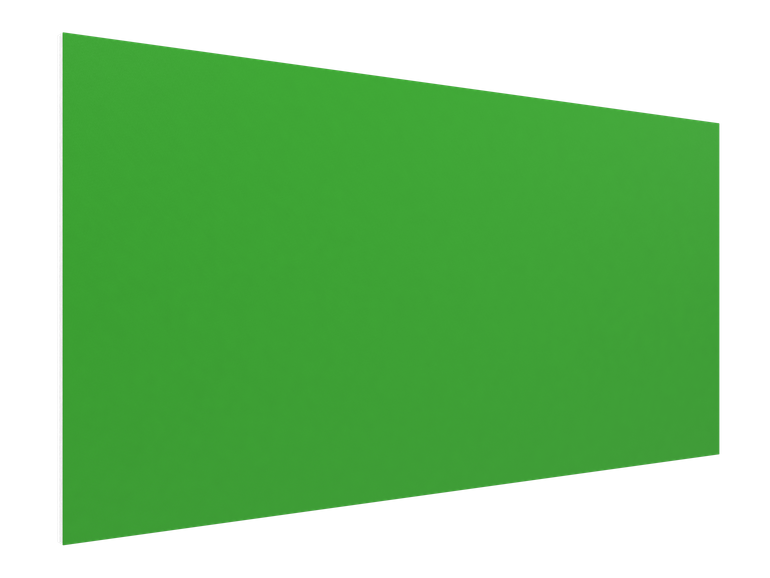

Chroma-key varianten egner seg meget godt for alt fra mindre podcasting-studioer til større innspillingsstudioer, der en kombinerer akustisk demping med chroma grønt.

Kan også leveres i størrelser på 1200×600 samt 2400×1200 på spesialbestilling, ta kontakt med oss om det er av interesse.

Perfect panel for wall and ceiling

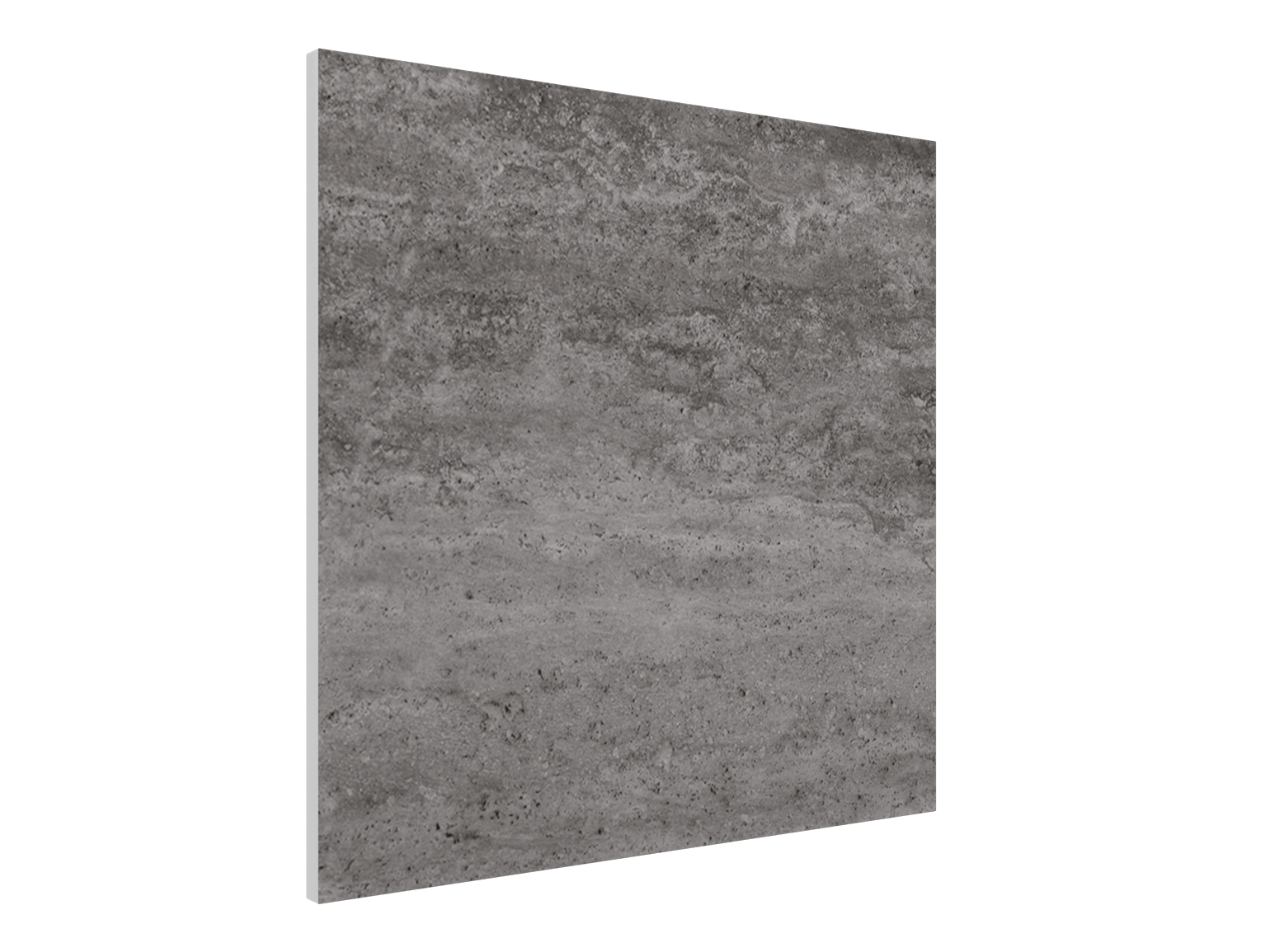

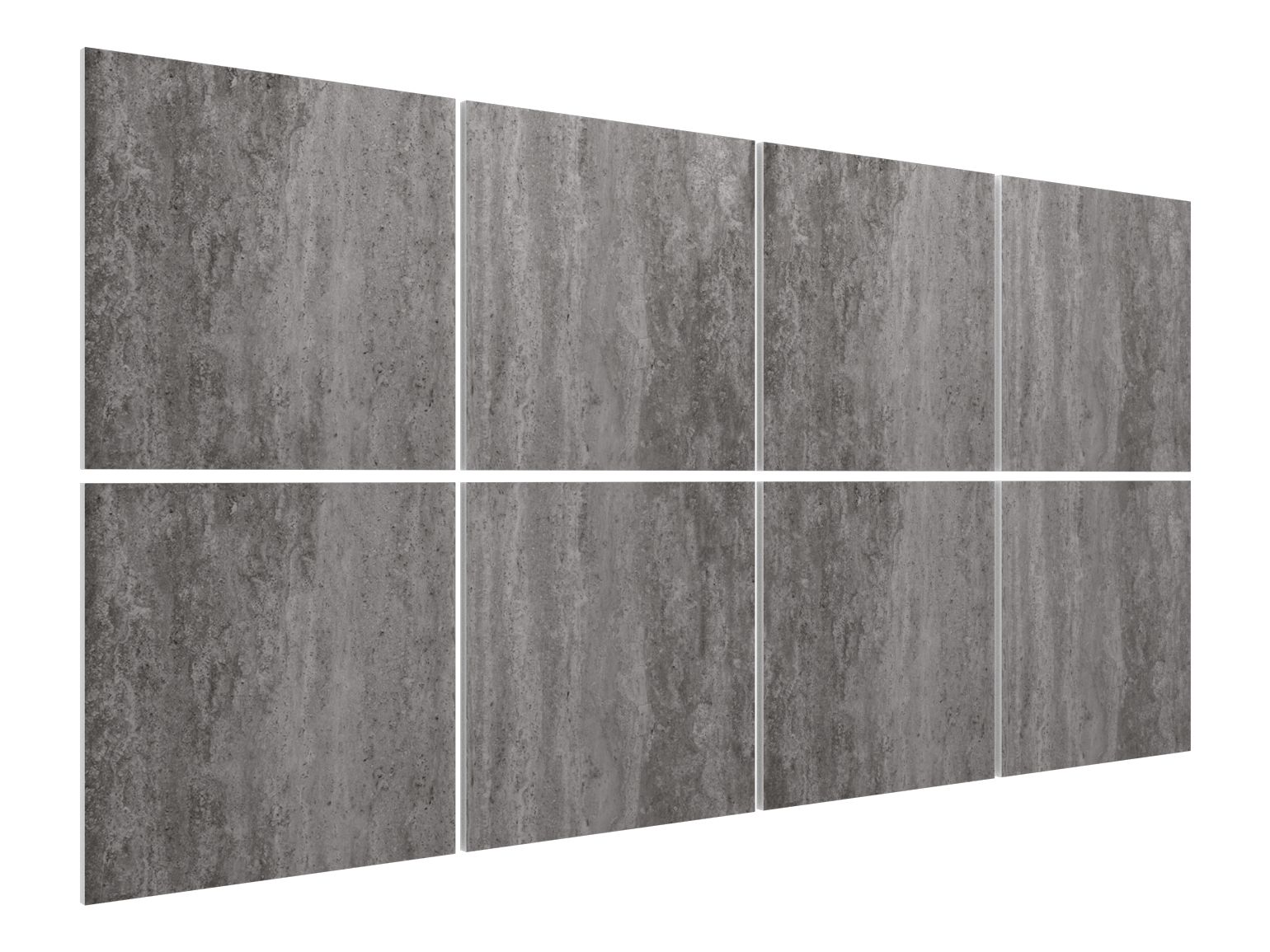

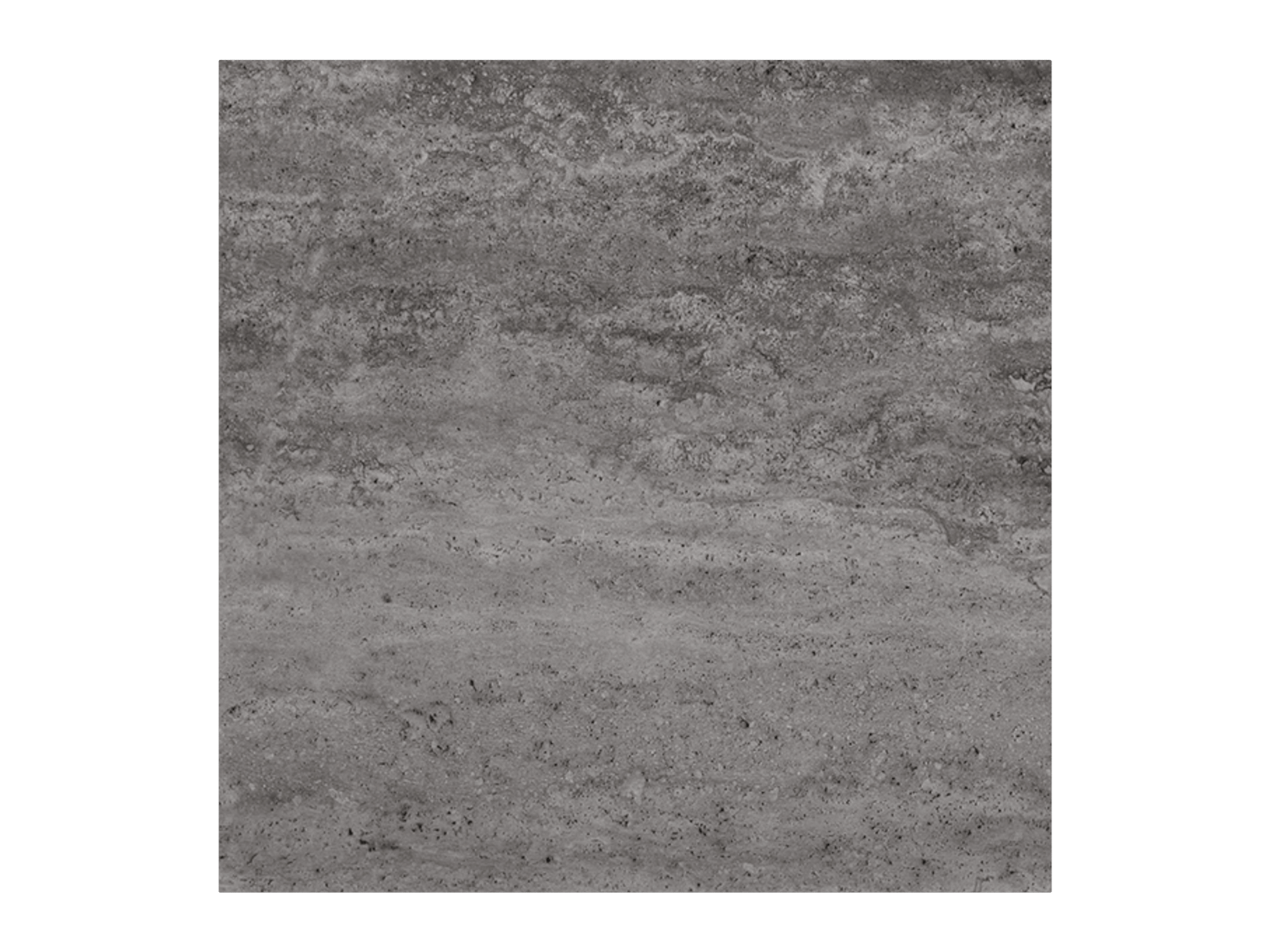

Vicoustic has developed a revolutionary new product range fit for both residential and commercial use. Created exclusively by Vicoustic, Flat Panel VMT is made from VicPET Wool – a material produced mainly from recycled plastic bottles. With an innovative dyeing technology, Flat Panel VMT panels can simulate concrete, marble, wood and other materials, achieving an amazing and realistic look in any setting. Flat Panel VMT panels are designed to perform primarily in the medium and high frequencies. Therefore, these panels provide a great acoustic solution to implement in any commercial or residential setting and can be used on ceilings and walls. The applications for Flat Panel VMT are infinite, making it perfect for both new construction and refurbishment projects. Aesthetically, it comes in a wide range of patterns and can be fixed to any surface with Velcro and with several other Vicoustic fixation solutions available. 227 plastic bottles are recycled for each box of 8 units of Flat Panel VMT 595×595.

Om Chroma Key-panelet:

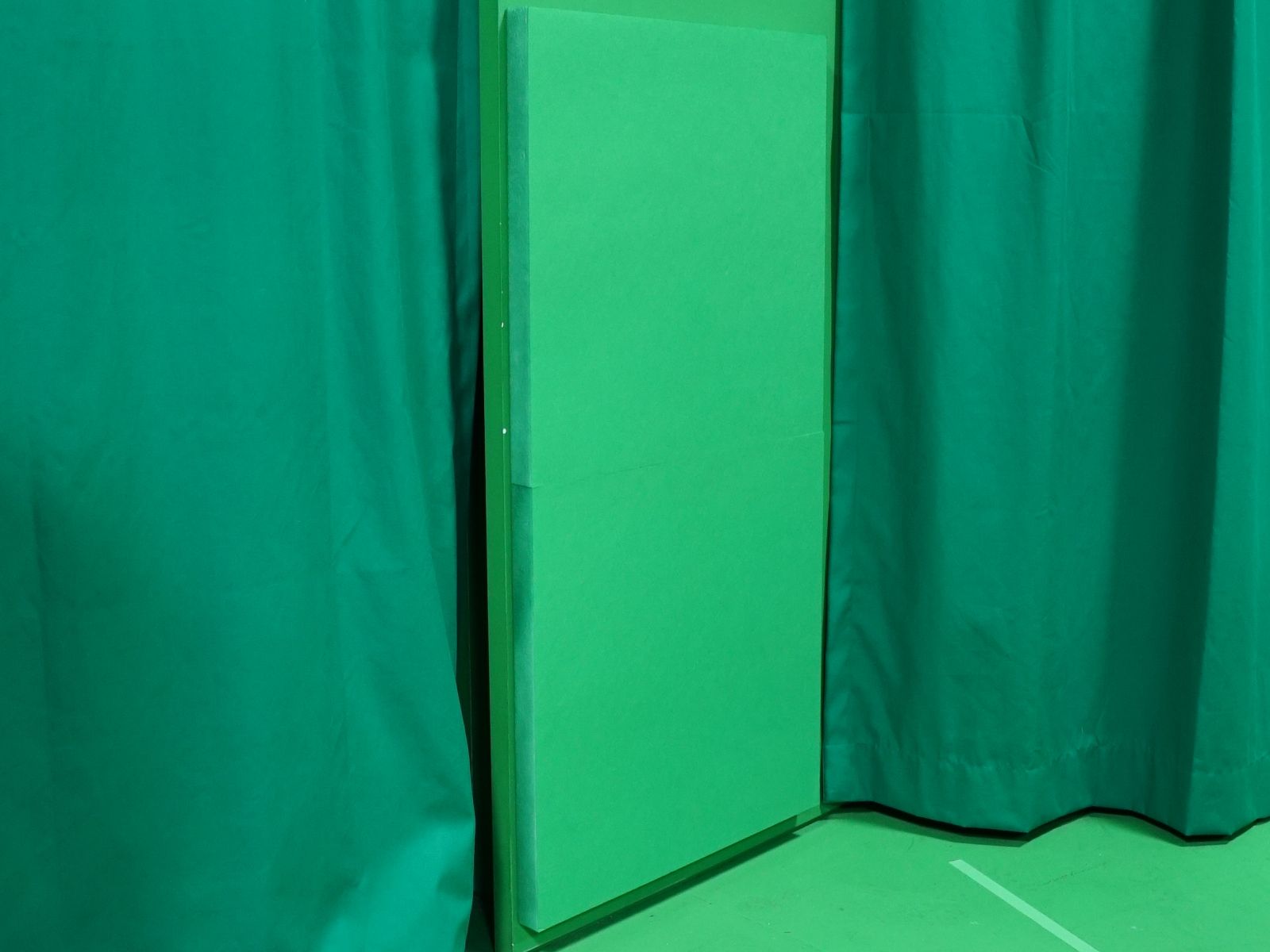

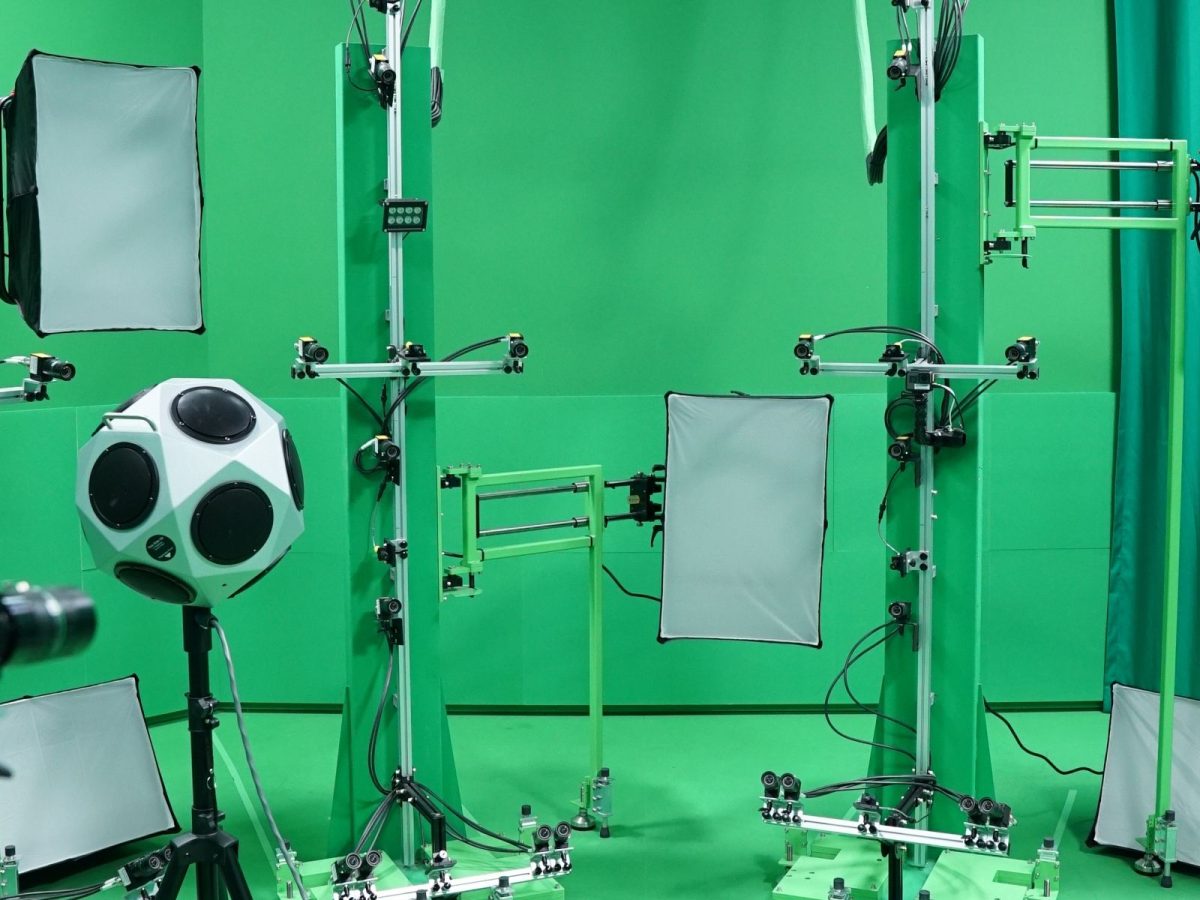

Chroma Key Acoustic Panel

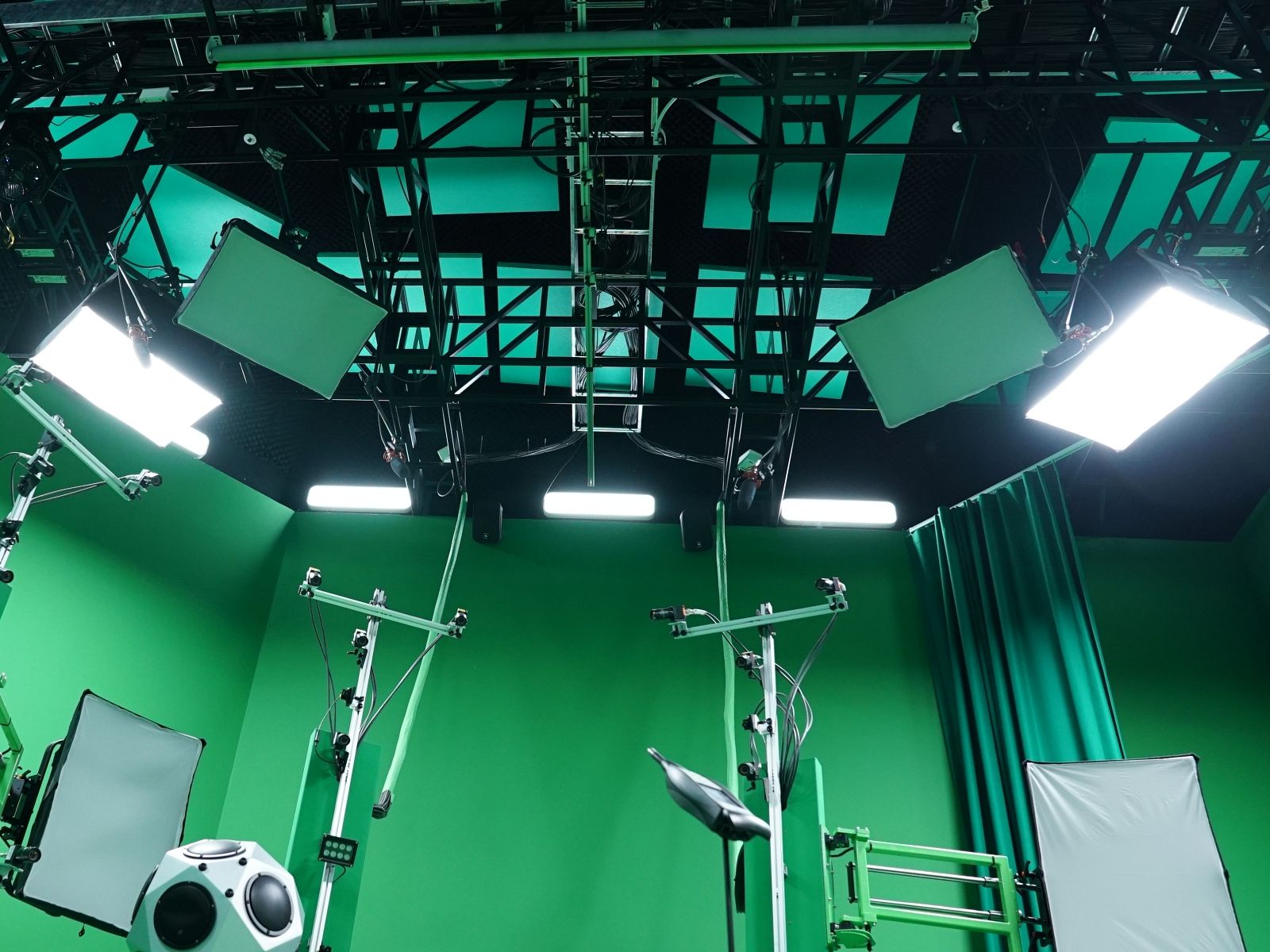

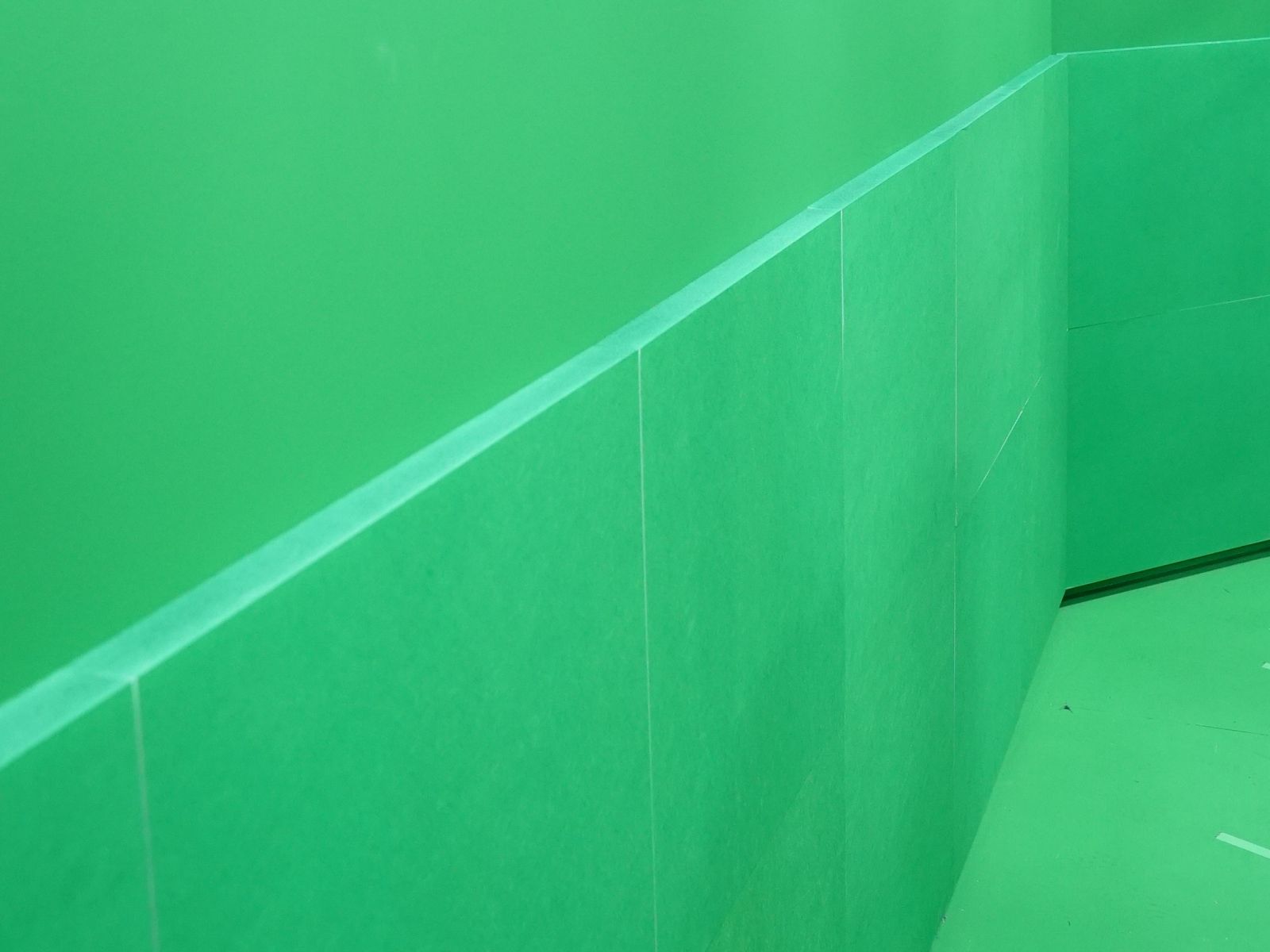

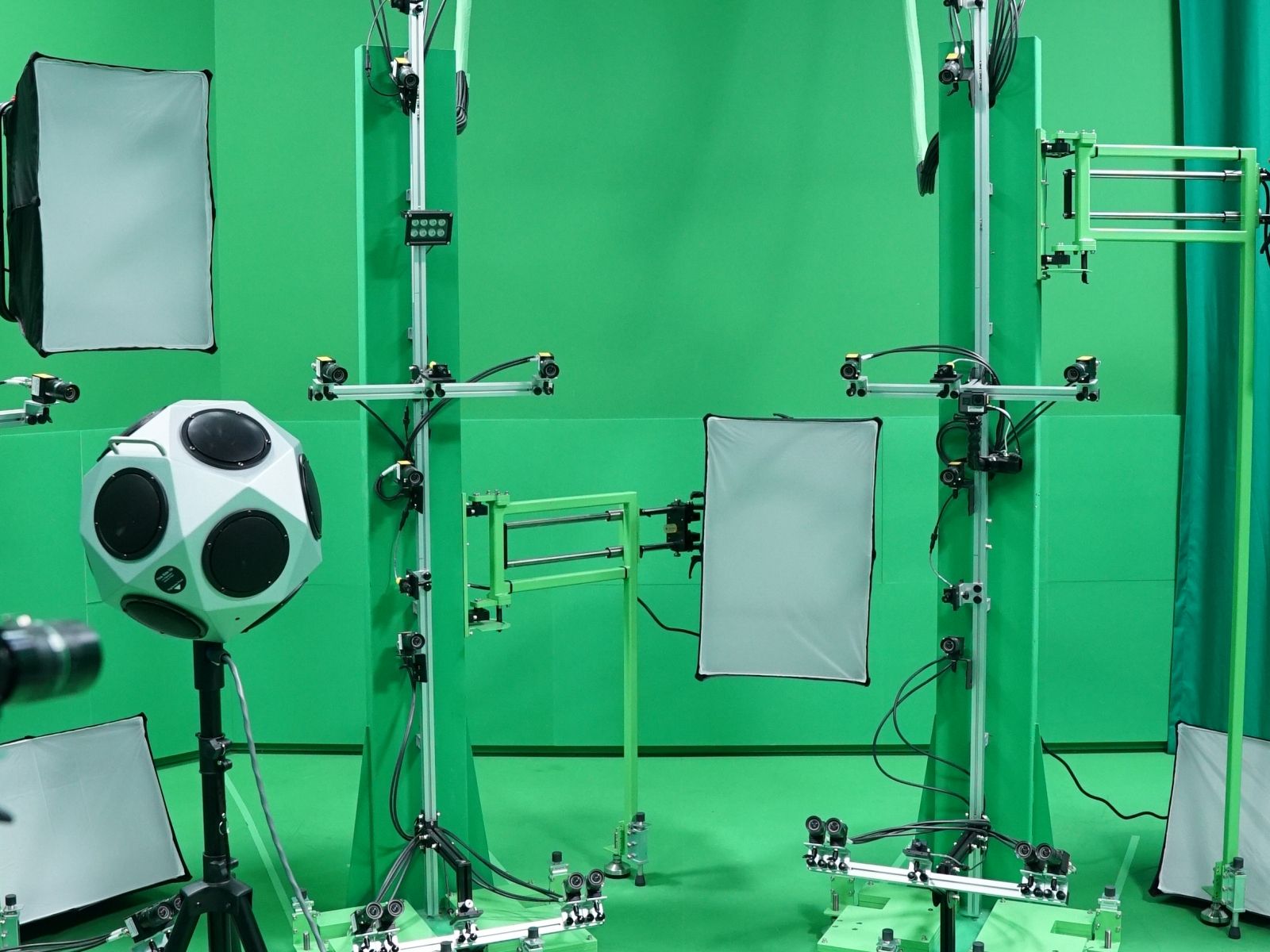

By installing Flat Panel VMT acoustic absorbers in green color, a Chroma Key Professional Audio-Video Studio in South Korea managed to both treat the room acoustics and use the walls and ceiling as chroma key backgrounds. The VMT capacity to reproduce any color turned out to be a useful solution to accomplish the green tone required for the Chroma Key, a visual-effects and post-production technique for compositing (layering) two images or video streams together. The client was fully satisfied with a sound-absorbing panel that they were able to use for their visual work, mostly for performance capture for the videogame industry. The panels worked well for their chroma key goals, reporting no visual issues.

Speech recording solution

In the case of this site, the sound system is based on “Speech recording”, so the experts from SAMA Sound focused on designing room acoustics to ensure proper clarity for each frequency band. Following the measurement results done by SAMA Sound, it has been confirmed that most of the acoustic problems appearing in this site are manifested in the low frequency sound energy. After improvement, the STI (Speech Transmission Index) and C80 (clarity of sound index) values, including the reverberation time, exceed expectations and appear as a suitable room acoustic environment for studio purposes. Vicoustic developed a special version of Flat Panel VMT Chroma Key to fit this kind of demands.

Mer info >>


Det er ingen omtaler ennå.

Bli den første til å omtale “Vicoustic Flat Panel VMT 60x60x2CM 1stk”

Din e-postadresse vil ikke bli publisert. Obligatoriske felt er merket med *


Installasjonsguide >>

Main Info

    • Dimensions: 595 x 595 x 20mm / 23.4” x 23.4” x 0.8” | 595 x 595 x 40mm / 23.4” x 23.4” x 1.6” || 1190 x 595 x 20mm / 46.8” x 23.4” x 0.8” | 1190 x 595 x 40mm / 46.8” x 23.4” x 1.6” || 2380 x 1190 x 20mm / 93.7” x 46.8” x 0.8”

    • Raw Material: VicPet Wool

    • Washable: Yes

    • Scratch Resistance: Yes


    • Functionality: Absorption

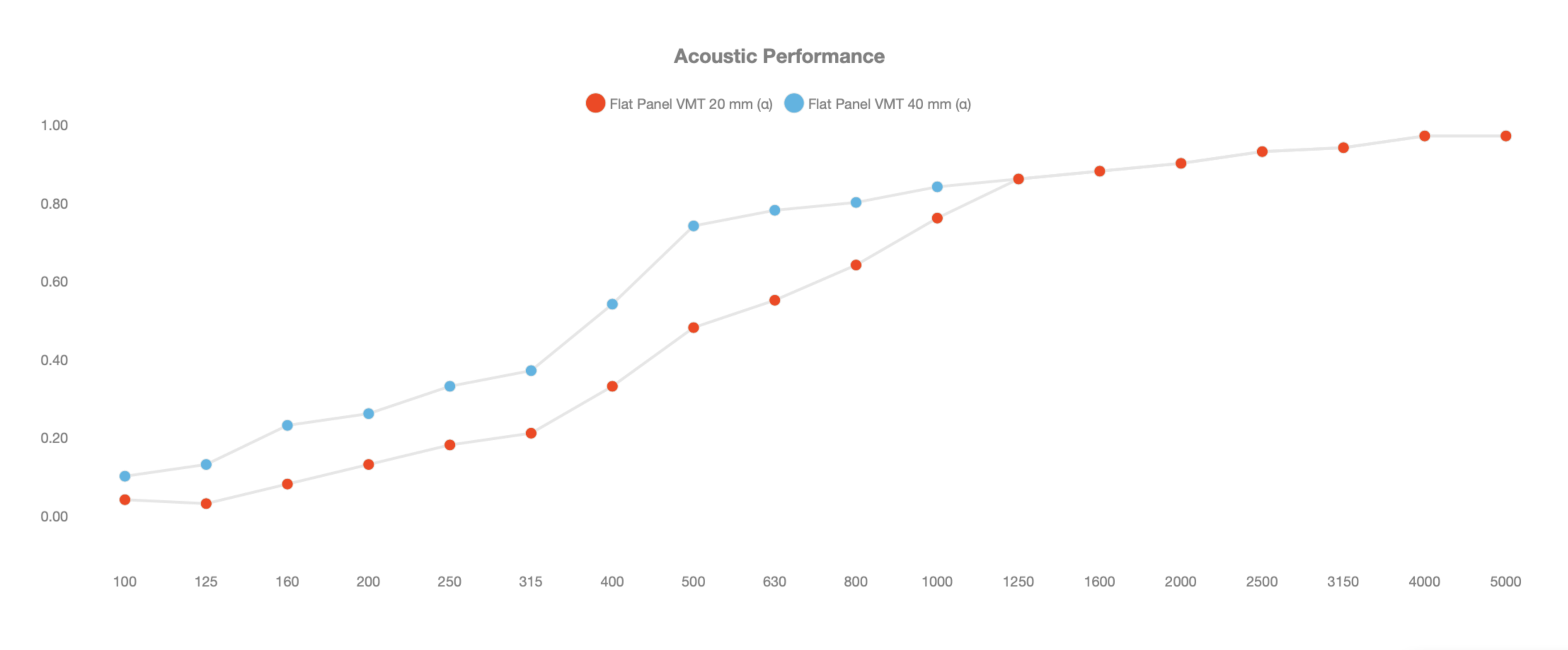

    • Absorption Frequency Range: Medium and High Frequencies

    • NRC: 20mm: 0,55 // 40mm: 0,7

Fire Rate

    • Europe: Euroclass B – s2, d0

    • USA: Class A (ASTM-E84)

Packaging Information (NB! Pris er angitt pr. stk, med rabatt på hele esker)

    • Units/Box: 4 or 8

    • Box Dimensions: 4 units/box: 665x690x105mm / 26.2” x 27.2” x 4.1” | 1290 x 665 x 105mm / 50.8” x 26.2” x 4.1” || 8 units/box: 665 x 675 x 195mm / 26.2” x 26.6” x 7.7” | 665 x 675 x 365mm / 26.2” x 26.6” x 14.4” | 1260 x 675 x 195mm / 49.6” x 25.6” x 14.4” | 1260 x 675 x 365mm / 49.6” x 26.6” x 14.4” | 2465 x 1275 x 165mm / 97” x 50.2” x 6.5”

    • Box Gross Weight: 3.9kg / 6.7kg // 7.8kg / 8.8kg / 13.4kg / 15kg / 56kg


    • Place: Wall, Ceiling

    • Fixation: Velcro (included); Flexi Glue Ultra; VicFix Frame; VicFix J Profile; VicSpacer and VicSpacer Plus
