Ascendo Immersive Audio The6 Passive On Wall Wedge 30

SKU: TheSixPassiveOnWallWedge30

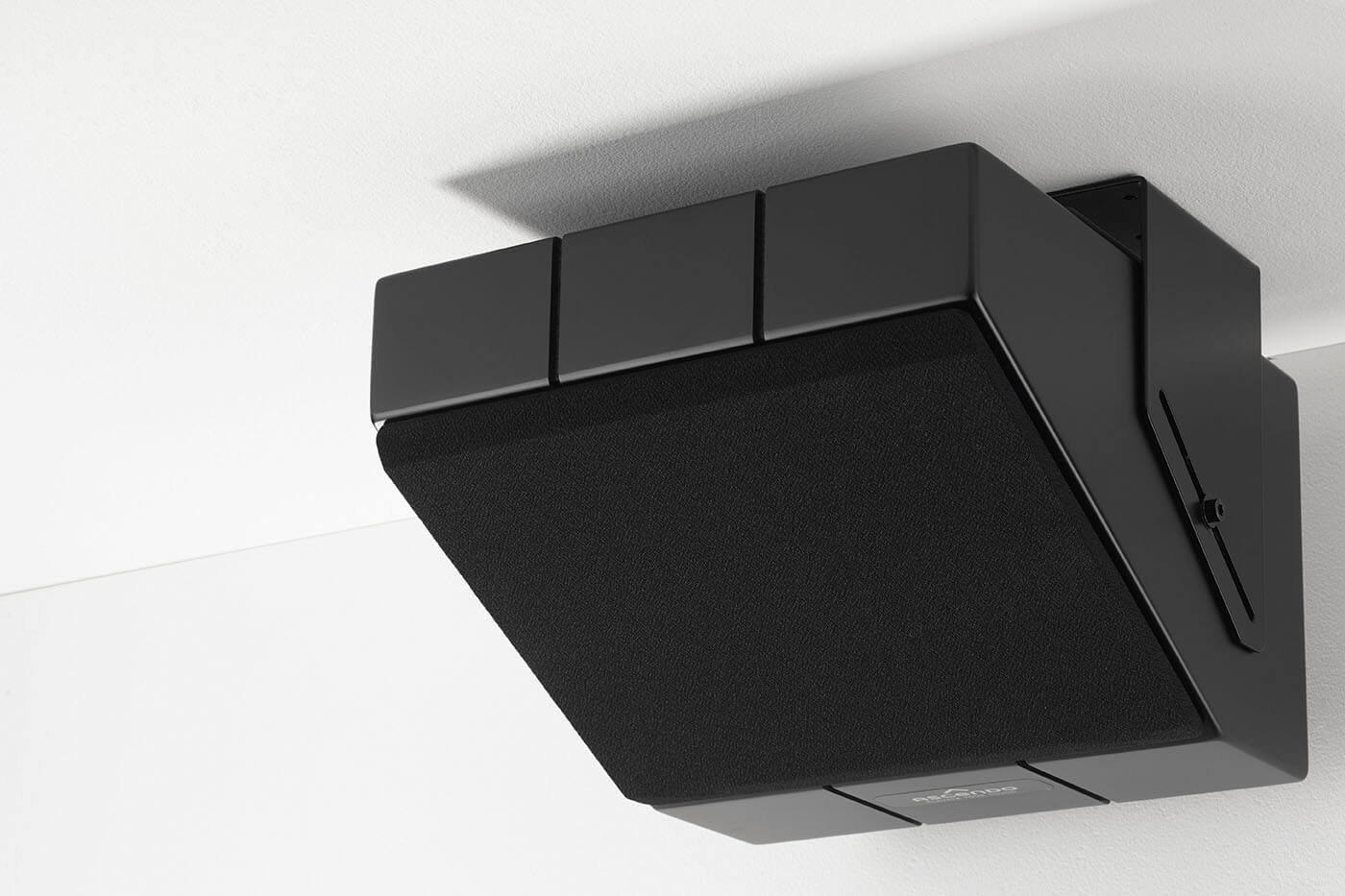

Wedge 30 har en skrå frontbaffel og egner seg derfor for installasjon i himling, på vegg eller i andre oppsett der en god vinkel egner seg. Det medfølgende fleksible brakettet lar deg i tillegg vinkle høyttaleren inn eller ut ytterligere. Lydbildet er krystallklart, og spredningen svært høy - finishen er i tillegg svært lekker. Festes superenkelt til vegg eller himling via fire gjennomgående hull i høyttaleren.
13 999,- inkl. mva
Antall:

På lager

6
50 × 30 × 15 cm

Beskrivelse

Bruksanvisning >>






The 6 Passive Wedge 30’s design objective was to offer a compact and shallow pre-angled speaker that can be installed in multiple locations where angling the speakers is mandatory. Such locations include but are not limited to front wide, Atmos and DTS top front and rear, front or rear high surrounds, side surrounds etc.

It is a very compact two-way passive loudspeaker system which utilizes a 6.5” time coherent Coaxial Point Source driver featuring a soft dome tweeter. This driver design is perfect for wide angle axi-symmetric radiation to cover a large listening area.
Its 30-degree pre-angle meets the requirements of most 3D home theater builds according to current CEDIA, Dolby and DTS specs. The very flexible speaker mounting and orientation options ensure best possible localization, immersion, and tonal balance at the main listening position while minimizing localization shifts for side seats.

The 6 Passive Wedge 30 is an enormously dynamic and powerful speaker, despite the 30-degree angle only a record-breaking 155 mm (6.1 in) deep with a very compact width and height.

Considering the space occupied, its high efficiency of 93dB at 1W/1m and high-power handling allows it to reach reference volume levels and obtain an impressive cinema sound experience even with low amplifier power.

Omtaler

Det er ingen omtaler ennå.

Bare innloggede kunder som har kjøpt dette produktet kan legge igjen en omtale.

SPESIFIKASJONER

SPECIFICATIONS (selection)

Speaker type 6.5″ Time coherent point-source coaxial
Principle Vented
Passive | Active Passive
SPL Measurement data
111 dB cont. / 122 dB peak
Frequency range Measurement data
100 Hz – 20 kHz
Efficiency 93 dB  / 1W/m
Power handling 200 W
Nominal Impedance 8 Ω
Woofer 6.5″ woofer
Tweeter 1″ soft dome tweeter
Directivity horizontal x vertical in Deg° 85° x 85°
Input terminal One 4-conductor Phoenix 12 AWG (3,3 mm²) push on binding post
Enclousure MDF
Width 9,45 ” | 240 mm
Hight 11,02  ” | 255 mm
Depth (without grille) 6,10 ” |155 mm
Weight 11,46 lbs 5,2 kg
Custom colour options Piano lacquer (12 layers): colour of choice, matt or other finishes upon request
Shape customization Upon request
Mounting 6 x wall mount brackets for horizontal and vertical installation + VESA 100 mounting points



THE6 PASSIVE WEDGE 30 is supplied with a front cover as standard

Technical modifications subject to change without further notice
