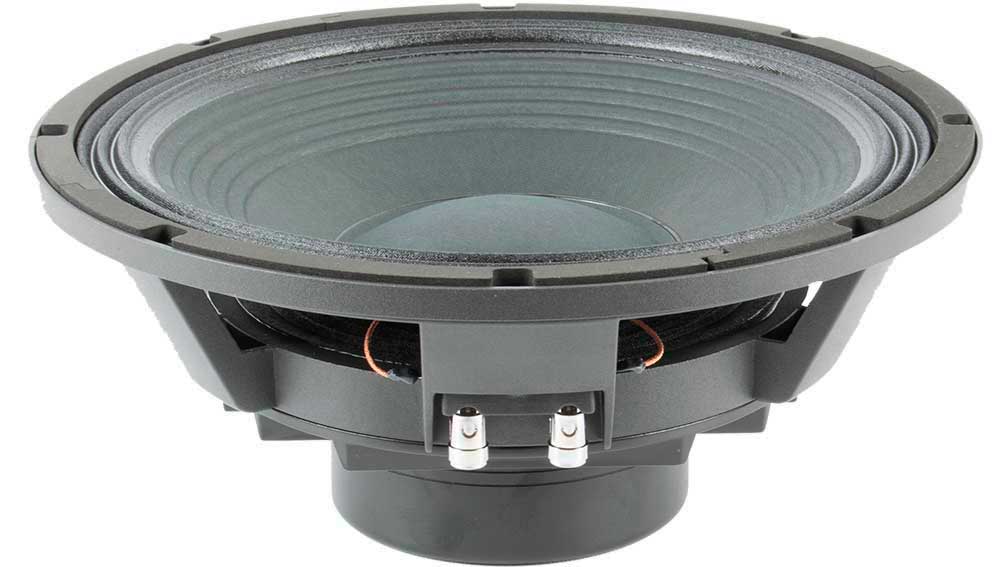

TECHNICAL SPECIFICATIONS
Nominal impedance
8 Ohm
Power capacity
700 W AES
Nominal diameter
300 mm 12 in
Sensitivity
100 dB 1 W @ 1 m @ ZN
Minimum impedance
6.7 ohm @ 6.7 kHz
Frequency range
50-4000 Hz
Program power
1400 W
Recommended enclosure volume
40 l
Voice coil diameter
101.6 mm 4 in
BL factor
23.7 N/A
Moving mass
0.074
Winding length
20 mm
Air gap height
12 mm
Xdamage pp
52 mm
PARAMETERS THIELE & SMALL
Fs
47 Hz
Re
5 ohm
Qms
5.2
Qes
0.20
Qts
0.19
Vas
65 l
Cms
152 µm / N
Rms
4.2 kg/s
Efficiency %
3.4
Sd
0.055m²
Xmax
7.5 mm
Vd
412 cm³
Le @1 kHz
0.9 mH
CONSTRUCTION DETAILS
Depth
132 mm 5.20 in
Net weight
5.6 kg 12.32 lb
Total weight
6.3 kg 13.86 lb
Magnet
Neodymium
