NB! Strømkabel og USB kabel medfølger ikke, se under tilbehør.

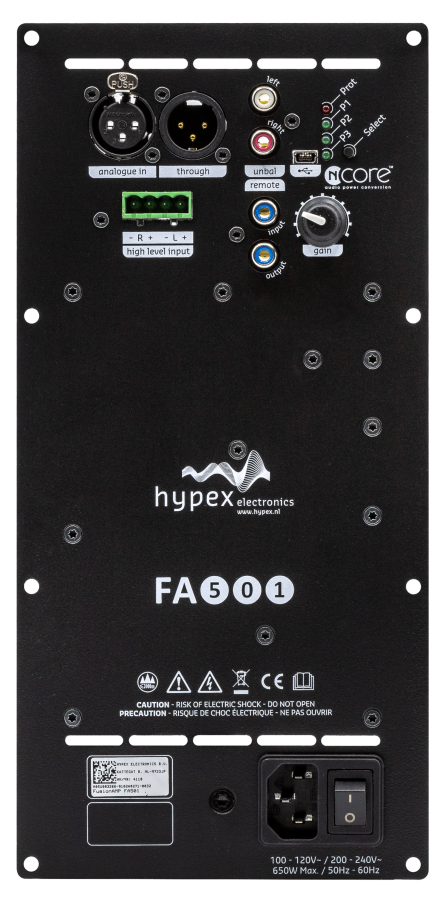

This FusionAmp can be the basis of e.g. a powerful active subwoofer or a one-way monitor.
The FA501 has one powerful 500 Wrms Ncore® amplifier.
Dimensions: 280 * 135 x 55 mm
Weight: 925 gram
Specs
| Power (4Ω) | 1x 500Wrms |
| Power (8Ω) | 1x 270Wrms |
| Channels | 1 channel / 1 way |
| Mains voltage input | 100-120Vac / 200-240Vac ±10% |
| Dimensions mm | 280*135*55mm |
| Weight | 925gr |
Connections
- Analogue balanced XLR in and through
- Analogue unbalanced RCA input
- High level input
- USB 2.0 configuration interface
Features
- 15 biquads per amplifier
- Three selectable presets for filters
- Source selection
- Signal detect
- Auto shutdown
- Clip protect
- Thermal protect
- Filter protection
Meet the family

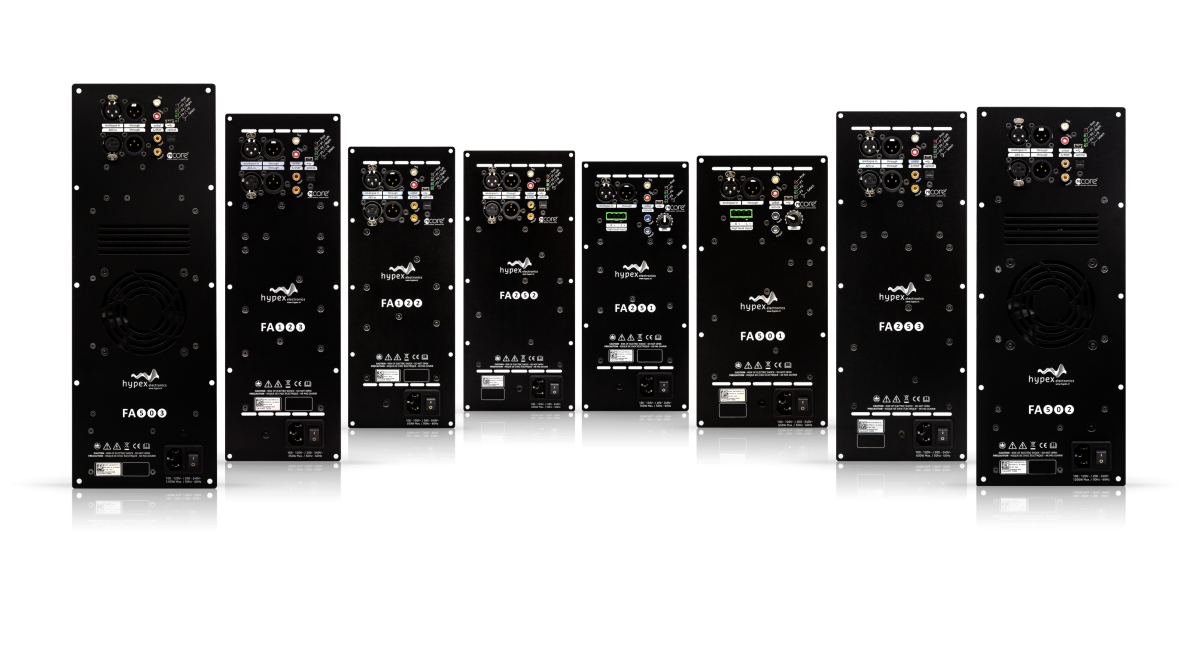

The Fusion Amp family consists of the following models:
FusionAmp One-Way models:
FA251, 1x250W
FA501, 1x500W
FusionAmp Two-Way models:
FA122, 2x125W
FA252, 2x250W
FA502, 2x500W
FusionAmp Three-Way models:
FA123, 2x125W + 100W Tweeter
FA253, 2x250W + 100W Tweeter
FA503, 2x500W + 100W Tweeter
What is included in the box:
- The FA501
- A printed copy of the user guide
- Speaker connection cables
- High-level input connector
What is not included in the box:
Basically anything else, so additionally order, if you need:
Fusion IR Receiver Kit
All modules can be extended with the Fusion IR Receiver Kit. This set contains a PCBA with IR receiver and bi-colour LED, and the necessary cable (125cm). This set is available for separate purchase
Hypex Remote
The Hypex Remote which can be used in combination with the Fusion IR Receiver Kit to control volume, source and put the system into standby.
Fusion Mounting Screws
The Fusion Amp must be mounted into the speaker cabinet with 8 or 10 screws. This set contains 10 self-tapping, black, Pozidriv screws, 3.9x20mm.
USB 2.0 Cable
USB Type A Plug - Mini USB Type B Plug,
Powercord EU
IEC 60320 C13 - IEC Type F
Used in: Germany, Austria, the Netherlands and Spain among others.
Powercord UK
IEC 60320 C13 - IEC Type G
Used in: UK, Ireland, Cyprus, Malta, Malaysia, Singapore, Hong Kong.
Powercord AU/NZ
IEC 60320 C13 - IEC Type I
Used in: Australia, New Zealand, Papua New Guinea, Argentina, China.
Powercord USA
IEC 60320 C13 - IEC Type B / NEMA 5-15P
Used in: North and Central America, Japan.
Hypex Filter Design
If you need a physical copy of Hypex Filter Design, you can order a CD containing HFD from our webshop. HFD is also available for free download.
