Please note that 8K Arcana VRR supports any VRR signal thru HDMI2.1 FRL. Basic Freesync and Gsync are tech that only work from Source to Display directly unless the Source and the Display supports HDMI 2.1 FRL as well. Kindly please verify that your source and display are HDMI2.1 and/or have support for FRL if you plan to use 8K Arcana VRR for VRR signals.

Downscale ANY FRL or TMDS signals 8K>4K, 4K>2K or 8K>2K up to 120Hz
Unlock true FRL/VRR on Samsung Q90/QN900/QN95 and similar models
Pass ANY FRL/VRR signals and downscale the secondary output for Hue Sync
Up to 8K60 444/RGB 12-bit via DSC at 96Gbps
Best Audio to your sound system and Best Video to your display, Always & Guaranteed!
World First 40Gbps Upscaler, Downscaler, Splitter with full audio extraction for VRR and any signals
Full Audio from ANY HDMI source (including VRR signal) to ANY HDMI, ARC or eARC sound system
Full Audio up to Atmos/TrueHD from any HDMI source to SONOS Arc & Beam 2 or any eARC sound system
Play Xbox 1X games at 4K120 Dolby Vision on LG C9, BX & SONY HDMI 2.1 TV
Solve SONOS Arc/Beam2 + other lip sync issue when using external HDMI sources connected to eARC TV
Works for ANY HDMI source to any HDMI, eARC or ARC sound system
HDMI 2.1 Full Audio/Video passthrough up to FRL5: 40Gbps/1200MHz
Upscale FRL5 and ANY signals 2K>4K, 4K>8K and 2K>8K up to 120Hz (no upscale for VRR/1080i/720p/480i-p)
Finally allow DTS sound from source to your sound system even if your TV does not support it.
CEC control from TV at output to source at input
CEC volume control from source to eARC or HDMI sound system
CEC volume control from TV to ARC/eARC sound system
CEC volume works to eARC TX and HDMI OUT using TV remote or source remote
ARC/eARC retrieval from TV ARC/eARC input to ANY ARC or eARC sound system
Support for 1080p120, 1440p120 and 4K120 as well as any VRR signals (Xbox series X, PS5, GPU and others)
Allow DV content playback from LLDV capable source on any HDR10 display for improved picture quality
1 HDMI2.1 Audio/Video output has a downscaler for improved picture quality on 1080p/2K or 2160p/4K TV
Allow HDCP 2.3 > 1.4 Conversion
Perform Chroma, Color space and Color depth modification if needed
Increase or decrease nits value of HDR metadata in real-time during HDR playback
Live signal info and details on OSD and OLED
Rotary switch for OLED menu navigation
USB type C (for power) and USB type A female (for USB stick update)
RS232 jack connector (for integration and control, not needed for average user)

Information

World First eARC HDMI2.1 8K VRR FRL5 adapter!
8K Arcana VRR allows ANY HDMI sources (FUHD source, Blu-ray, UHD Blu-ray, media players, satellite receiver, game consoles, PCs, etc.) to be shown on ANY of the connected displays and ANY sources Full HDMI audio to be extracted and forwarded to ANY eARC/ARC or HDMI sound system for up to Dolby Atmos, Dolby TrueHD, Dolby MAT Atmos, DTS-X, DTS-HD Master Audio and older formats. 8K Arcana VRR is the smartest converter solution for interoperability between any HDMI sources and any HDMI display or any HDMI/ARC/eARC sound systems.

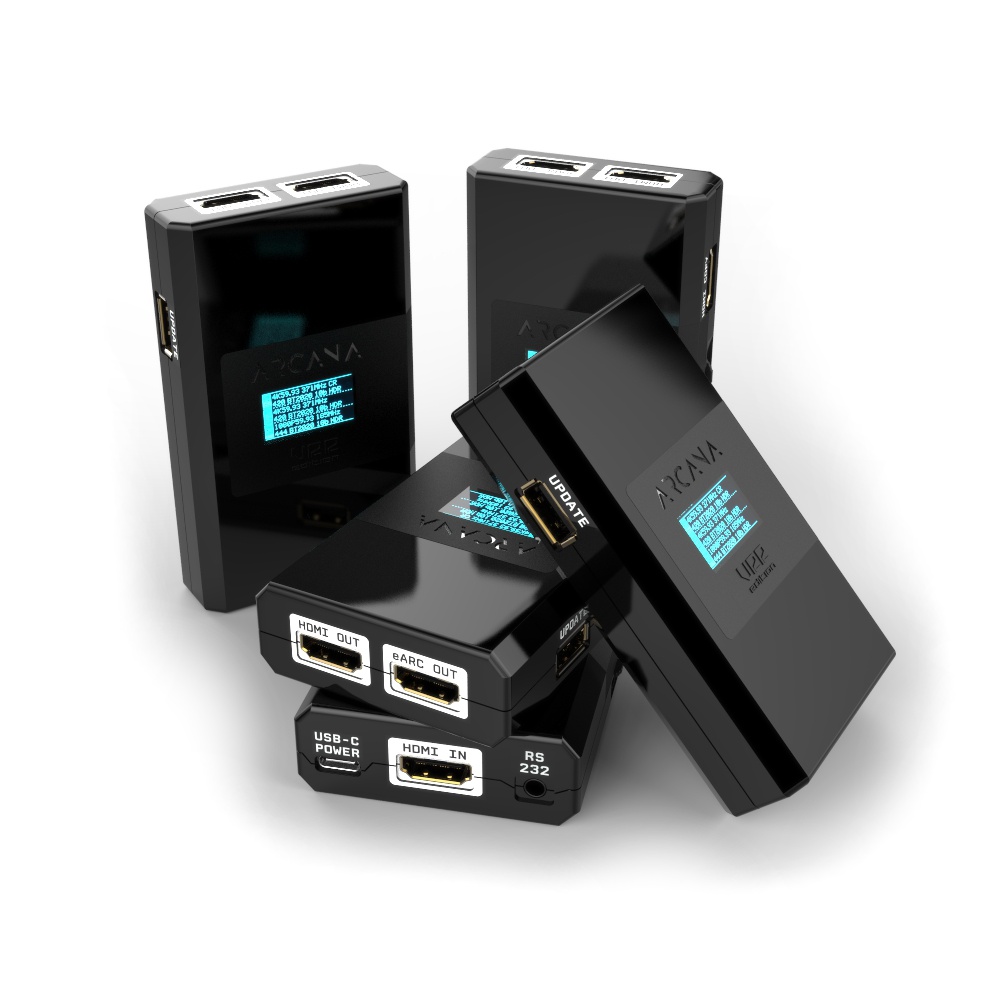

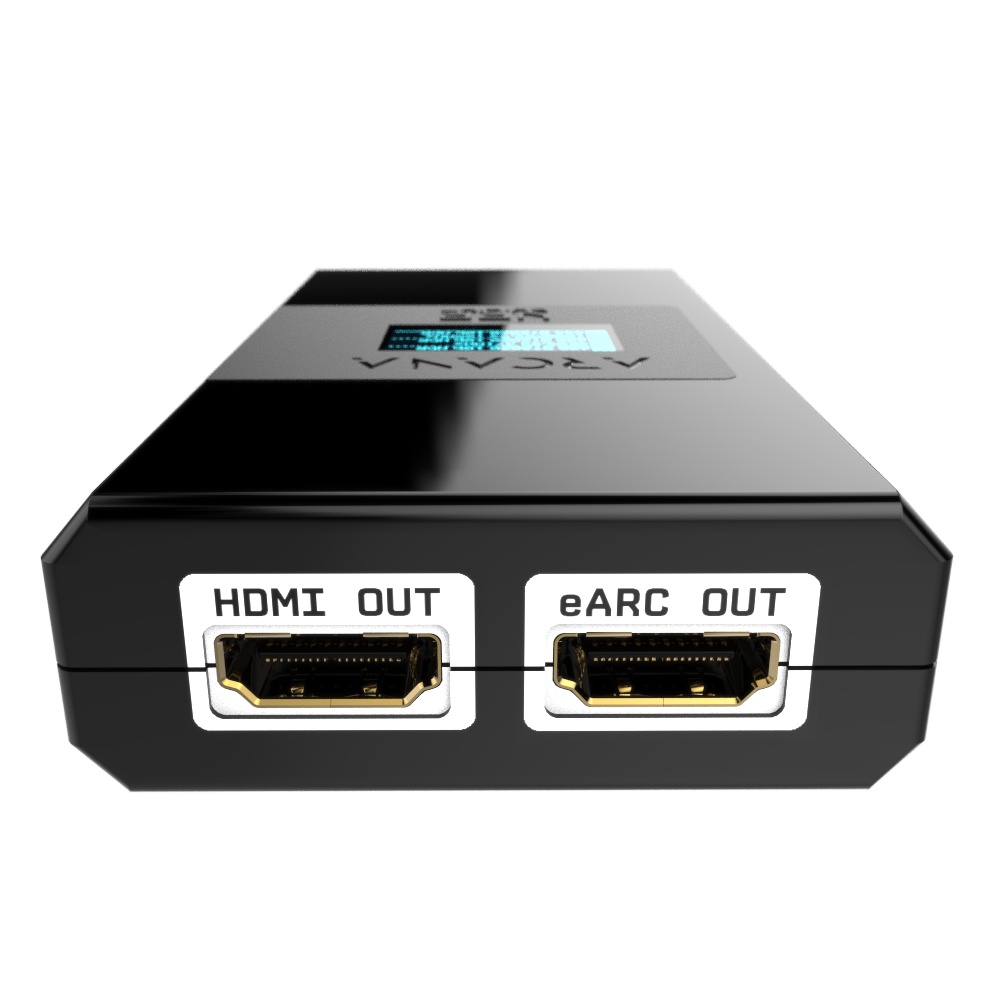

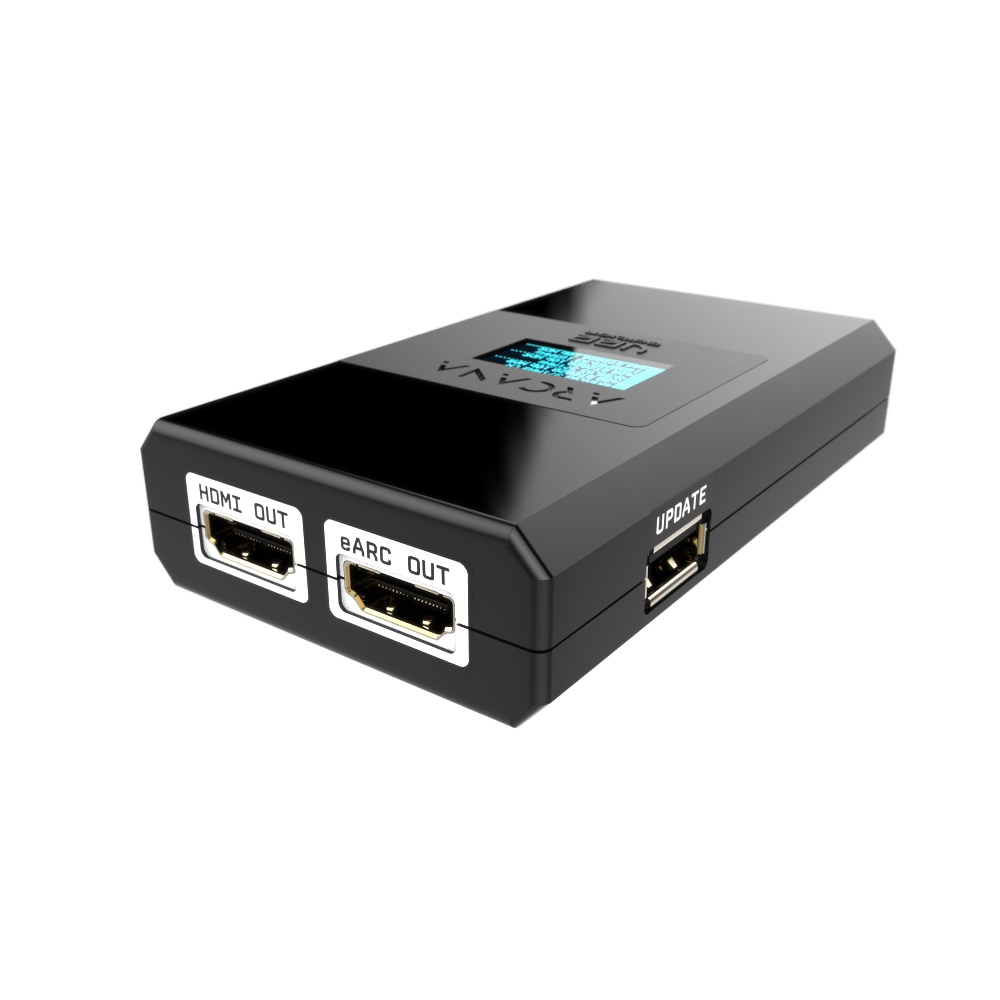

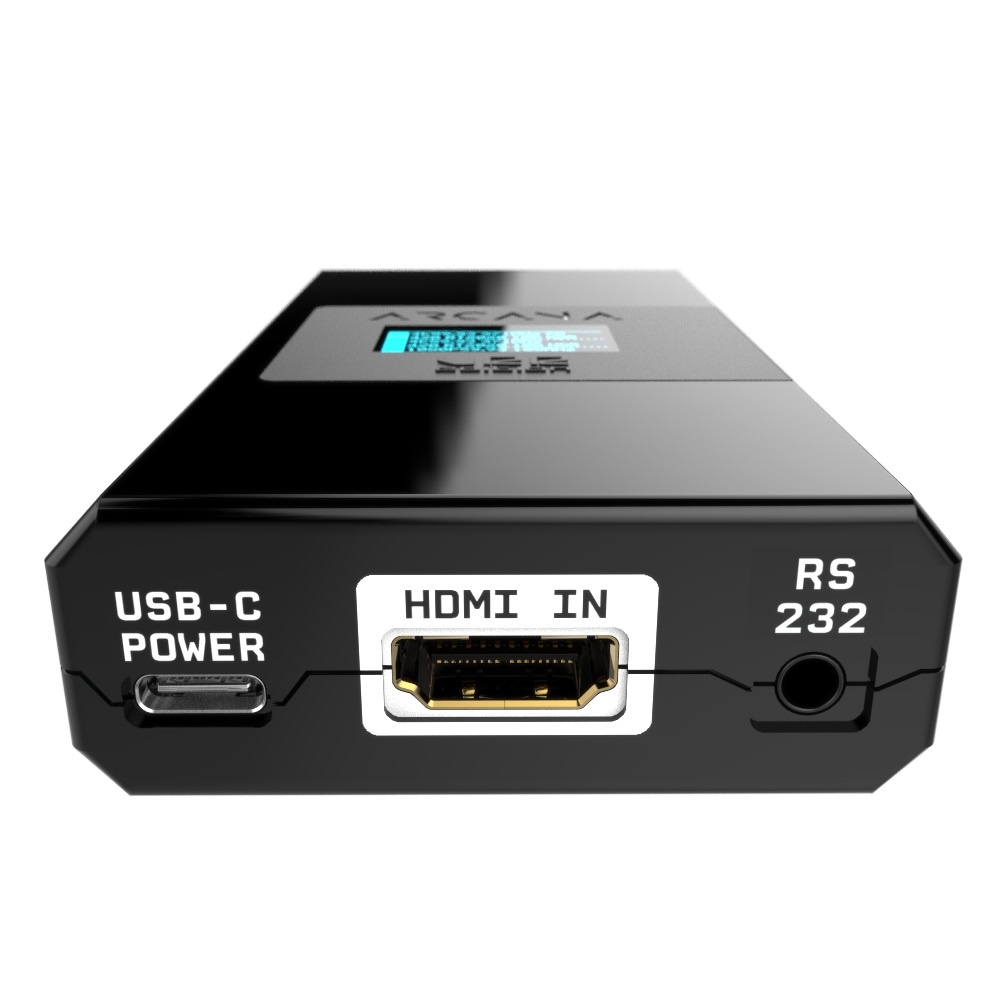

Hardware-wise, 8K Arcana VRR features 1 HDMI input, 2 HDMI outputs with scaling option, 1 eARC output, USB type A for USB stick update, USB type C for power, RS232, OLED display and a rotary/wheel switch on the side allowing to navigate/select and perform changes in the device system menu. 8K Arcana VRR input is capable of 4K and 8K VRR/HDR/HLG/DV/LLDV/HDR10+ up to FRL5/40Gbps/1200MHz for video and support any sound format in existence today, HDMI TX0 and HDMI COPY video outputs are capable of outputting FRL5/VRR/40Gbps/1200MHz or upscaling/downscaling and all sound formats as well. 8K Arcana VRR is running in a Splitter/Pass-thru/Upscaler or Downscaler default mode ensuring your setup remains optimized at its best capabilities.

World First HDMI COPY, a versatile and manageable output!
Easily set the 8K Arcana VRR secondary HDMI output to perform any of the below modes:
a) Split 2 signals up to FRL5 to 2 displays
b) Pass one signal up to FRL5, downscale the other to TMDS for 4K FRL > 2K TMDS
c) Pass one signal up to FRL5, retain 4K and adjust chroma and color depth for 4K FRL > 4K TMDS
d) Pass one signal up to FRL5, extract full audio via self generated stream to feed 1080p AVR

Software-wise, EDID management ensures the best possible mixing of TV video capabilities and SONOS Arc (or other ARC/eARC/HDMI sound system) audio capabilities at all times. HDCP conversion is possible in any way and the device can upscale/downscale and perform signal operations such as Chroma/Color depth/Color space, HDR metadata manager, VRR and normal signal sound extraction.
8K Arcana VRR also allows playback of DV content from LLDV capable source to any HDR10 display and can increase or decrease HDR metadata nits value in real time!
All signal information is visible at first sight via OLED or On Screen Display.

8K Arcana VRR is the smart solution and converter for interoperability between any HDMI revision equipment, for content creators, calibrators, streamers, digital entertainment centers, FUHD TV, UHDTV retail, show sites, data centers, schools, conference or home cinema and much more.

Pre-release demo video (click to open in a new browser tab):
1. Play main signal 4K120 VRR and secondary 1080p120 output for Philips Hue Sync
