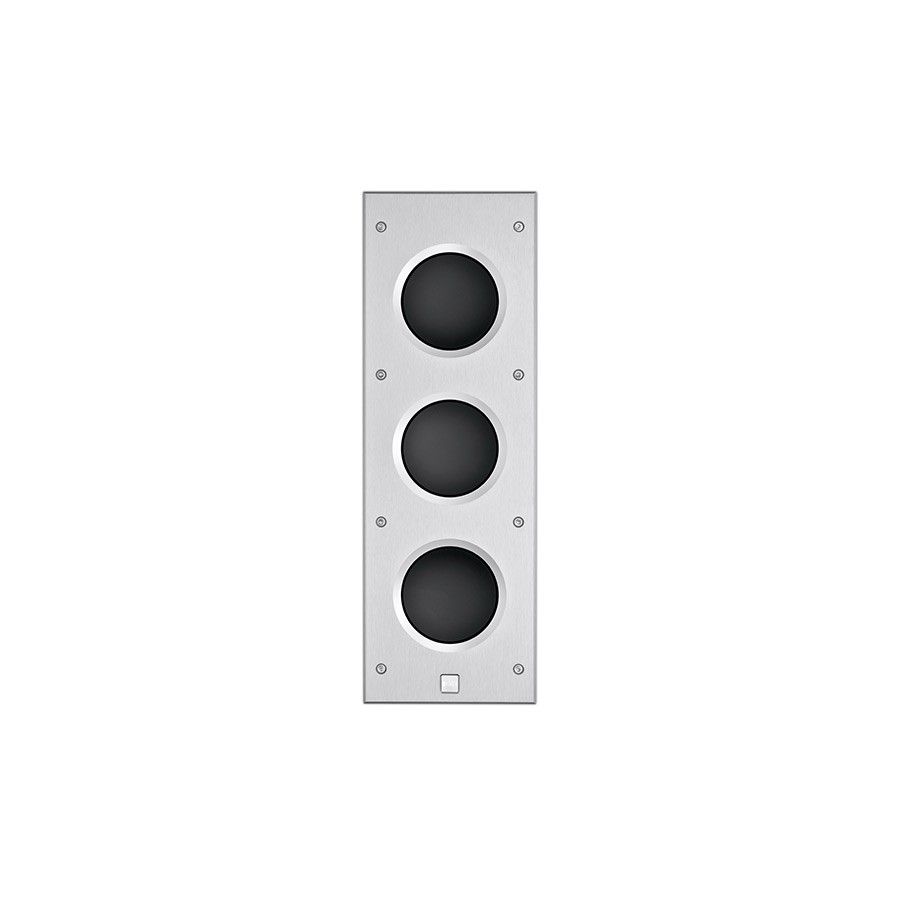

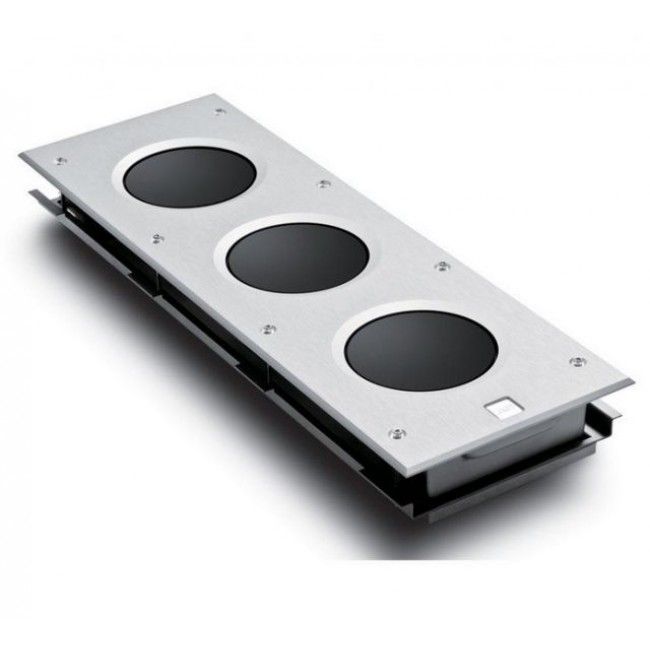

For the ultimate in Extreme Home Theatre, certified to THX ULTRA2 and THX SELECT2 standards, the formidable new Ci R Series Ci3160RLb-THX in-wall subwoofer has the deep bass and theatre thumping output capabilities of a traditional KEF subwoofer coupled with the ability to deliver all the drama and emotional intensity of full theatre sound quality.

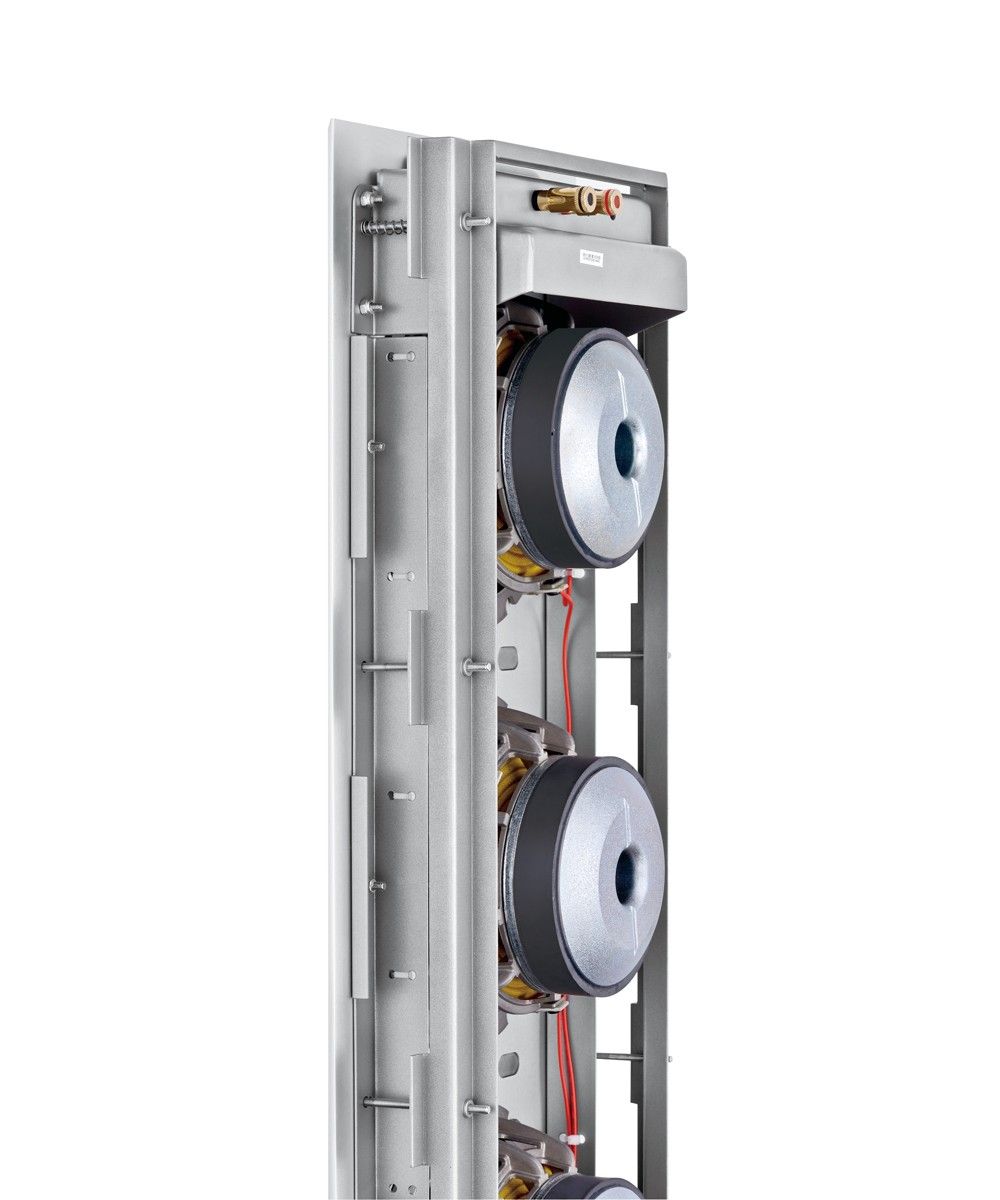

With three high-output 160mm sub-bass drivers mounted to a massive aluminium baffle the Ci3160RLb-THX must be matched with KEF’s powerful KASA500 system amplifier. Each KASA500 can power up to two of the Ci3160RLb-THX subwoofers for even the most demanding theatre installations.
|Nominal Impedance||4 Ω|
|Sensitivity||92dB (2.83V/ 1m)|
|Frequency Response||20Hz - 140Hz (±6dB) open backed|
|Drive Units||LF: 3 x 160mm (6.5 in.)|
|Product external dimensions||
H x W x D : 680 x 230 x 96 mm (26.77 x 9.06 x 3.78 in.)
H x W x D with Grille : 683 x 242 x 102.7 mm (26.89 x 9.53 x 4.04 in.)
|Cut-out dimensions||H x W : 660 x 209mm (25.98 x 8.23 in.)|
|Mounting depth from surface||88.5mm (3.84 in.)|
|Net Weight||10.9 kg (24.1 lbs)|
