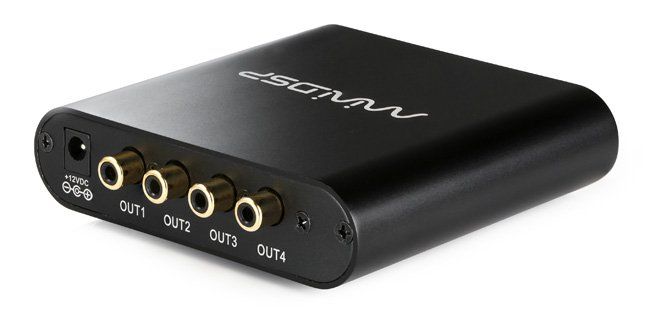

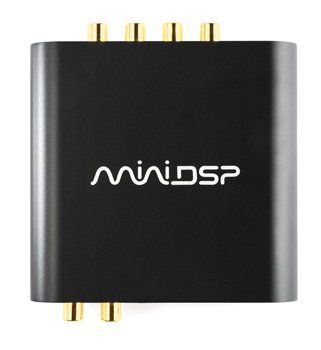

minidsp DSP Kit 2x4HD Ekstern

7 på lager (kan bestilles)

SKU: 900-225
Antall:
3 499,- inkl. mva

7 på lager (kan bestilles)

Varenummer: 900-225 Kategori: Brand: miniDSP

Beskrivelse

NB! Husk at du trenger en kalibrert målemikrofon for å gjøre de nødvendige målinger, vår anbefaling er UMIK-1 fra miniDSP.

NB! 1stk plugin medfølger i form av en kupongkode som lar deg bestille 1stk plugin på www.miniDSP.com gratis.

Du kan også velge å senere oppgradere din 2x4HD til Dirac Live, et av verdens beste automatiske systemet for automatisk kalibrering. Dette kjøper du bare direkte fra miniDSP.com: https://www.minidsp.com/products/dirac-series/2x4hd-to-ddrc-24.

Her er en god video som viser hvordan du benytter miniDSP og REW for korreksjon av multiple subber fra A-til-Å.

Informasjon fra produsent

MiniDSP 2x4 HD, a USB DAC+DSP in a low cost package powered by a powerful Sharc 400MHz floating point DSP

Introducing the long-awaited “reboot” of miniDSP’s best-selling 2x4 digital audio processor: the miniDSP 2x4 HD! This tiny powerhouse is jam-packed with miniDSP’s tried and proven audio processing functionality: flexible para-metric EQ, Butterworth and Linkwitz-Riley crossovers, advanced biquad pro-gramming, and delay on each output channel. miniDSP’s “one hardware many plugins” concept allows for many interesting future applications!

The upgraded on-board 400 MHz Analog Devices SHARC processor also ena-bles substantial processing upgrades previously available only on more ex-pensive platforms, such as 96 kHz internal processing for true high-resolution audio capability and assignable FIR filter taps for sophisticated equalization, crossover, and room correction capabilities. All to be accessed and programmed with miniDSP’s easy-to-use interface software.

I/O capabilities get an upgrade too, with the addition of USB audio streaming up to 192 kHz and a TOSLINK digital input. The miniDSP 2x4 HD will find application in full-sized hifi and home theater systems, on desktops, in cars, in recording studios — anywhere a compact, simple, yet surprisingly powerful DSP audio processor is needed.

Features

  • ADSP21489 400MHz Sharc DSP floating point engine
  • XMOS Xcore200 for USB control and bidirectional audio streaming
  • 24 bit ADC/DAC resolution
  • Unbalanced inputs switchable with a jumper between 4Vrms and 2Vrms
  • Toslink digital input
  • Unbalanced outputs: Max 2Vrms
  • USB Audio Class 2 Bidirectional streaming with ASIO drivers, driverless under MAC OSx
  • 4 preset configuration, recallable via IR, Software
  • Plug&Play USB driver and real time Software configuration using miniDSP plug-ins
  • Device does not required a PC once configured
  • External single 12V supply

miniDSP 2x4 HD diagram

Product Downloads

Software plug-in to be purchased separately

What's in the box?

  • 1 x MiniDSP 2x4 HD, board assembled and ready to use
  • 1 x 12V power supply with UK/EU/US/AU plugs
  • 1 x shielded USB cable

Optional Accessories

Comparing features


miniDSP 2x4 miniDSP 2x4 HD


28/56bit Fixed point DSP Engine



ADSP12489 400MHz Sharc floating point DSP



24 bit ADC/DAC resolution



24 bit ADC/DAC resolution



Unbalanced analog audio inputs switchable with a jumper between 0.9Vrms and 2Vrms



Unbalanced analog audio inputs switchable with a jumper between 4Vrms and 2Vrms



Digital I/O: I2S in/out



Digital I/O: USB audio I/O, Toslink input (44.1~192kHz), I2S I/O (not enabled yet)



Unbalanced analog audio outputs: Max 0.9Vrms



Unbalanced analog audio outputs: Max 2Vrms



Plug&Play USB driver and real time Software configuration using miniDSP plug-ins



Plug&Play USB driver and real time Software configuration using miniDSP plug-ins



N/A



Asynchronous USB Audio Class 2 Bidirectional streaming with ASIO drivers under Windows, driverless under MAC OSx



Device does not required a PC once configured



Device does not required a PC once configured



Software: miniDSP 2x4 plug-ins



Software: miniDSP 2x4 HD1 plug-in



Control: Volume control by potentiometer on 3pin header



IR remote + multicolor LED for preset indication



USB self powered device and wide range of DC power options (4.5 to 24VDC)



External single 12V supply (UK/EU/US/AU adaptors provided)

Digital Signal Processor Engine Analog Devices Fixed point DSP SHARC
ADSP21489
Internal Processing resolution
& Sample rate
32 bit / up to 192 kHz
Input/Ouput Configuration 2 in / 4 out
Audio Input Connectivity Unbalanced analog input, RCA terminated
Stereo Digital Inputs: TOSLINK (optical)
Stereo USB audio input: USB Audio
Supported ASCR: 20~216kHz
Audio Output Connectivity Unbalanced output, RCA terminated
USB Audio streaming: USB audio 4ch
Input / Output Max Levels IN: 2Vrms / 4Vrms (jumper-selectable)
OUT: 2Vrms
Input Impendance 10 kΩ
Output Impedance 560 Ω
Calibration Software miniDSP 2x4 HD1 plug-in
Filtering Technology FIR + IIR
DSP Presets Up to 4 presets
Dimensions 27 x 119 x 107 mm
Power 12 VDC single supply
2.1 mm round plug
2.5W
Impulse Response Correction
Infrared Remote Learning
Win/Mac Compatible
UMIK-1 Included
Bass Management
Room EQ Wizard Support

Tilleggsinformasjon

Vekt 0.6 kg
Dimensjoner 14 × 6 × 26 cm
