WI-DG lar deg koble opp dine miniDSP produkter trådløst for enkel kalibrering der selve miniDSP enheten er plassert i f.eks. et teknisk rom eller et rack. Du slipper da å koble deg opp med USB hver gang du skal justere ditt miniDSP produkt som gjør installasjon og endring langt raskere og mer praktisk.

Informasjon fra produsent:

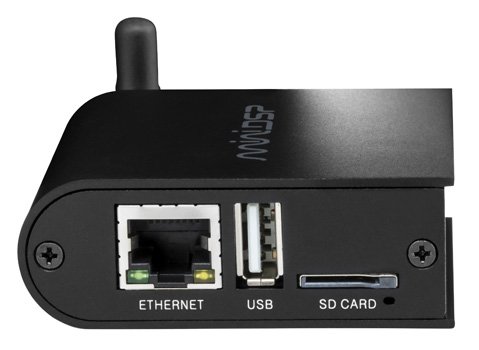

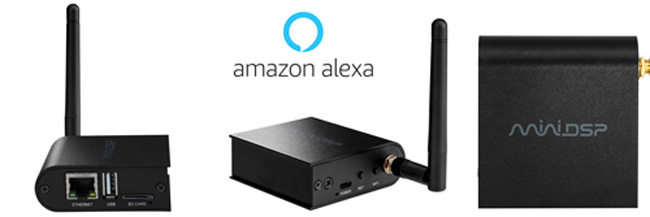

The WI-DG is a Wifi/Ethernet to USB bridge that is pre-configured for Plug&Play discovery and control over IP networks. The Wi-DG is a tiny adaptor that interfaces to the USB port of a miniDSP hardware unit and acts as a Wi-Fi to USB bridge. Supported miniDSP plugins transparently detect and communicate with the miniDSP via the Wi-DG, enabling control and configuration over the network. Normally, the computer running the appropriate miniDSP plugin is connected directly to the miniDSP hardware unit using a USB cable. With the Wi-DG, however, the computer connects using Wi-Fi in 2 possible modes of operations: Station mode or Access Point mode. Please check out the user manual for more details.

The WI-DG also supports Amazon Alexa voice control via our free Alexa Skill as described in this application note. Yet another way to easily control your audio system!

Last but not least, all below supported platform can be controlled by miniDSP’s free IoS/Android platform for basic control of Preset/Master Volume and active source. Check out our application note for more details.


diagram WIDG 800px


Diagram for voice control of a miniDSP with Amazon Alexa



  • 2.4GHz b/g/n Wifi Router (Access point/Station Mode)
  • Ethernet/Wifi control of miniDSP platforms over plugin/apps
  • Support for voice control via miniDSP’s Amazon Alexa Skill

Product Downloads

What’s in the box?

  • 1 x WI-DG interface
  • 1 x 1m microUSB cable
  • 1 x USB power supply with US/UK/EU/AU plugs

Supported plugins (IP field & Self discovery)

  • miniDSP 2x4HD (Available)
  • DDRC-24 (Available)
  • miniDSP 2×8/8×8/4×10/10×10 (Available)
  • nanoDIGI 2×8 (Available)
  • C-DSP 6×8 (Available)
  • C-DSP 8×12 (Available)
  • miniSHARC series (Available)
  • nanoSHARC series (Available)
  • OpenDRC series (Available)
  • DDRC-22 series (Future)
  • DDRC-88A/D (Available)
  • nanoAVR HD/HDA (Available)
  • SHD series (Available)

Supported platforms for Alexa voice control

  • SHD (Available)
  • 2x4HD (Available)
  • DDRC-24 (Available)
  • miniDSP 2×8/8×8/4×10/10×10 (Available)
  • nanoDIGI 2×8 (Available)
  • C-DSP 6×8 (Available)
  • C-DSP 8×12 (Available)
  • miniSharc series (Available)
  • nanoSHARC (Available)
  • OpenDRC series (Available)
  • DDRC-22 series (Available)
  • DDRC-88A/D (Available)
  • nanoAVR HD/HDA (Available)

Setting up WI-DG with your Android/IoS app

Check out our step by step application note to control your miniDSP unit via Android/IoS app.

Android IOS miniDSP 3

Setting up WI-DG with Alexa

Check out our step by step application note to setup your miniDSP processor for voice control via Amazon Alexa.
