minidsp UMIK-2 USB kalibrert målemikrofon

SKU: 810-0000
UMIK-2 er nyeste utgave målemikrofon fra miniDSP med enda høyere presisjon enn UMIK-1. I kombinasjon med gratisprogramwaren REW som du selv laster ned i etterkant kan du måle rommets akustiske egenskaper og korrigere disse raskt og enkelt via din receiver. UMIK-2 fungerer også sammen med en rekke automatiserte prosessorer, som f.eks. miniDSP sin egen 2x4HD.
2 599,- inkl. mva
Antall:

10+ på lager

0.6
25 × 8 × 8 cm

10+ på lager

Beskrivelse

Avansert, omni-directional kalibrert mikrofon fra miniDSP med USB-tilkobling. Som software kan vi anbefale f.eks. gratisprogrammet REW.

Så snart du har mottatt mikrofonen kan du laste ned den unike kalibreringsfilen ved å taste inn serienummeret på denne siden (litt ned på siden): http://www.minidsp.com/products/acoustic-measurement/umik-1. Du laster ned både 0- og 90-graders (for standard vertikale målinger) kalibreringsfil.

Her er en god video som viser hvordan du benytter miniDSP og REW for korreksjon av multiple subber

Informasjon fra produsent

MiniDSP is pleased to introduce the UMIK-2, its second-generation omni-directional acoustic measurement microphone. The UMIK-2 has everything that made the first-generation UMIK-1 one of our best selling products, including a convenient plug-and-play USB connection and a unique calibration file for each microphone to ensure accuracy.

However, the UMIK-2 is also a significant upgrade in performance and functionality. A larger 1/2-inch microphone capsule provides lower noise and lower distortion, which is preserved by the 32-bit ADC (analog-to-digital convertor) built into the microphone shell. Furthermore, sample rates are selectable from 44.1 to 192 kHz for compatibility with the widest possible range of measurement and recording software.

The UMIK-2 is of course fully compatible with REW (Room EQ Wizard) and Dirac Live (version 3 and later). Driverless operation with macOS, Linux, Android and iOS, and a supplied ASIO driver for Windows ensure simple integration into many other measurement and recording applications. With the UMIK-2, miniDSP once agains stretch the limits of affordable acoustic measurement gear.  Let the measurement fun begin!

Features

  • USB Audio Reference Measurement Microphone
  • Unique calibration file for each microphone
  • 1/2" capsule on 60 UNS thread
  • 32bit 44.1~192kHz recording, Custom Windows ASIO drivers and Plug&Play on Linux/Mac OSx
  • Low noise floor preamps, 120DR ADC
  • Plug&Play compatible with wide range of software, including REW & Dirac Live platforms

Product Downloads

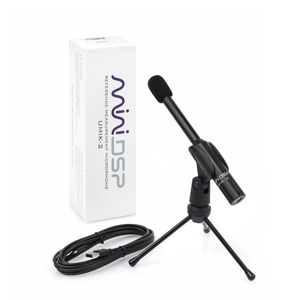

What's in the box?

  • 1 x UMIK-2 microphone
  • 1 x shielded USB type C cable (2m)
  • 1 x mini Tripod + Mic Clamp
  • 1 x wind screen

Unique Calibration File Download

All UMIK-2 are calibrated with a unique calibration file. In addition, a unique auto-generated 90-degree calibration file. To download the calibration files, look for the 7 digit Serial Number found on the body of the microphone.

  1. Enter the serial number in the form below (three digits then four digits e.g. 810-XXXX).
  2. Your calibration files will automatically download in most browsers. If not, click on the links provided to manually download.



Calibration file download

Serial number:    -



Which calibration file should I use and where to point the UMIK-2?

We provide two calibration files to be used depending on your application.

- For stereo system (e.g. 2ch dirac live, single speaker measurement), use the 0deg file and point the UMIK-2 at the speakers
- For multichannel system (E.g. 5.1/7.1) or a surround application where multiple speakers are spreadout around the room, use the 90deg file and point the UMIK-2 at the ceiling.



282A8325 Medium

Recommended by our Friends

The miniDSP team built long term relationships with the following leading software applications and is proud to showcase them as our recommeded software solutions:

REW: miniDSP once agains partners with John Mulcahy to develop even greater compatibility for the UMIK-2 inside REW! With the latest REW version (Beta , the UMIK-2 is automatically recognized by the software and prompted for use when REW is started with the microphone plugged in.

UMIK 2 detected.

Dirac Live: Dirac Live (3.x and up) also supports plug&play integration with the UMIK-2 for best measurement accuracy.

diraclive2





Omtaler

Det er ingen omtaler ennå.

Bli den første til å omtale “minidsp UMIK-2 USB kalibrert målemikrofon”

Din e-postadresse vil ikke bli publisert.

SPESIFIKASJONER

Item Description
USB Audio Controller XMOS 500MHz multicore processor, USB Audio Class 2 (UAC2)
ADC 32bit ADC with embedded PGA for up to 60dB analog gain
120dB SNR, Gain control via Mac/Win application
Capsules 1/2” Low noise Pre-polarized condenser on 60UNS thread
Sensitivity: -34 dBfs @ 0dB Gain (94 dB SPL. 1 kHz)
Noise level: -105.3dBfs (A) @ 0 dB gain
MAX SPL(0dBfs): 125dB SPL
Equivalent Input Noise (EIN): 20dB SPL @ 0dB gain
Connectivity USB 2.0 streaming, USB Type C connector
Software As a standard USB audio microphone, UMIK-2 is compatible with any software. The following proven platforms with plug&play integration.
– Room EQ Wizard freeware for acoustic measurements
– Dirac Live Room Correction software
USB Audio Mac OSx/Linux/Android Driverless
ASIO compatible driver for Windows via miniDSP’s UAC2 drivers
iOS support with USB camera adaptor
Accessories 1 x miniTRIPOD with microphone clamp
1 x windscreen
1 x USB 2m long usb cable
Dimensions (W x D) / Weight 21 x 185 mm, 150g
Construction Aluminum body
