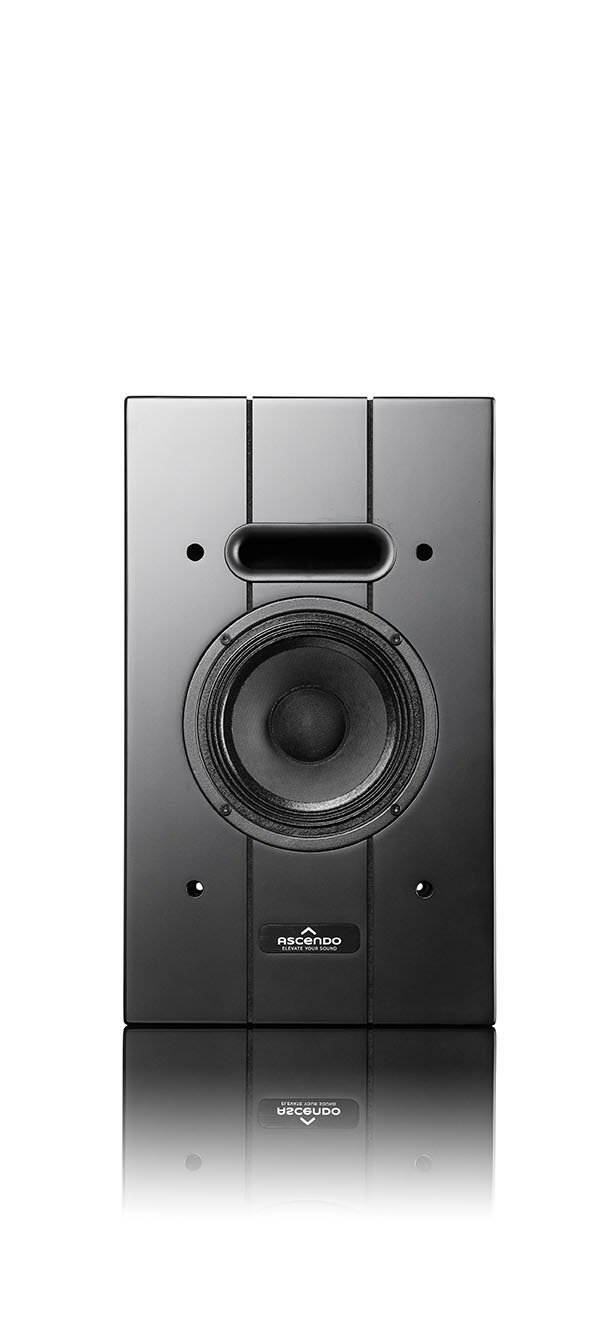

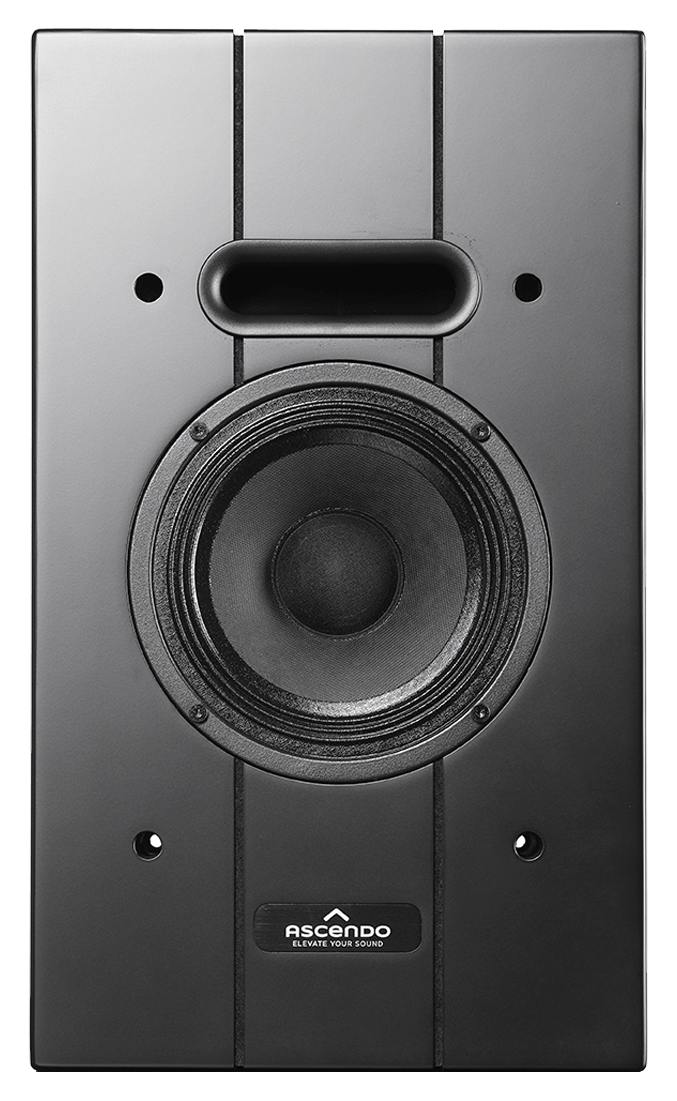

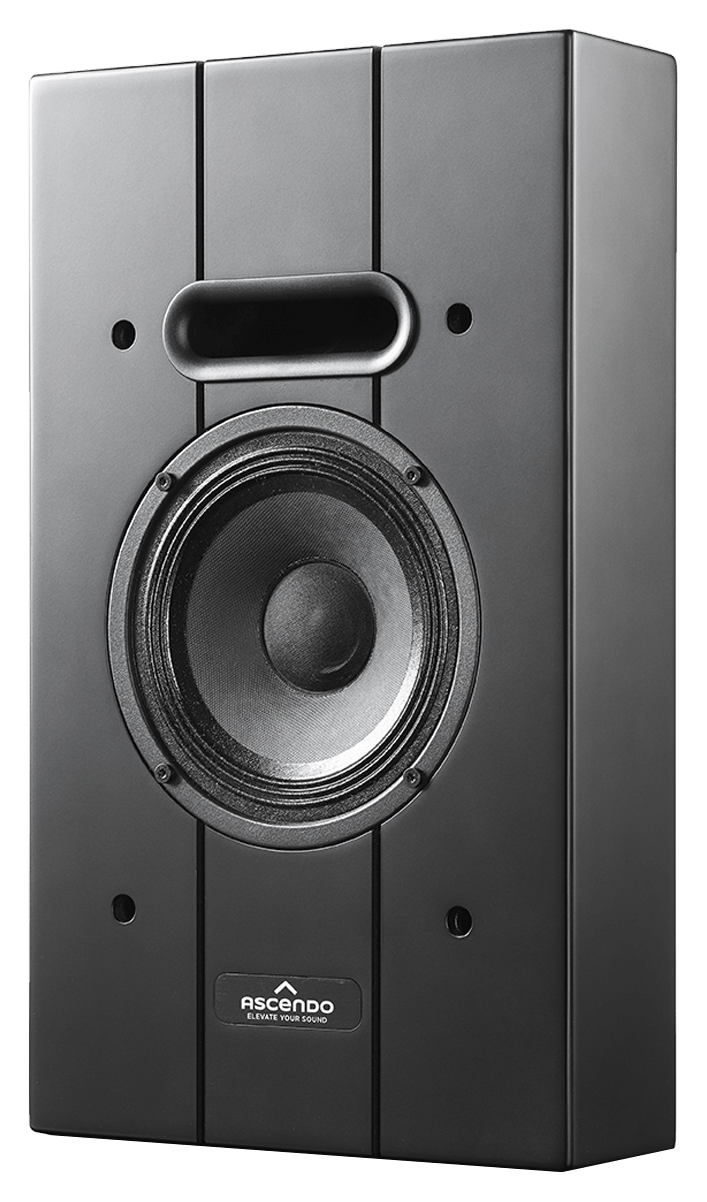

Ascendo Immersive Audio The6 Passive On Wall

SKU: TheSixPassiveOnWall
Koaksial superkompakt høyttaler fra Ascendo som kun bygger 8,8cm i dybden! Egner seg som LCR (frontrekke) i mellomstore kinorom, samt surround i større oppsett. Lydbildet er krystallklart, og spredningen svært høy - finishen er i tillegg svært lekker. Festes superenkelt til vegg eller himling via fire gjennomgående hull i høyttaleren.
12 999,- inkl. mva
Antall:

På lager

6
50 × 30 × 15 cm

Beskrivelse

Bruksanvisning >>






Does quality need to be a matter of size and budget? This new 6.5″ addition to the CCM speaker series of ASCENDO  was designed by our engineers to offer the highest performance ratio to speaker volume.

We employ the same proven two way axi-symmetric point source coaxial technology as the larger CCRM speaker series in a more compact packaging. The The6-P (Previous name: CCM6-P) ideally accompanies the CCM5 and if desired the new SV-12 subwoofer in an all ASCENDO budget high-performance system. It can serve as a surround and ceiling speaker in larger home theater systems as well as a music background speaker paired with a subwoofer.

The optional in-wall mounting kit will convert the The6-P into a flexible in-wall speaker.

The high sensitivity of 93dB/w/m paired with 200W RMS power handling lets you use this speaker with lower power receivers or very high-power amplifiers to achieve record SPL for reference level home theater projects. Another major advantage of the The6-P is its shallow depth of only 88 mm.

Omtaler

Det er ingen omtaler ennå.

Bare innloggede kunder som har kjøpt dette produktet kan legge igjen en omtale.

SPESIFIKASJONER

SPECIFICATIONS

Speaker type 6.5″ Time coherent point-source coaxial
Principle Vented
Passive | Active Passive
SPL Measurement data
111 dB cont. / 122 dB peak
Frequency range Measurement data
100 Hz – 20 kHz
Efficiency 93 dB  / 1W/m
Power Handling 200W
Nominal Impedance 8 Ω
Woofer 6.5″ woofer
Tweeter 1″ soft dome tweeter
Directivity horizontal x vertical in Deg° 85° x 85°
Input terminal One 4-conductor Phoenix 12 AWG (3,3 mm²) push on binding post
Enclousure MDF
Width 10,24 ” | 260 mm
Hight 17,32 ” | 440 mm
Depth (without grille) 3,46 ” | 88 mm
Weight 11,46 lbs 5,2 kg
Custom colour options Piano lacquer (12 layers): colour of choice, matt or other finishes upon request
Shape customization Upon request

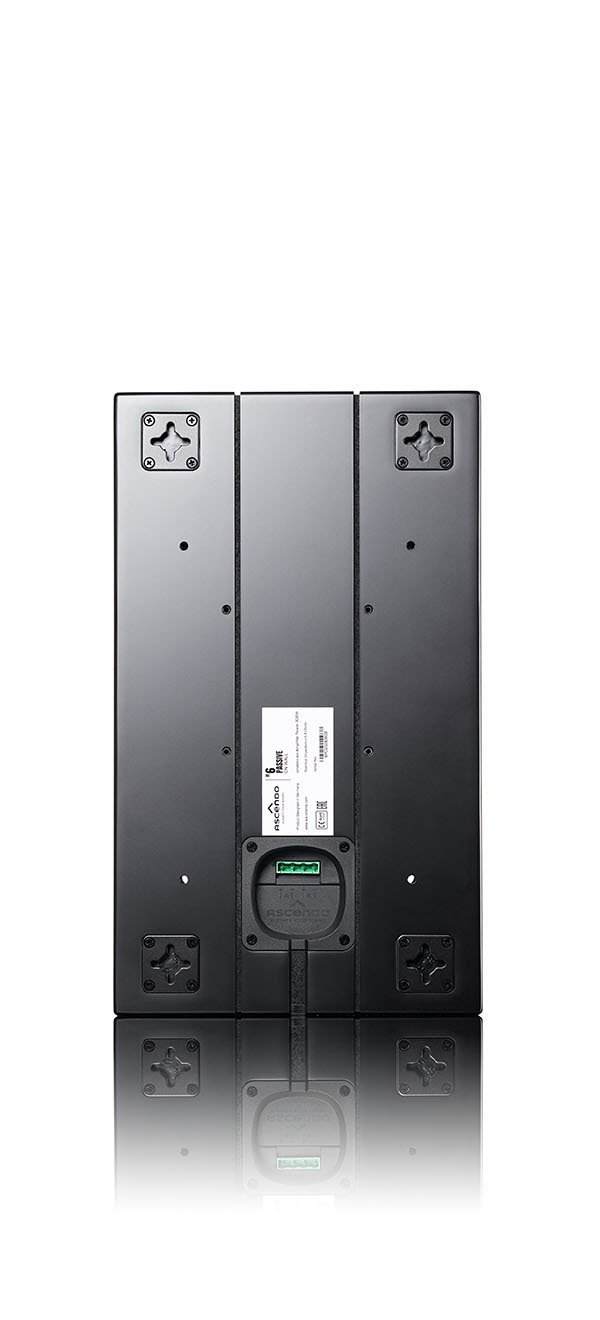

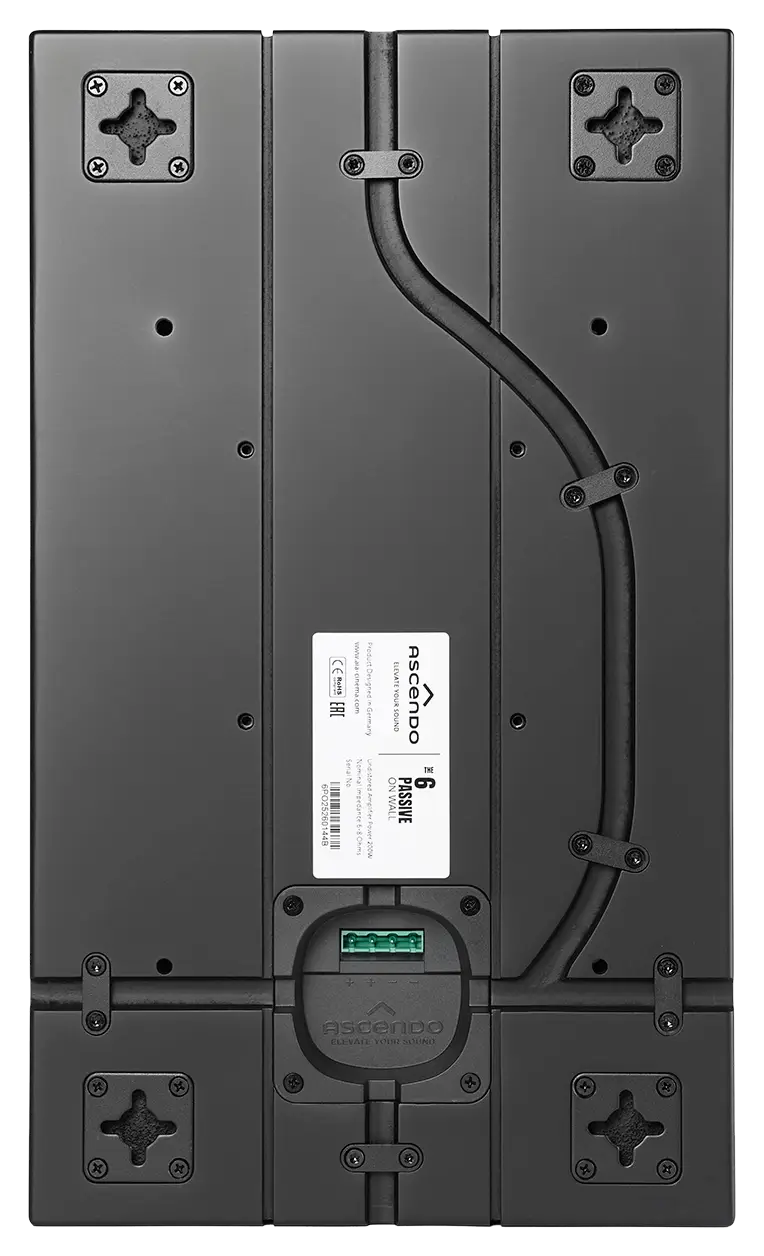

Mounting 4 x wall mount brackets for horizontal and vertical installation + VESA 100 mounting points + 4 though holes for direct wall or ceiling mounting

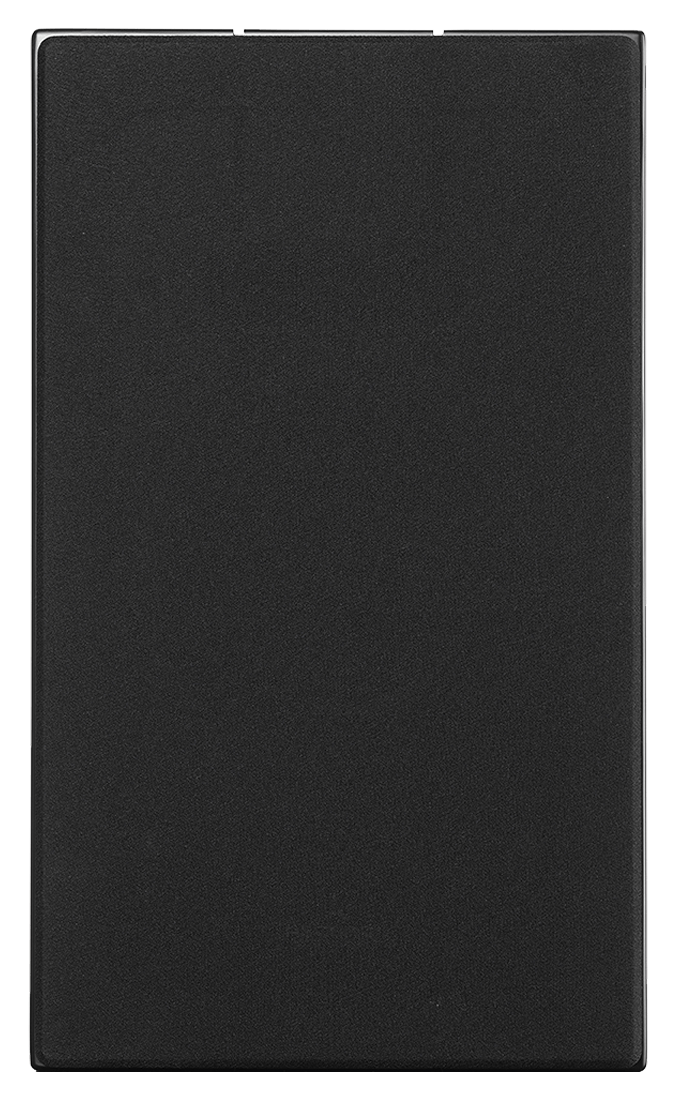

THE6 PASSIVE ON WALLl is supplied with a front cover as standard

Technical modifications subject to change without further notice | Technische Änderungen vorbehalten
